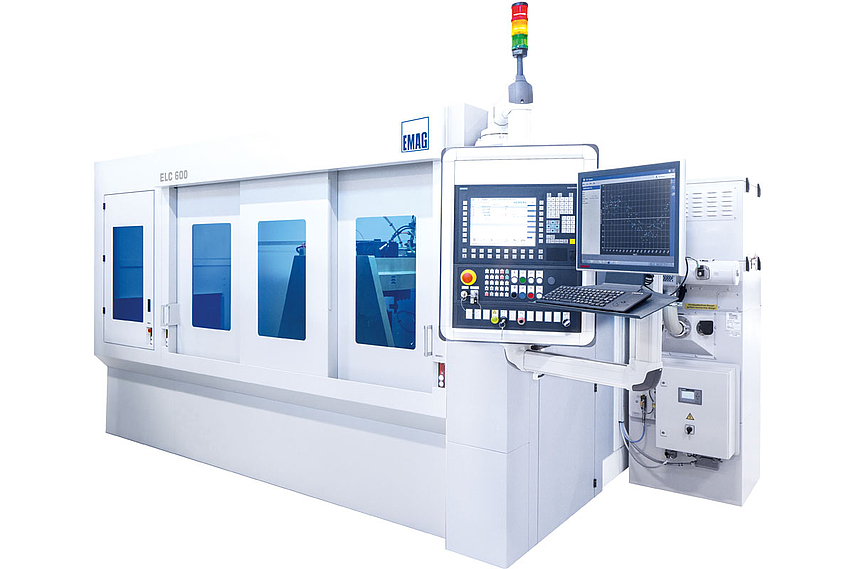

Emag elc 600 | 3-Axis Laser Welding SystemAvailable
Save
Share
Emag
To be updated
Condition: New
Scale: Production
Status: Ready-to-Ship
Ships From: USA
Product Description
Summary
The Emag elc 600 is a laser welding system engineered for joining large-diameter components, with precise motion provided by three NC axes and high-powered beam delivery. Its core function is to perform high-speed laser welding of parts up to 600 mm in diameter, supporting heavy workpieces such as truck differential housings. Key differentiators include its capacity for cast steel and case-hardened steel, integrated torque testing, and automated fixture handling.
Key Capabilities
- Laser welding of components up to 600 mm diameter and 600 mm height
- Suitable for cast steel and case-hardened steel joining with deep penetration
- Accommodates up to 3 fixtures/chucks for flexible production
- Automated slide transport of components to welding position
- Integrated torque testing system for process validation
- Equipped with PRECITEC laser optics and weld quality sensors
- Controlled by SIEMENS SINUMERIK 840D sl CNC
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Max. workpiece diameter | 600 | mm |
| Max. workpiece height | 600 | mm |
| Max. solid-state laser power | 8 | kW |
| Max. welding clamping force | 100 | kN |
| Max. fixtures | 3 | |
| NC axis | 3 (XCW), opt. +2 XB, +1 W | |
| Torque testing system | 65 | Nm |
| CNC controller | SIEMENS SINUMERIK 840D sl |
