Summary

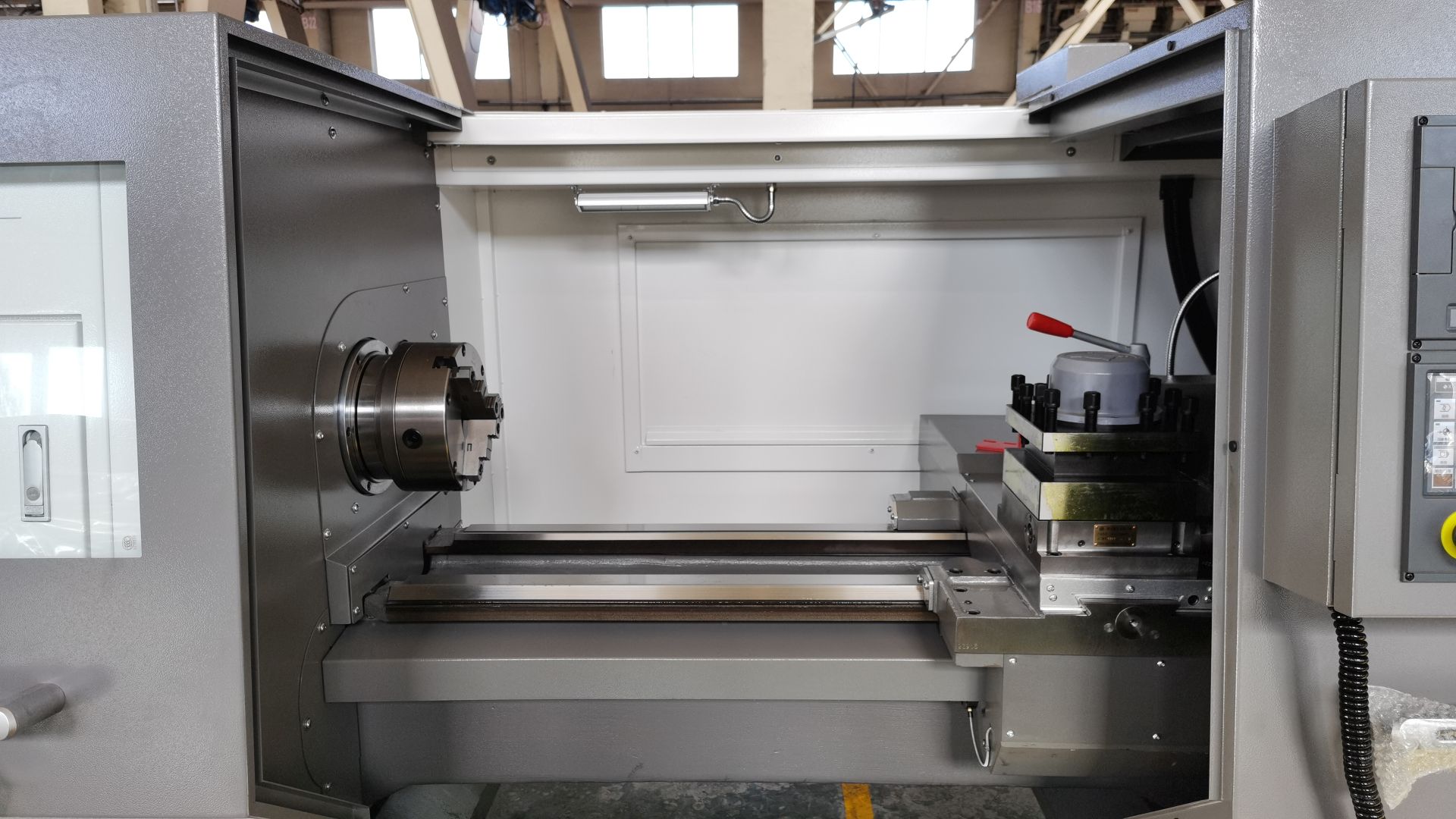

The SMTCL CAK100 200 is a CNC horizontal lathe designed for precision turning of shaft and disc-type workpieces, including complex features such as threads, arcs, cones, and both internal and external curvic surfaces. It supports high-efficiency, high-accuracy machining for both ferrous and non-ferrous metals, suitable for large batch production. Notable technical features include a maximum swing diameter over bed of 1000 mm, hydraulic 4-shift stepless spindle speeds, and machining accuracy conforming to Grade IT6~IT7.

Key Capabilities

• Turning of shafts, discs, and gyro-rotor workpieces
• Capable of cutting threads, arcs, cones, and curvic surfaces (internal/external)
• Supports ferrous and non-ferrous metals
• High batch machining suitability with accuracy up to Grade IT6~IT7
• Meets standard JB/T8324.1-1996 for horizontal NC turning machines
• Hydraulic 4-shift stepless spindle speed control
• Vertical 4-position turret for multi-tool operations

Key Specifications
