Cathode Mixing System

Save
Limited Time Offer

Yunsung F&C

South Korea
Condition: New
Scale: Production
Type: Electrode Mixing Systems
Status: Ready-to-Ship
Ships From: South Korea

Product Description

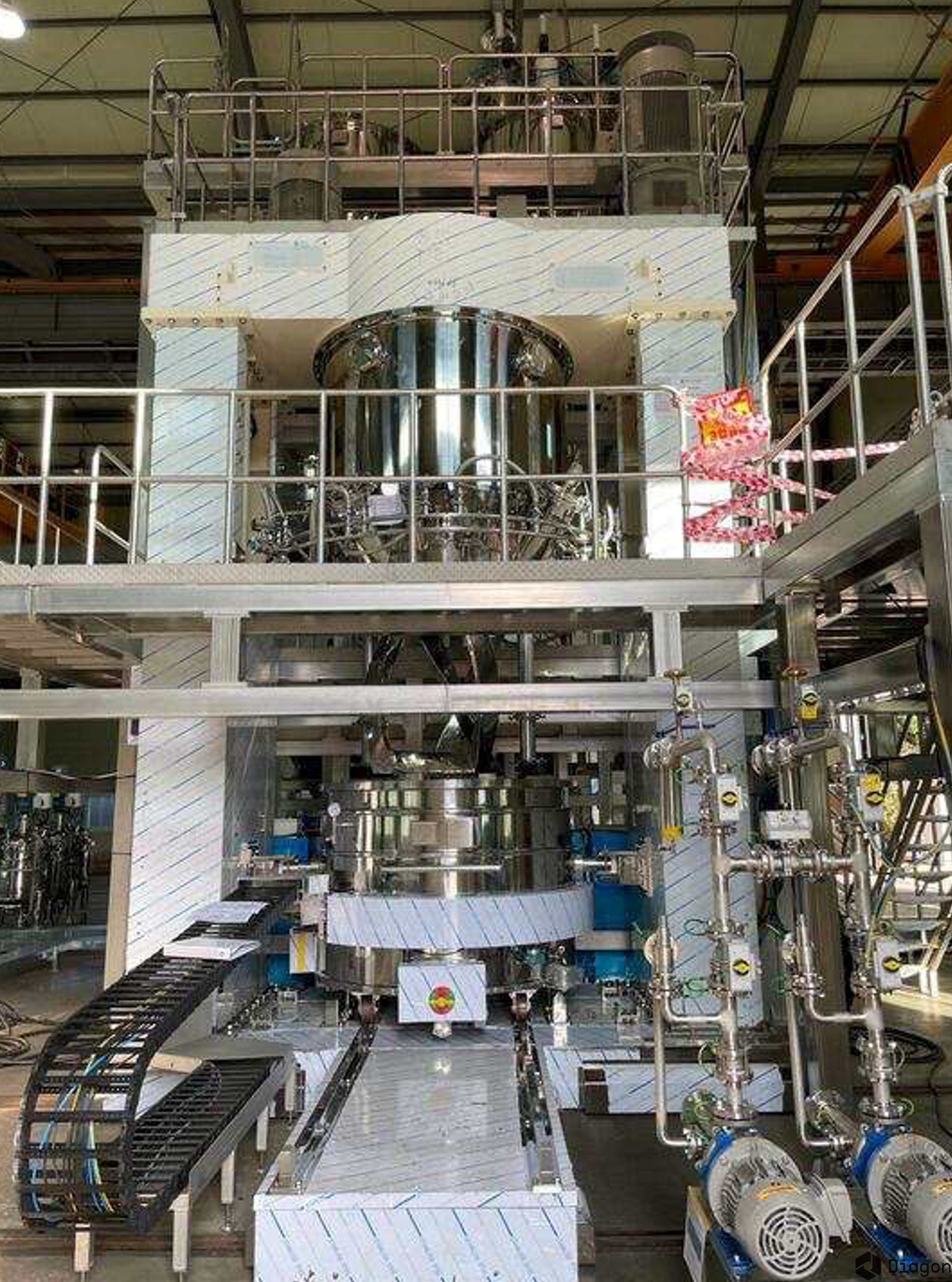

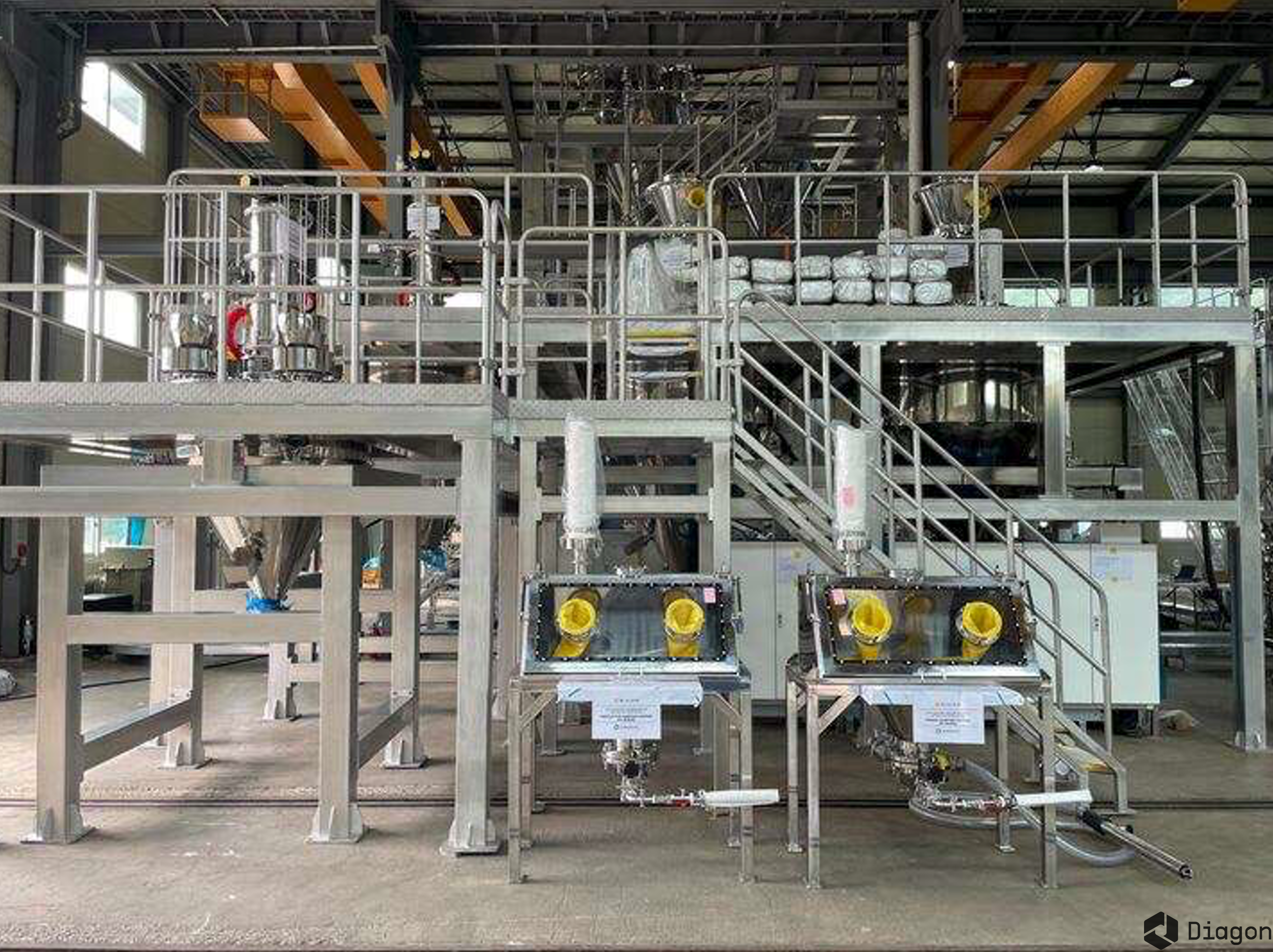

Complete production line designed for precision mixing of high-performance cathode materials, featuring temperature control and integrated solvent management.

Key Features

  • Premium 2,300L mixing line with 110kW planetary drive (1,500 RPM)
  • Temperature-controlled process (34-60°C)

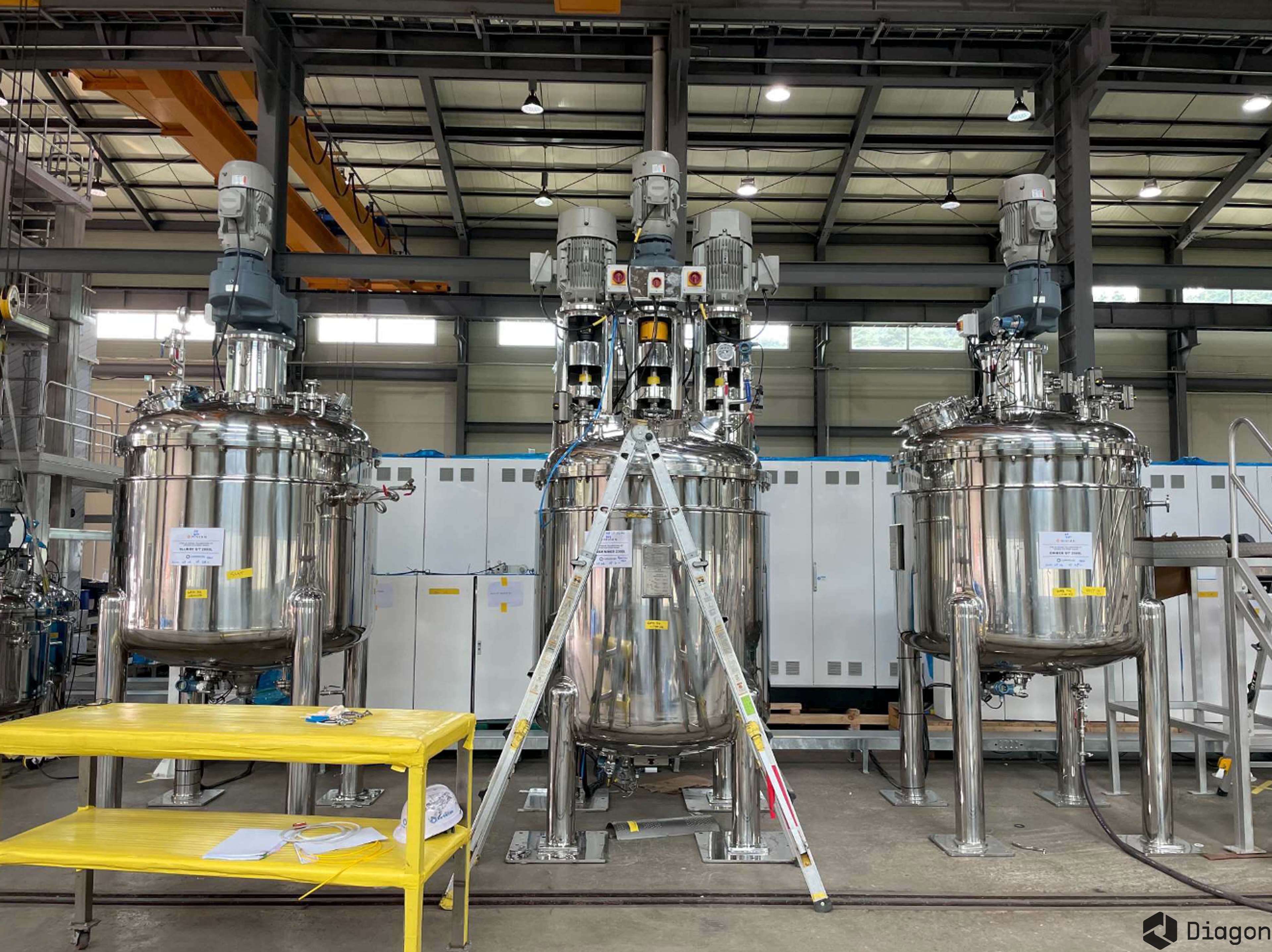

  • Advanced binder processing: 2,300L PVDF mixer with 22kW dispersion
  • Conductive additive station: 2,300L Carbon/SP mixer with precision control

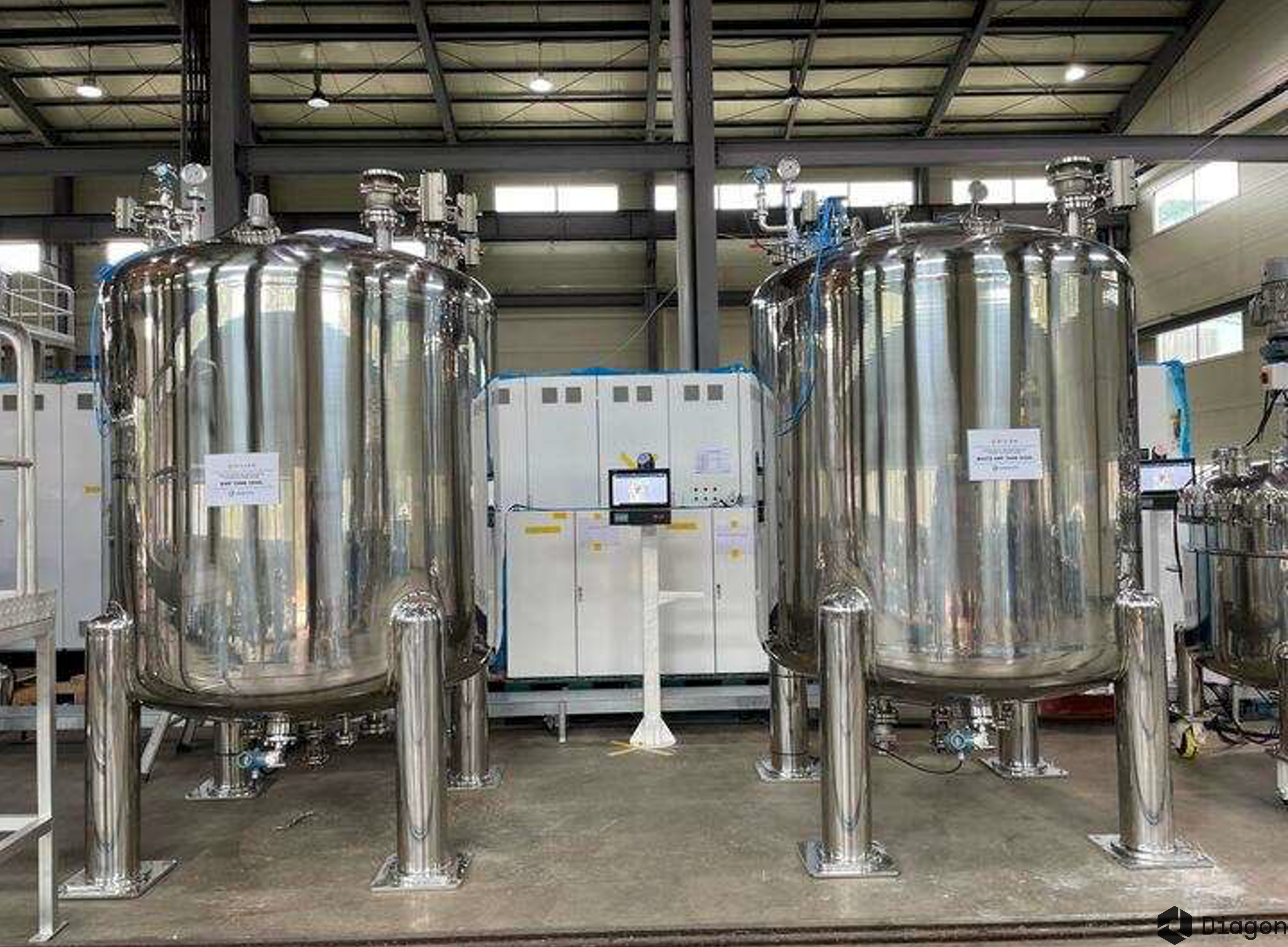

  • NMP solvent system with 5,000L primary storage
  • Flexible transport: 12 mobile tanks (400L each)

Additional Documentation (NDA Required)

  • FAT Plan
  • 2D Layout Drawing
  • BOM
  • Detailed Technical Specs

Key Technical Specifications

Carrier Tanks12 Units
Vessel MaterialsSTS304
PD Mixer Capacity2,300 L
Coater Feed Capacity1,000 L
Carrier Tanks Capacity400 L
Slurry Storage Capacity2,000 L
Solution Processing TypeBinder
Solution Processing Capacity2,300 L
Solution Processing FeaturesCooling Jacket
Solvent Storage Tank Capacity5,000 L
PD Mixer Planetary Motor Power110 kW
PD Mixer Dispersion Motor Power110 kW
Solution Processing Motor Power22 kW

Output Battery Specs

Form Factors

Prismatic

Pouch

Cylindrical

Chemical Composition

LFP: Lithium Iron Phosphate

NCA: Nickel Cobalt Aluminum

NMC/NCM: Nickel Manganese Cobalt

Machine Requirements

Electrical Standards

UL: Underwriters Laboratories (U.S. safety certification)

Control Standards

Siemens : German control standard

Technical Specifications
