Summary

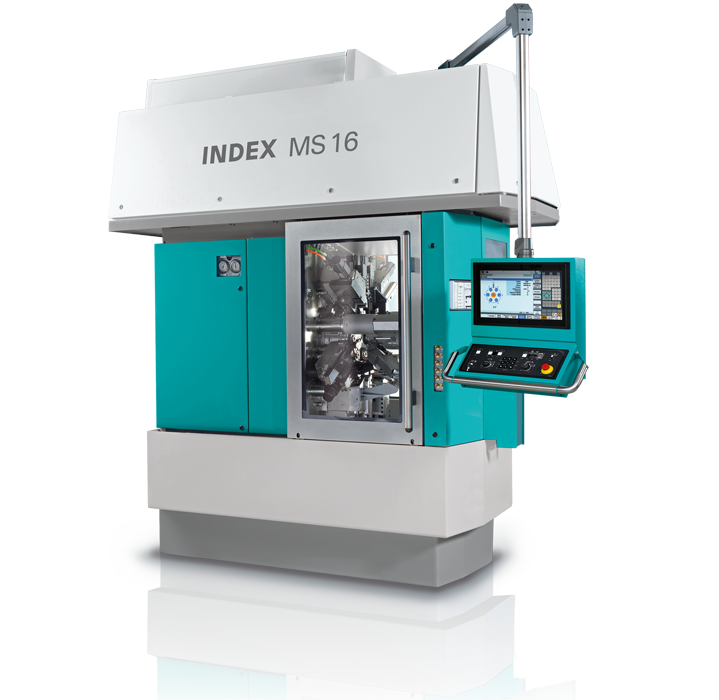

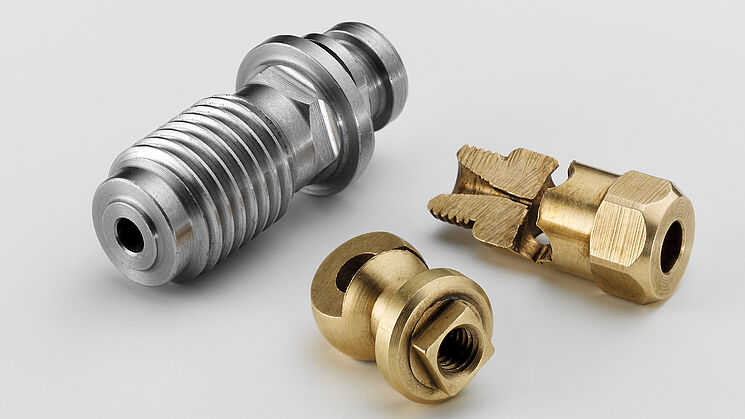

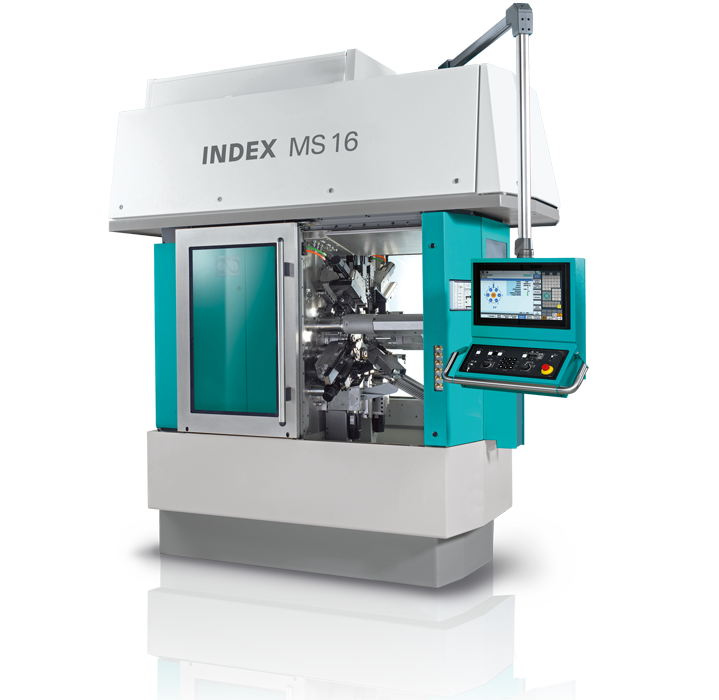

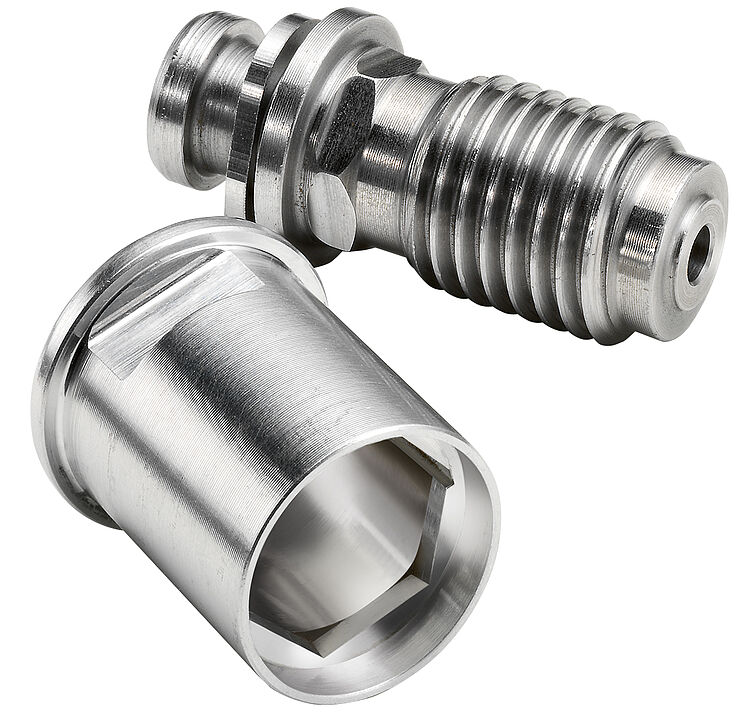

The INDEX MS16-6 / MS16-6 Plus is a CNC multi-spindle automatic lathe designed for high-volume turning, milling, and complex secondary operations on bar stock up to 22 mm diameter. The machine enables simultaneous multi-tool, multi-axis machining, including grooving, drilling, polygon turning, and rear/end-face operations, ideal for rapid production of precision-turned parts. Noteworthy features include individually driven work spindles, fast synchronous spindle for rear machining, and C-axis capability on all spindles.

Key Capabilities

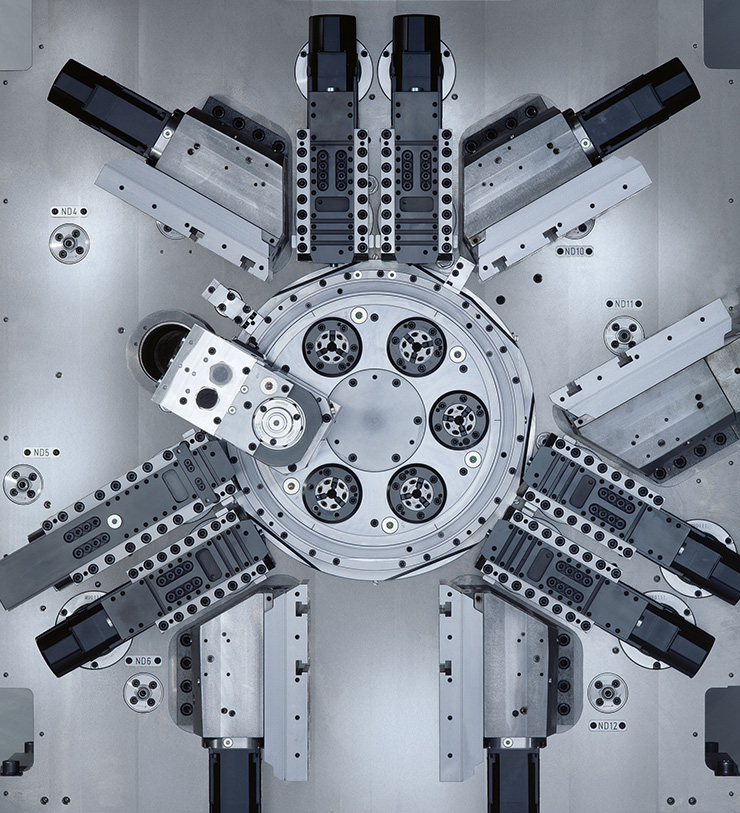

• Up to 6 independently driven work spindles with individual drives
• Maximum of 12 tool carriers with up to 2 axes per station and flexible tool station configuration
• Polygon turning, simultaneous turning and grooving operations, and live-tool milling with C-axis interpolation
• Rear end machining enabled by dynamic synchronous spindle with extended CNC cutoff slide
• Tooling flexibility with internal, external, stationary, or live tool stations; W-serration quick tool setup
• Integrated Siemens S840D sl CNC and 18.5" multi-touch interface
