Summary

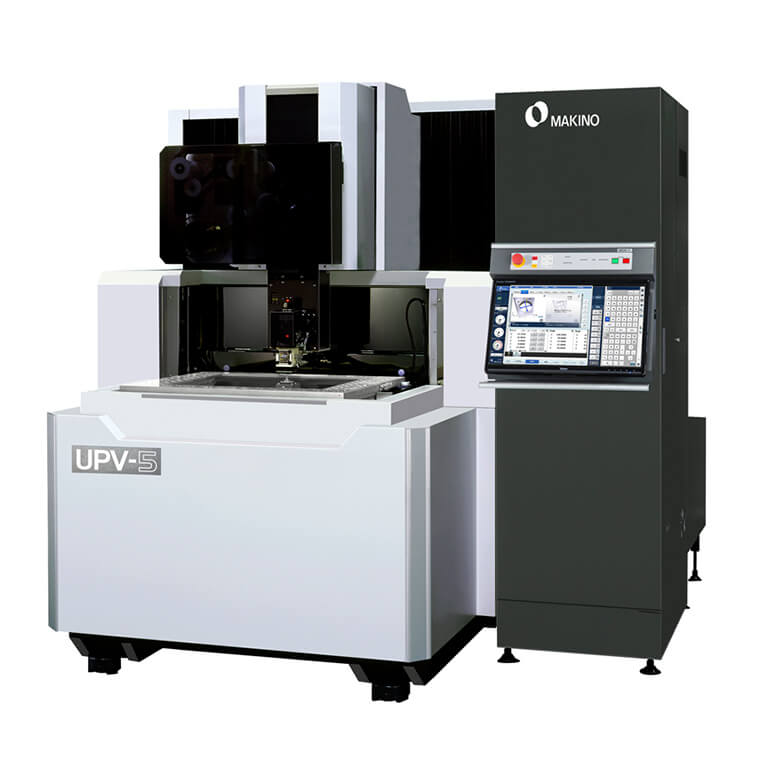

The Makino UPV 5 is an ultra-precision Wire EDM machine using oil as the dielectric medium, designed for applications requiring extremely fine surface finishes and superior metallurgical quality. It delivers precision machining of fine-blanking, precision stamping die components, and cutting tool inserts, enabled by its stationary table and advanced machine construction tolerances. Unique features include a 3-sided rise and fall work tank, integrated fire suppression for unattended operation, and oil dielectric compatibility with sensitive materials such as PCD diamond and carbide.

Key Capabilities

• Enables surface finishes down to 0.02µmRa (1µinRa) using oil dielectric
• Eliminates oxidation and material degradation on steel, PCD diamond, and carbide
• Supports unattended operation with integrated fire suppression
• Accommodates large and heavy workpieces
• Offers 3-sided rise and fall tank for improved accessibility and automation integration
• Compatible with optional 3D Setup Probe and Rotary Table for advanced part handling
