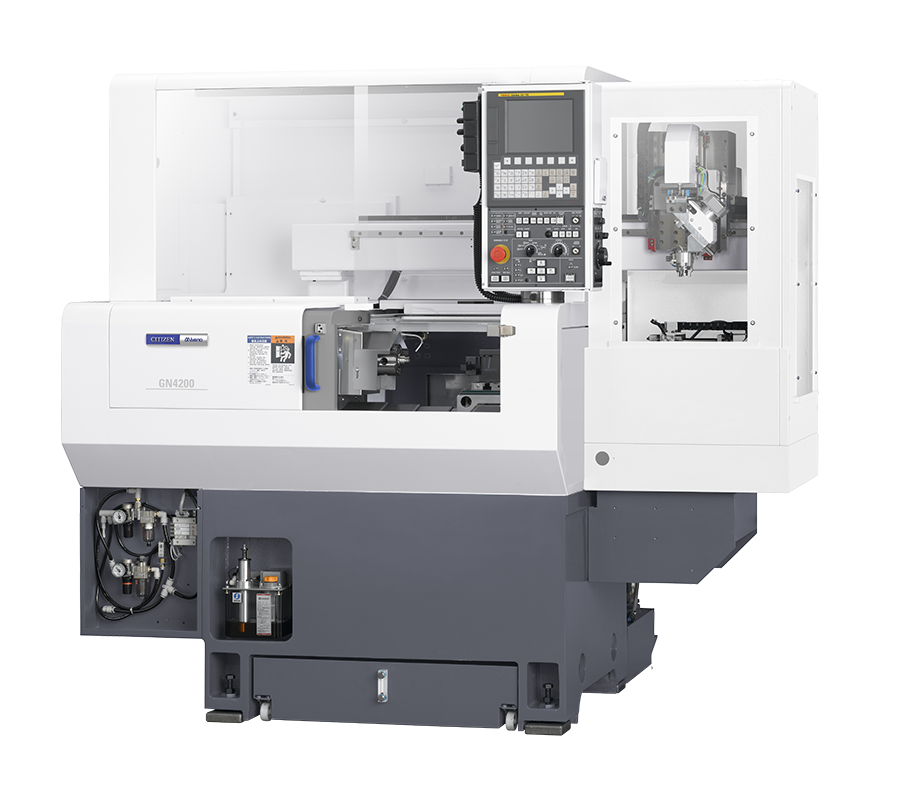

Citizen Machinery Miyano GN-4200 | Horizontal CNC Turning CenterAvailable
Save
Share
Citizen Machinery
To be updated
Condition: New
Scale: Production
Status: Ready-to-Ship
Ships From: USA
Product Description
Summary
The Miyano GN-4200 is a horizontal CNC turning center designed for precise turning and machining operations on small to medium-sized workpieces. Its expanded X-axis slide and high spindle speed support diverse fixed and rotary tooling configurations for flexible part processing. Notably, short axis travel and rapid acceleration minimize cycle times for production-oriented applications.
Key Capabilities

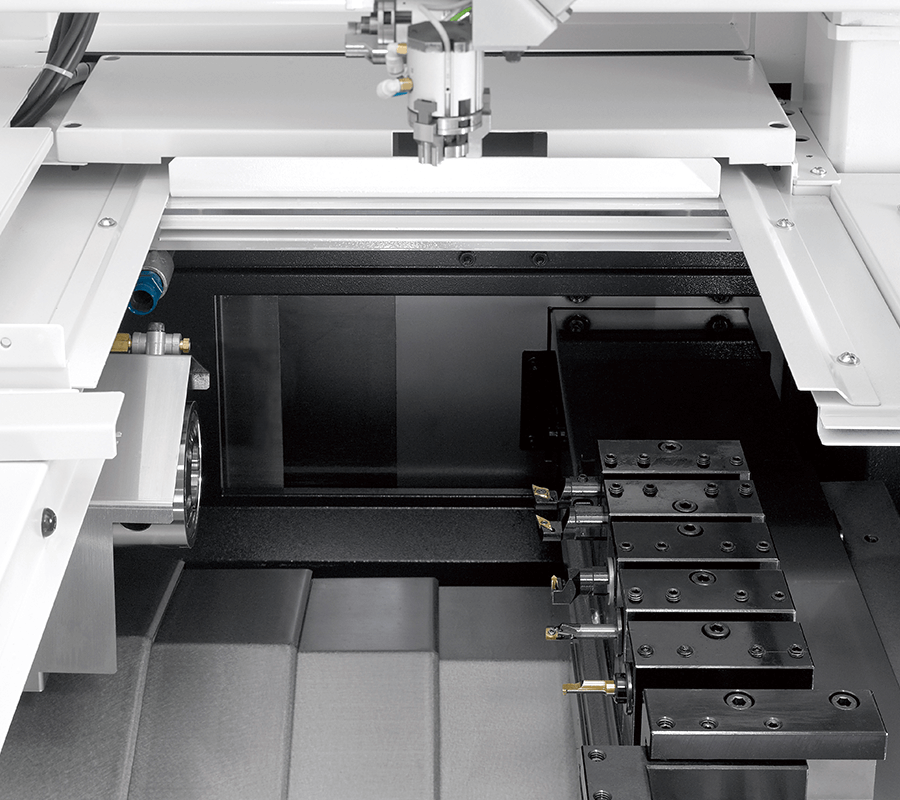

- Supports a wide range of fixed and rotary tools via an enlarged X-axis slide stroke
- Enables faster cycle times with quick axis acceleration and short travel distances
- Compatible with fine precision air chucks and pull type collet chucks
- Capable of machining up to 45mm diameter and 80mm length
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Maximum Collet Chuck Diameter (Air Chuck) | 45 | mm |
| Maximum Collet Chuck Diameter (Pull Type) | 40 (Stationary 35) | mm |
| Maximum Machining Length | 80 | mm |
| Main Spindle Speed Range | 8000 | min-1 |
| Spindle Motor (15min./Cont.) | 5.5/3.7 | kW |
| X Axis Slide Stroke | 300 | mm |
| Z Axis Slide Stroke | 250 | mm |
| Machine Height | 1695 | mm |
| Floor Space | 1350 × 1325 | mm |
| Machine Weight | 1500 | kg |
