Okuma
Japan
Condition: New
Scale: Production
Status: Ready-to-Ship
Ships From: USA
Product Description
Summary

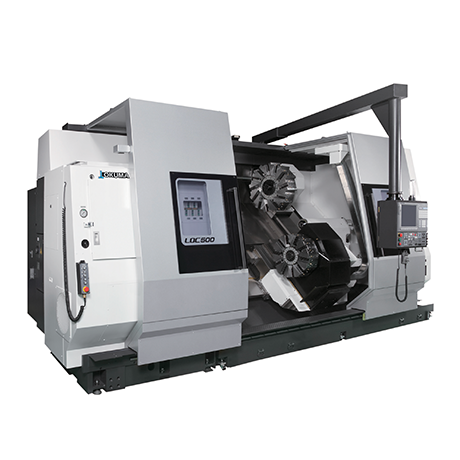

The Okuma LOC500 is a CNC lathe engineered for machining large-diameter oil country pipe, with a specific emphasis on high-precision threading for oil field applications. It features multiple spindle bore options to accommodate oversized workpieces and incorporates a custom Threading Suite for variable speed threading and harmonic spindle control. The machine is targeted at demanding oil industry requirements for both throughput and thread accuracy on big pipes.
Key Capabilities
- Large-diameter pipe machining with three interchangeable spindle bore sizes
- Precision threading enabled by Okuma's Oil Field "Threading Suite" with harmonic spindle control
- Variable speed threading supporting tight infeed and cutting increment synchronization
- Rapid traverse rates on both X and Z axes for increased throughput
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Max Turning Diameter | 25.98 (⌀660) | in (mm) |
| Spindle Nose Type | 142: JIS A2-11, 185: JIS A2-15, 275: JIS A2-20 | - |
| Speed Range | 11~2,000 / 10~1,500 / 10~1,000 | rpm |
| Standard Power | 50/40, 60/50, 74/60 or 37/30, 45/37, 55/45 | hp or kW |
| Rapid Traverse X/Z | 591 / 787 (15 / 20) | ipm (m/min) |
