Summary

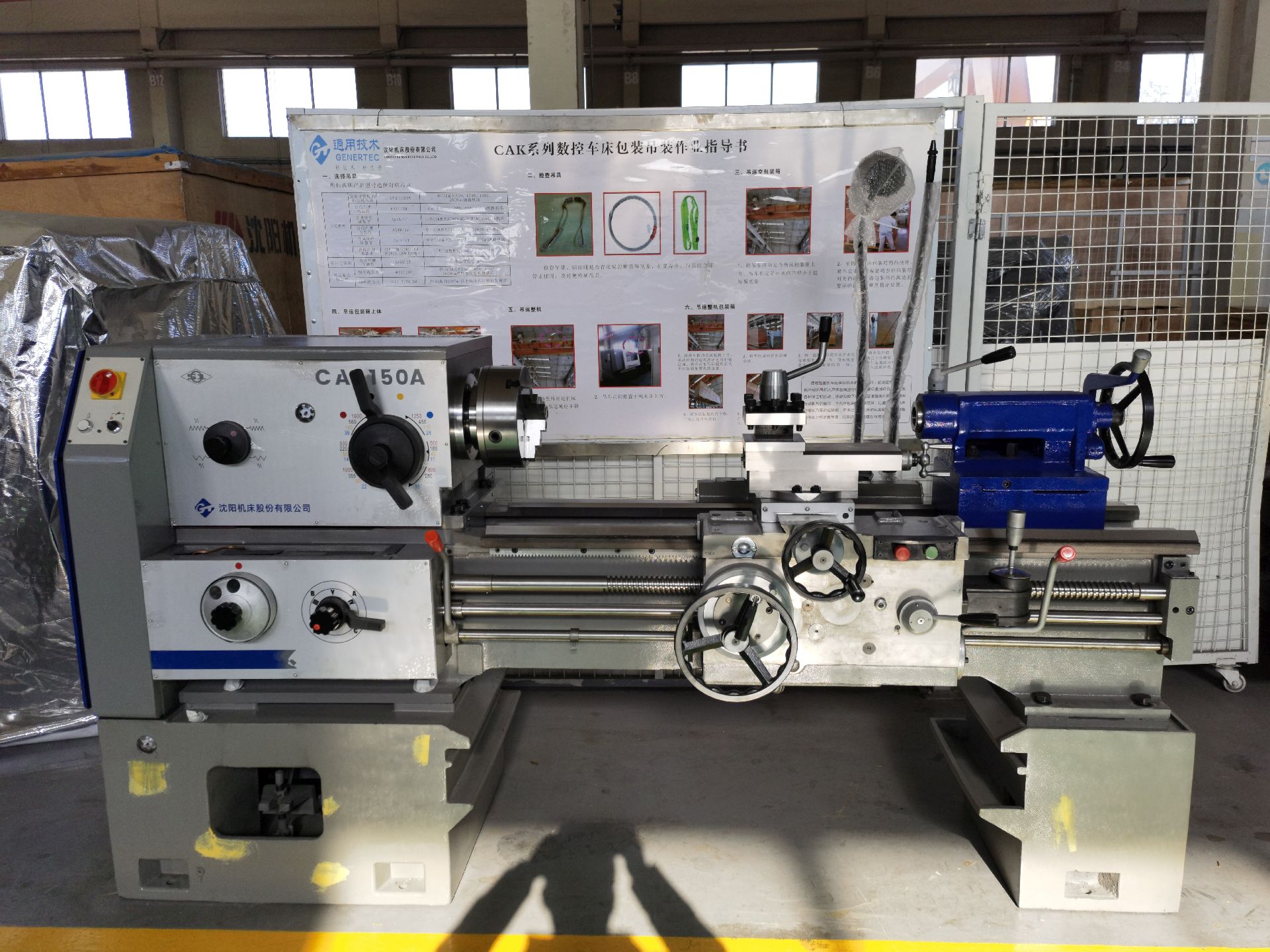

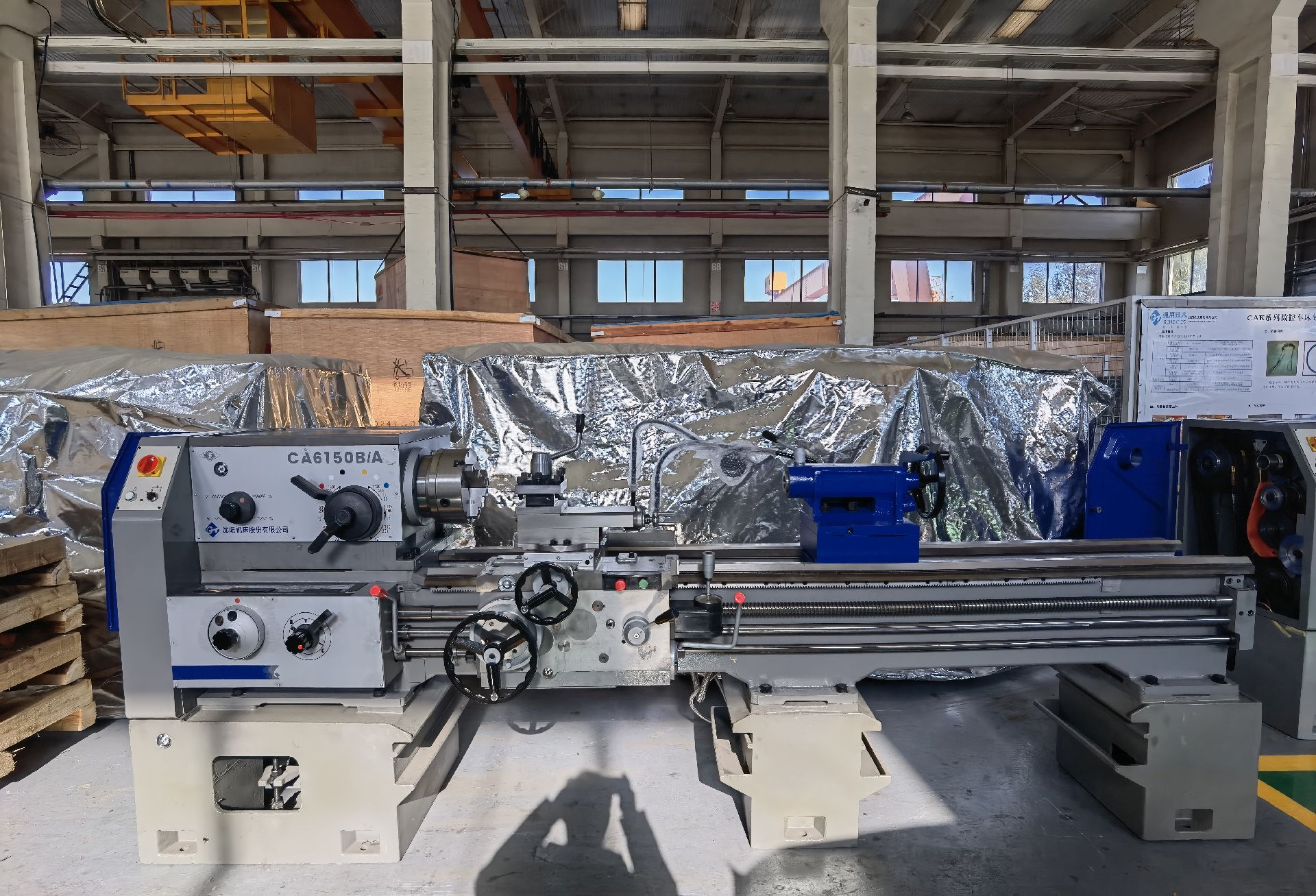

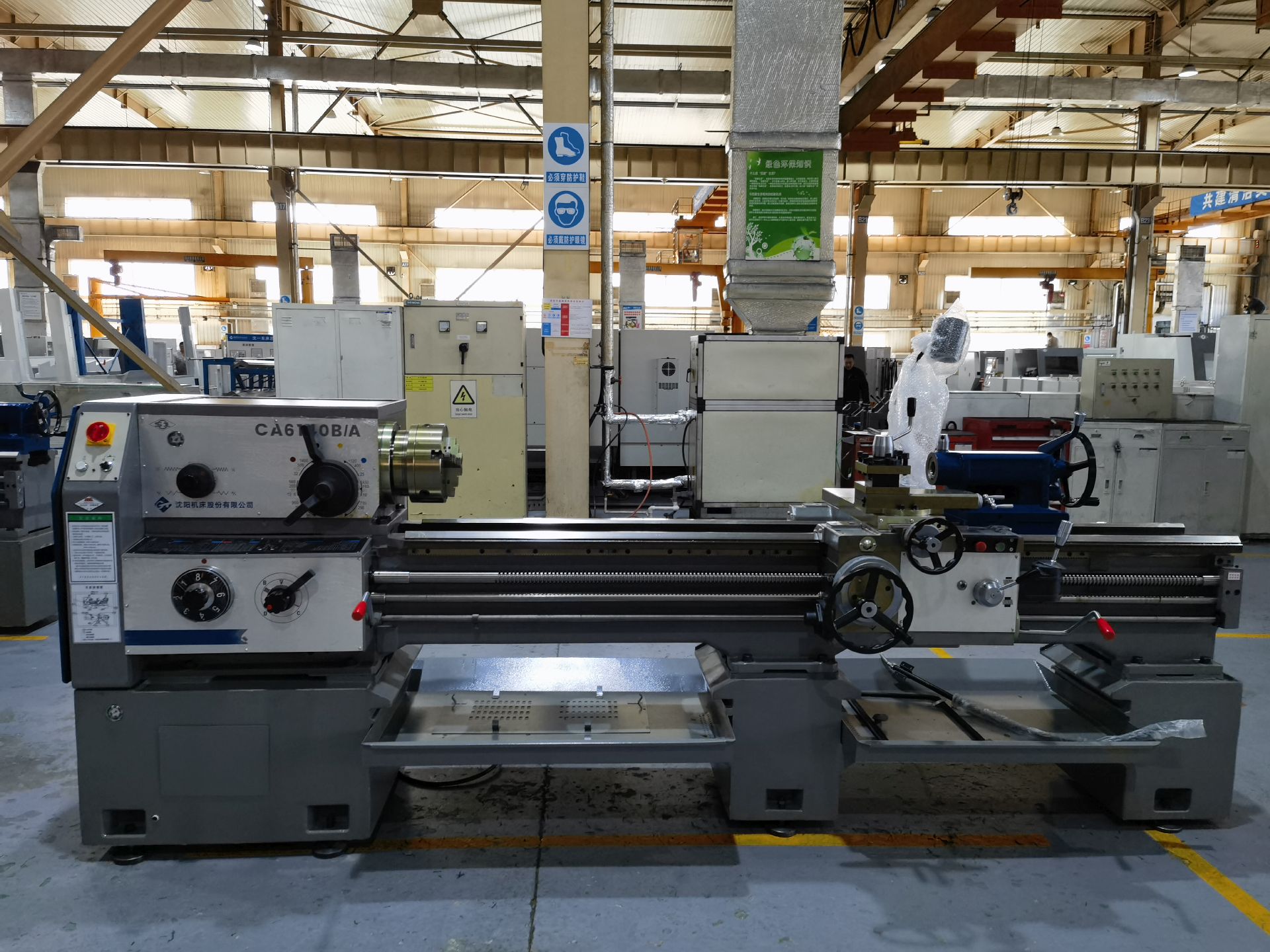

The SMTCL A6150B/A 1000mm is a manual saddle lathe engineered for turning operations on cylindrical, conical, and irregularly shaped workpieces. It performs a diverse range of machining tasks, including threading (metric, inch, module, and pitch), boring, reaming, and oil groove creation while supporting materials such as steel, cast iron, and nonferrous metals. Distinctive characteristics include its capability for high-accuracy (IT7 level) precision machining and a manual braking system for enhanced operational control.

Key Capabilities

• Executes internal/external turning, facing, and contouring on both standard and irregular parts
• Supports single-setup threading for metric, inch, modular, and radial-pitch threads
• Performs drilling, reaming, and oil groove machining in one machine
• Processes steel, cast iron, and nonferrous metals
• Achieves dimensional accuracy up to IT7 tolerance standard
• Manual braking system integrated for immediate operational safety
• Accommodates parts up to 1000 mm in length with up to 500 mm swing over bed

Key Specifications

| Parameter | Value | Unit |

| Maximum Swing Over Bed | 500 | mm |

| Maximum Workpiece Length | 1000 | mm |

| Spindle Speed Range (Co-rotation) | 10–1400 | r/min |

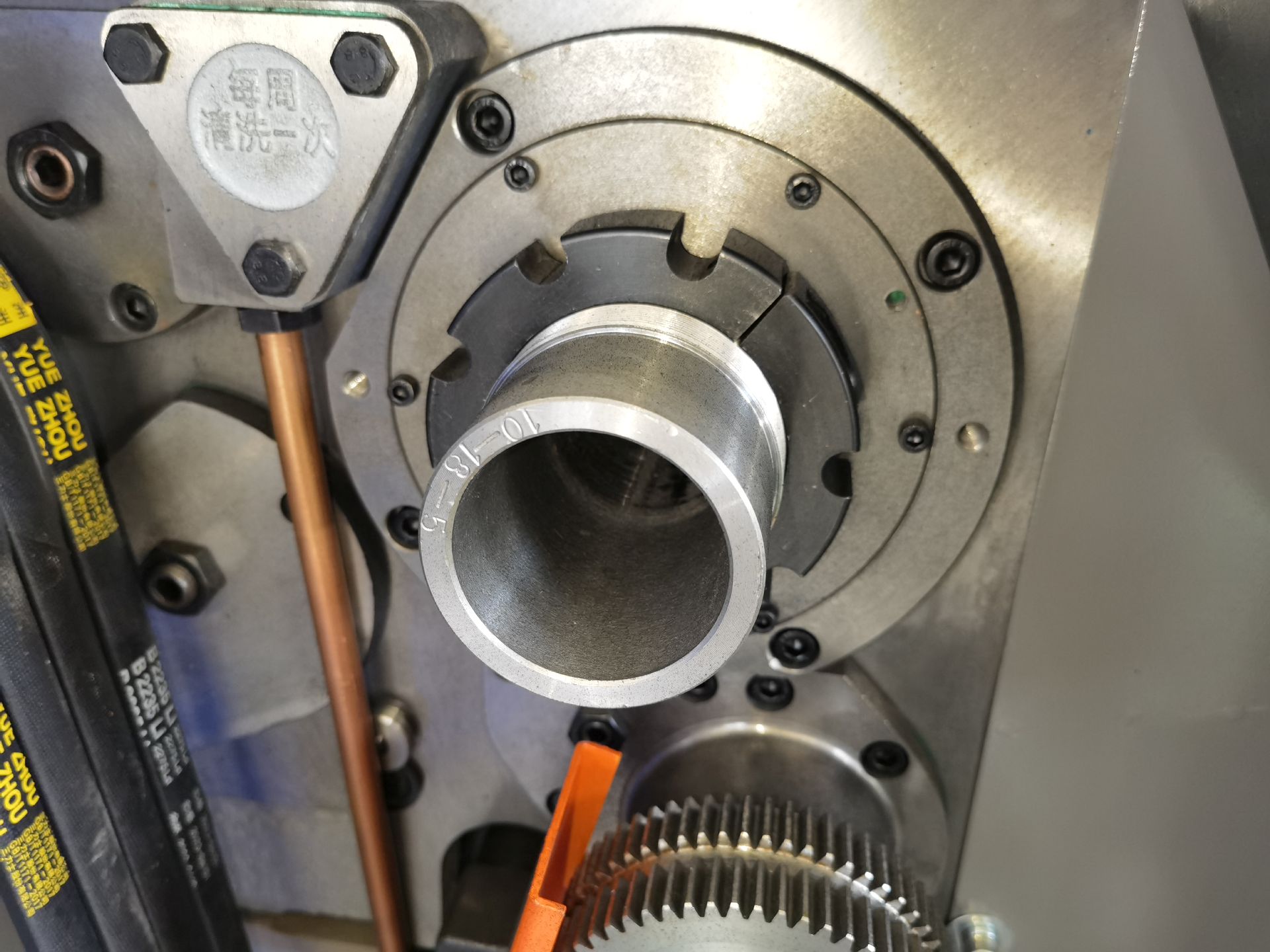

| Spindle Bore Diameter | 80 | mm |

| Main Motor Power | 7.5 | kW |

| Machine Net Weight | 2140 | kg |

| Achievable Tolerance | IT7 | |

| Supported Thread Types | Metric, Inch, Modular, Pitch | |
