Summary

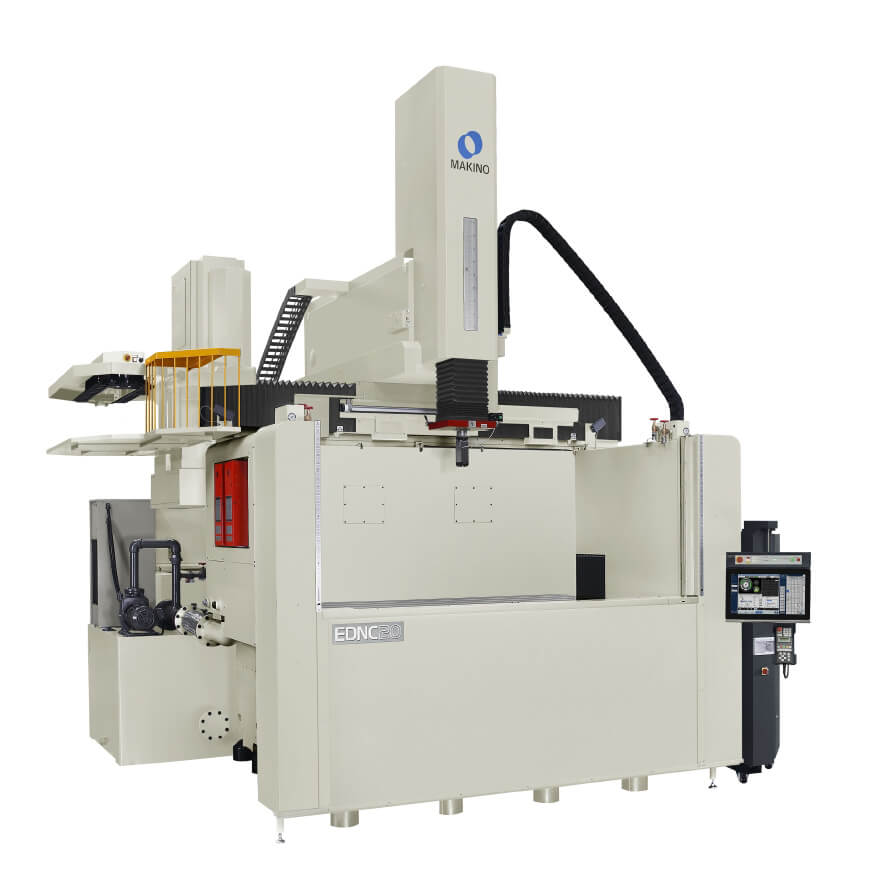

The Makino EDNC20 is a CNC sinker-type electrical discharge machine designed for machining complex cavities and features in electrically conductive materials using controlled spark erosion. It delivers high-precision results with large workpiece capacity and rapid high-speed Z-axis jump motions, aimed at reducing cycle times in mold and die making or similar applications. Notable characteristics include a space-saving stationary table, advanced Hyper-i control system with user-friendly interface, and options for automatic tool changing and extended axis strokes.

Key Capabilities

• Sinker EDM machining for detailed cavities in conductive materials
• High-speed Z-axis jump motion up to 20 m/min over 800 mm stroke (HS-Rib configuration)
• Programmable rise-and-fall front door and stationary worktable for improved part access and setup flexibility
• Supports workpiece sizes up to 2,800 x 1,800 mm and weights up to 10,000 kg
• Hyper-i control system with 24” touchscreen and advanced support tools
• Options for automatic tool changer (ATC) with 8, 16, or 32 station capacities
• Integrated dielectric reservoir in machine base for improved thermal stability
