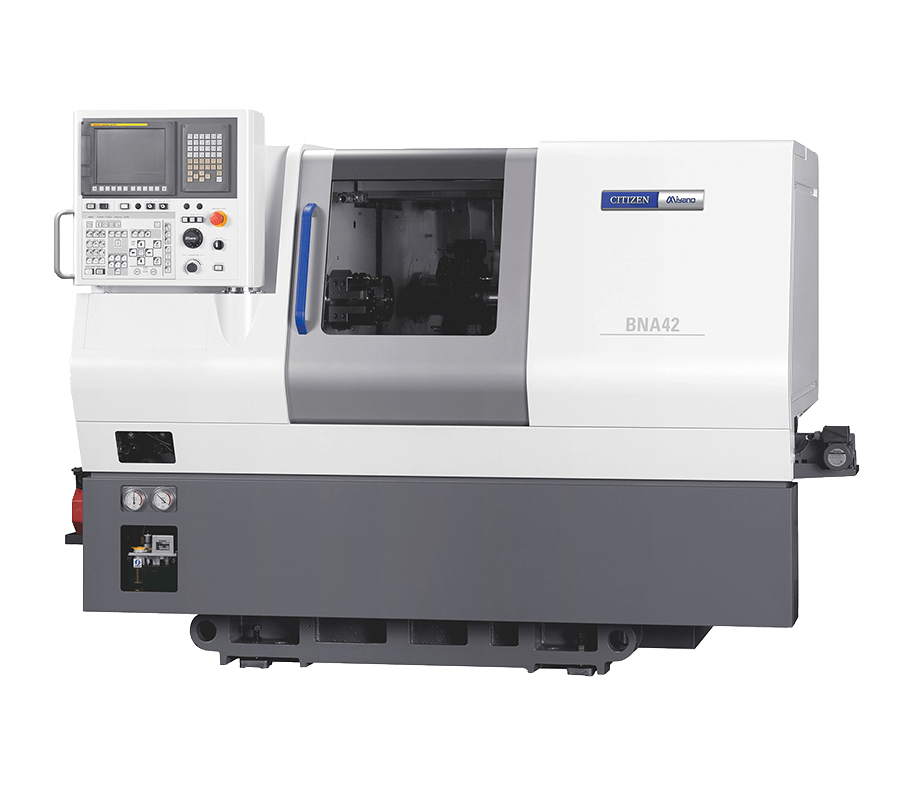

Citizen Machinery Miyano BNA-42DHY3 | Dual-Spindle CNC Turning Center with Sub-Turret and Live ToolingAvailable
Save
Share
Citizen Machinery
To be updated
Condition: New
Scale: Production
Status: Ready-to-Ship
Ships From: USA
Product Description
Summary
The Miyano BNA-42DHY3 is a dual-spindle CNC turning center designed for simultaneous left/right machining with a main turret and compact sub-turret. It performs turning, milling, and complex component processing on bar stock up to 42mm diameter with overlap machining enabled by double turning tools. Notable features include half-indexing, multi-position live tooling support, and a combination of 8-station and 6-station turrets for high tool flexibility.
Key Capabilities

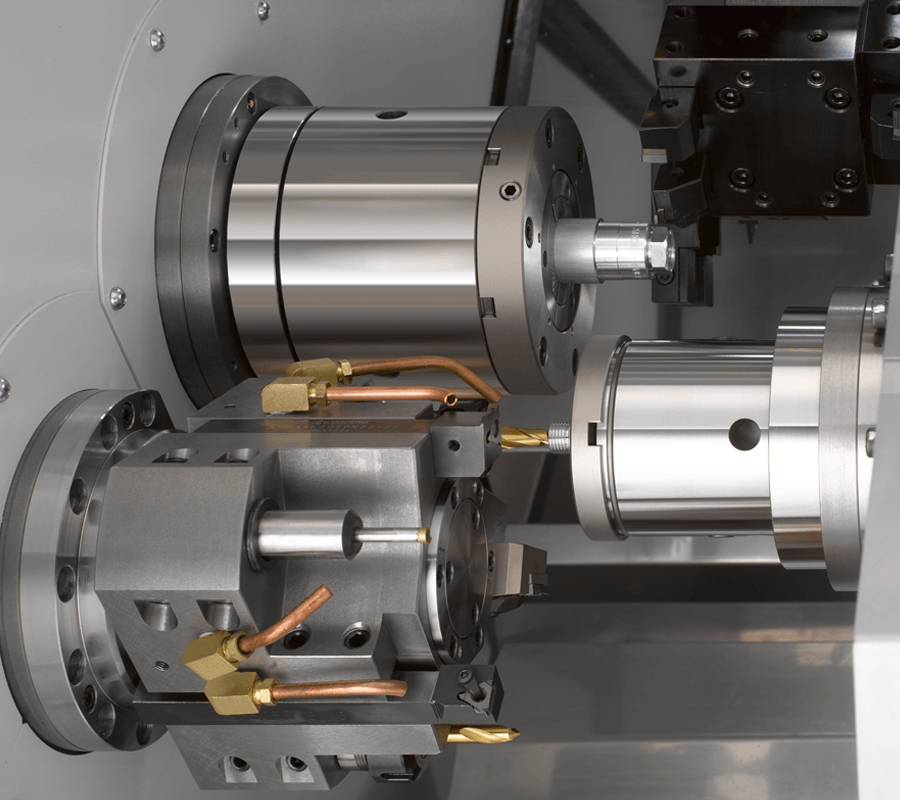

- Simultaneous left/right machining with main and sub-turrets
- Overlap processing enabled by double turning tools to reduce cycle time
- Live tooling (revolving tools) on the main turret for milling and drilling

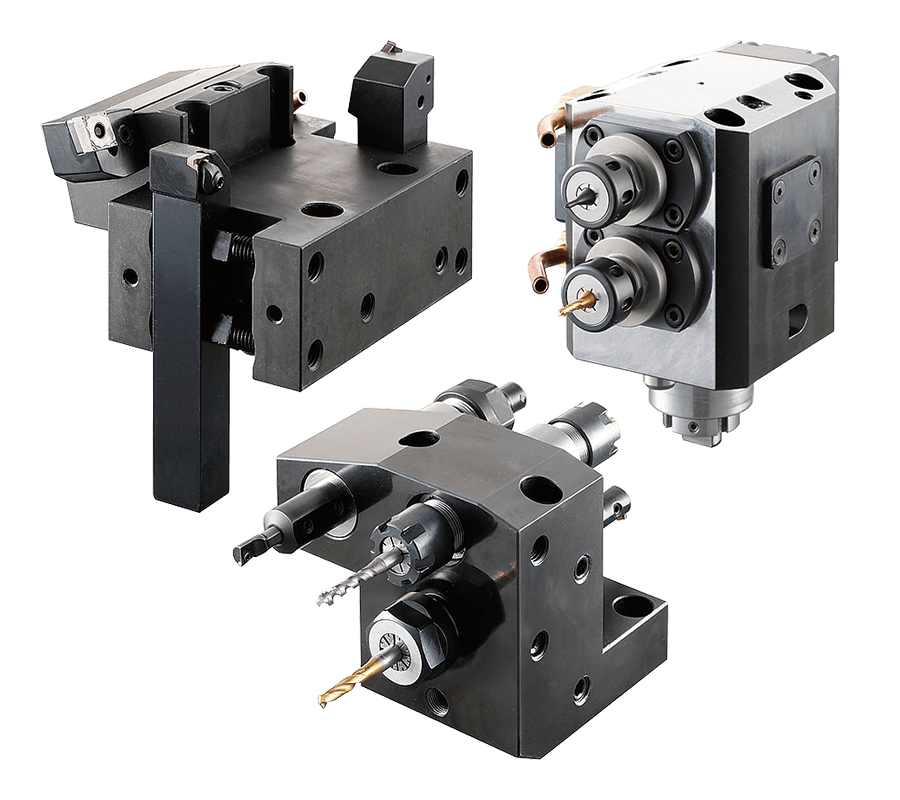

- Half-indexing mechanism and versatile tool holder supporting complex revolving tools at one position
- Bar machining up to 42mm diameter; maximum part length 100mm
- Dual spindles with independent speed ranges and motors
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Maximum Bar Work Diameter (SP1/SP2) | 42 / 34 | mm |
| Maximum Machining Length | 100 | mm |
| Spindle Speed Range (SP1/SP2) | 60–6,000 / 50–5,000 | min⁻¹ |
| Number of Turret Stations (SP1/SP2) | 8 / 6 | positions |
| Maximum Live Tool Speed | 5,000 | min⁻¹ |
| Y-Axis Stroke | ±35 | mm |
| Machine Weight | 3,100 | kg |
