Summary

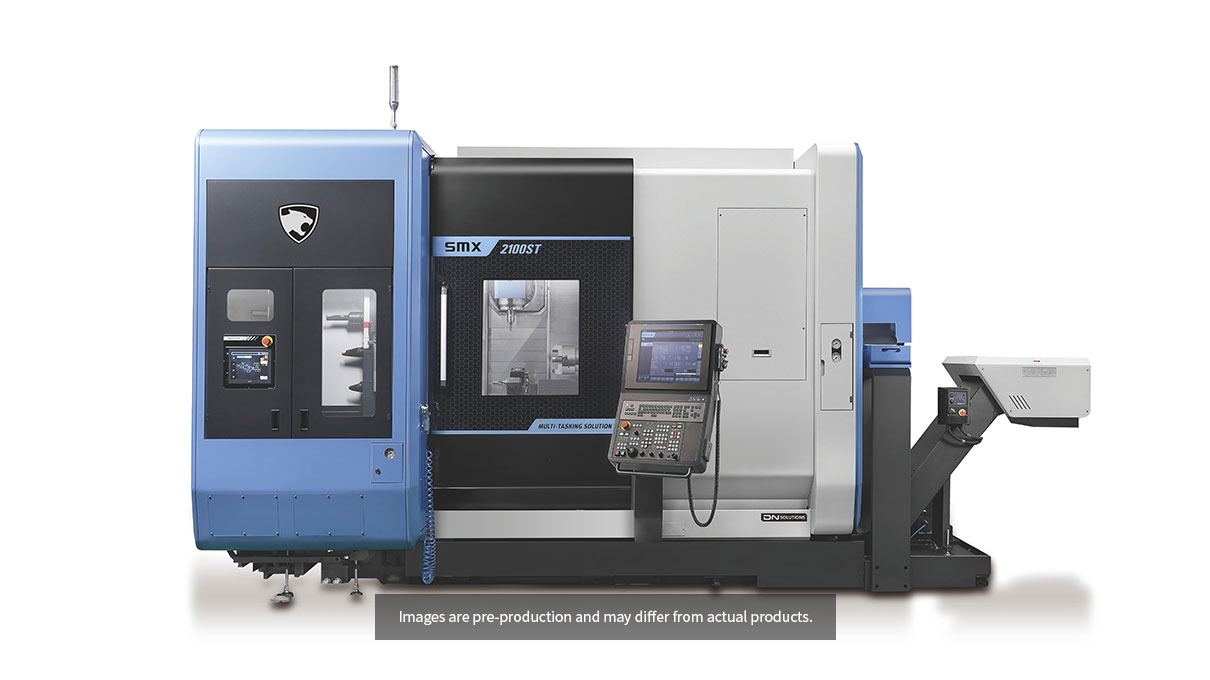

The Dn Solutions SMX2100S is a multi-axis mill-turn center designed for complex, high-precision machining by integrating turning and milling functions in a single setup. It combines dual spindles, a B-axis milling head, and a lower turret to support advanced multi-tasking operations on workpieces up to 600 mm in diameter and 1040 mm in length. Precision control of the B-axis and C-axis, combined with minimized thermal displacement, supports sustained accuracy during long production runs.

Key Capabilities

• Dual spindles enable simultaneous machining on both sides of a workpiece
• B-axis milling function for complex angles and multi-face machining
• Lower turret expands simultaneous cutting and tool configuration options
• Orthogonal machine structure optimizes machining space
• 0.0001-degree precision control for B-axis and C-axis positioning
• Automated tool changes via servo-driven 12-station turret and accessible magazine

Key Specifications
