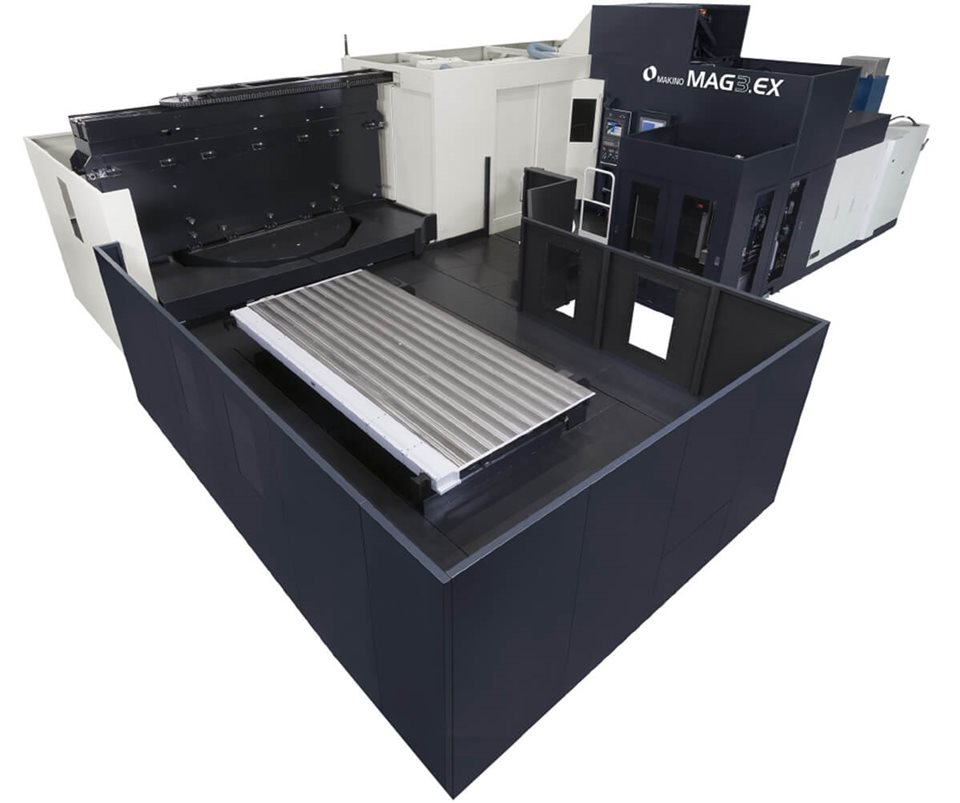

Makino MAG3.EX | 5-Axis Horizontal Machining CenterAvailable
Save
Share
Makino
To be updated
Condition: New
Scale: Production
Status: Ready-to-Ship
Ships From: USA
Product Description
Summary
The Makino MAG3.EX is a 5-axis horizontal machining center engineered for high-productivity contouring, specifically targeting complex aluminum monolithic parts production. It combines an ultra-high speed 33,000 rpm spindle with large-axis travels and full simultaneous 5-face machining to minimize setups and process variation. The machine is equipped to support extended unattended operation via automatic pallet transfer and storage integration.
Key Capabilities
- Five-axis simultaneous machining with ±110° A-axis and full 360° C-axis rotation
- High-speed 33,000 rpm spindle rated at 130 kW, optimized for high metal-removal in aluminum
- Large work envelope supporting workpieces up to 4,000 x 1,500 x 750 mm and 3,000 kg
- Automatic pallet transfer and storage system compatibility for extended unattended production
- Rapid traverse rates up to 62,700 mm/min (X-axis)
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| X-Axis Travel | 4,000 | mm |
| Y-Axis Travel | 1,500 | mm |
| Z-Axis Travel | 1,000 | mm |
| A-Axis Rotation | ±110 | ° |
| C-Axis Rotation | 360 | ° |
| Spindle Speed | 33,000 | rpm |
| Spindle Power | 130 | kW |
| Max Workpiece Size | 4,000 x 1,500 x 750 | mm |
| Max Payload | 3,000 | kg |
| ATC Capacity | 120 (180 optional) | |
| Max Tool Diameter | 100 | mm |
| Max Tool Weight | 8 | kg |
| Rapid Traverse (X) | 62,700 | mm/min |
