Summary

The SMTCL PBC 130m is a CNC table type horizontal boring and milling machine designed for precision machining operations such as boring, milling, drilling, reaming, tapping, and countersinking of large, heavy workpieces. Featuring a T-shaped single column structure, multi-axis control, and a CNC rotary table, it enables multi-face and multi-axis machining in a single setup for improved accuracy and workflow efficiency. The integration of a SIEMENS 828D CNC system supports both linear and circular interpolation, accommodating complex workpiece geometries and machining strategies.

Key Capabilities

• Performs boring, milling, drilling (expanding and reaming), tapping (rigid threading), and countersinking operations
• 5-axis machining with X, Y, Z, W (spindle travel), and B (rotary table) axes

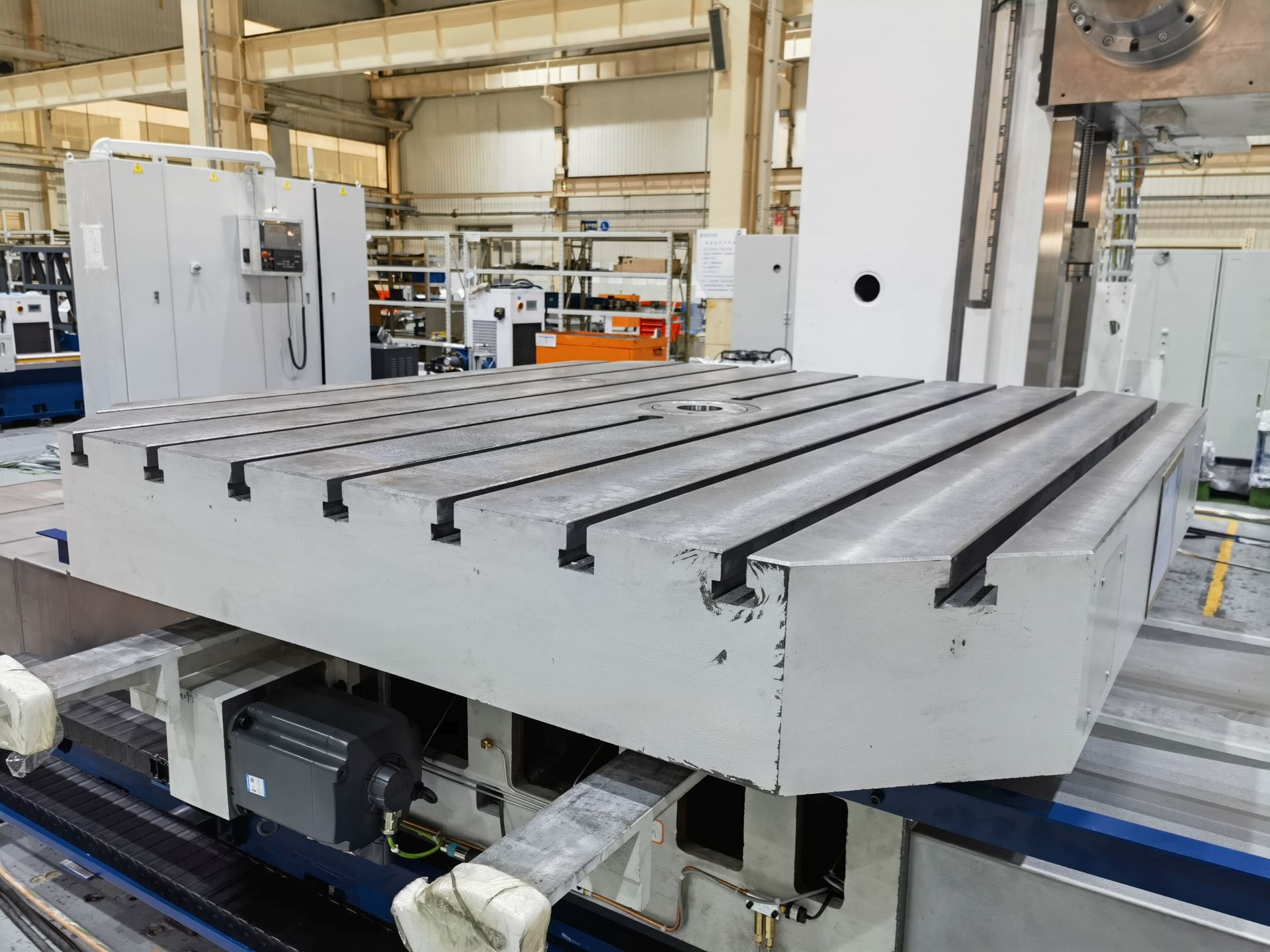

• CNC rotary workbench enables 360° rotation for multi-face machining in a single fixture
• Suitable for processing large and heavy components up to 10 tons
• SIEMENS 828D CNC system provides advanced interpolation and control

Key Specifications
