Summary

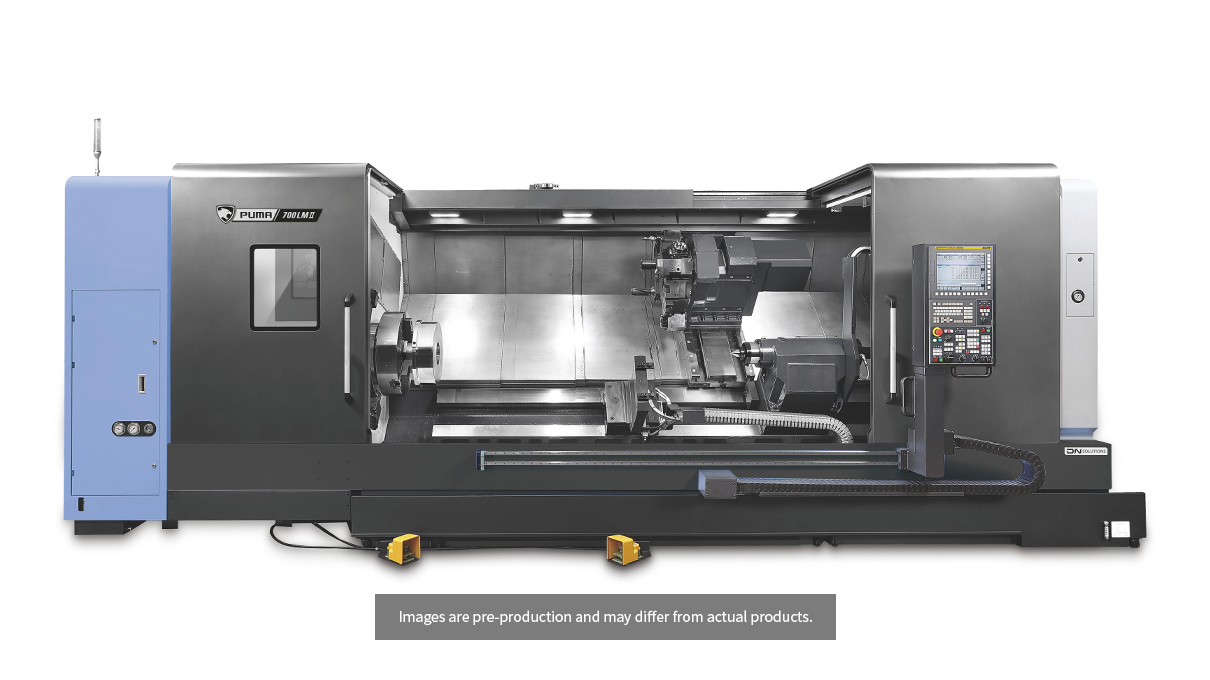

The Dn Solutions PUMA 800XL II is a heavy-duty horizontal CNC lathe designed for turning large and complex components. It supports single-setup machining of parts up to 5 meters in length and 900 mm in diameter, with a maximum spindle through hole of 375 mm for large diameter pipes. The machine is equipped with a 200 mm Y-axis stroke to facilitate complex operations in applications such as oil and gas, aerospace, construction, and shipbuilding.

Key Capabilities

• Handles turning of large workpieces up to 5,050 mm in length and 900 mm in diameter
• Accommodates large diameter pipes with 375 mm spindle through hole
• 200 mm Y-axis stroke for enhanced machining capability in a single setup
• Rapid traverse speeds up to 12 m/min (X-axis) and 10 m/min (Z-axis)
• 12-position tool turret supports complex machining cycles

Key Specifications
