Summary

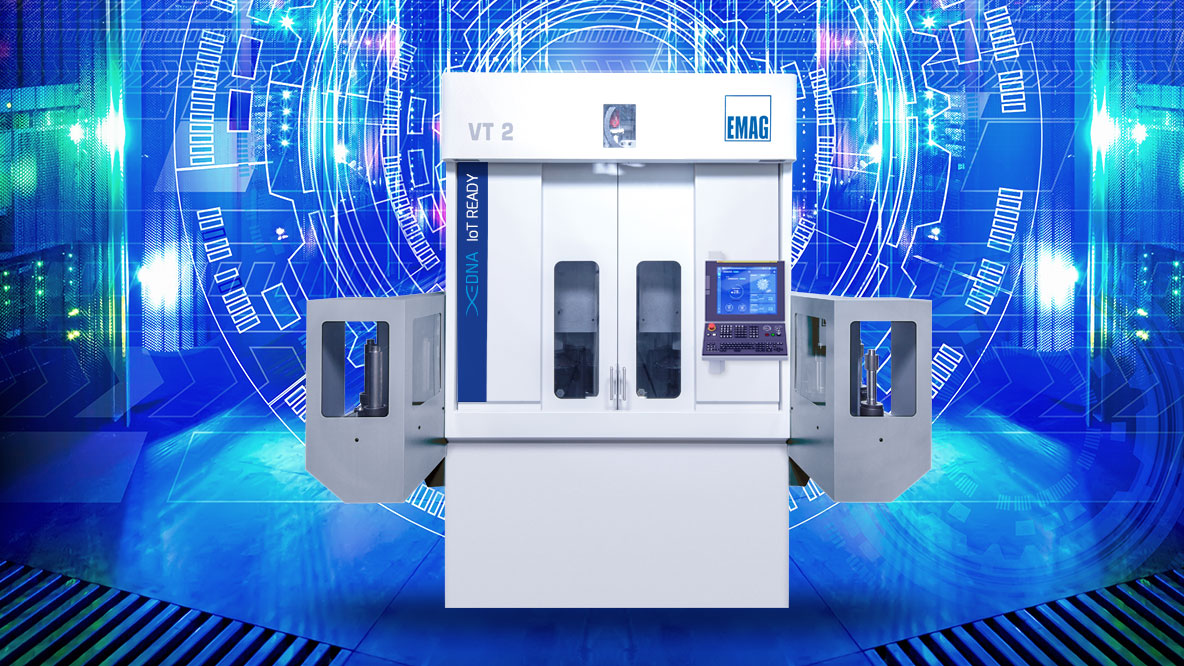

The Emag vt 2 is a vertical 4-axis CNC turning center specifically engineered for efficient and precise shaft machining. Its modular design integrates dual tool turrets and a fully automated part handling system, enabling rapid machining cycles for medium to large component batch sizes. The machine features vertical orientation, two-sided process capability, and IoT-ready connectivity for process monitoring.

Key Capabilities

• Four-axis vertical turning with dual tool turrets, each supporting eleven tools, plus integrated gripper stations for part handling
• Automated loading and unloading via turret-mounted grippers, enabling reduced changeover times
• Supports machining shafts and similar workpieces up to 400 mm in length and 100 mm in diameter
• Integrated IoT-ready functionality for production data analysis and downtime reduction
• Capable of both turning and driven-tool operations

Key Specifications

| Parameter | Value | Unit |

| Workpiece diameter, max. | 100 | mm |

| Workpiece length, max. | 400 | mm |

| Chuck diameter, max. | 160 | mm |

| X-axis travel | 332 | mm |

| Z-axis travel | 625 | mm |

| Main spindle power (40%/100% duty) | 21/14.1; 28/19 | kW; hp |

| Main spindle torque (40%/100% duty) | 130/90; 96/66 | Nm; ft-lb |

| Main spindle speed, max. | 6000 | rpm |

| Swing diameter | 210 | mm |

| Gripper diameter, max. | 63 | mm |
