Summary

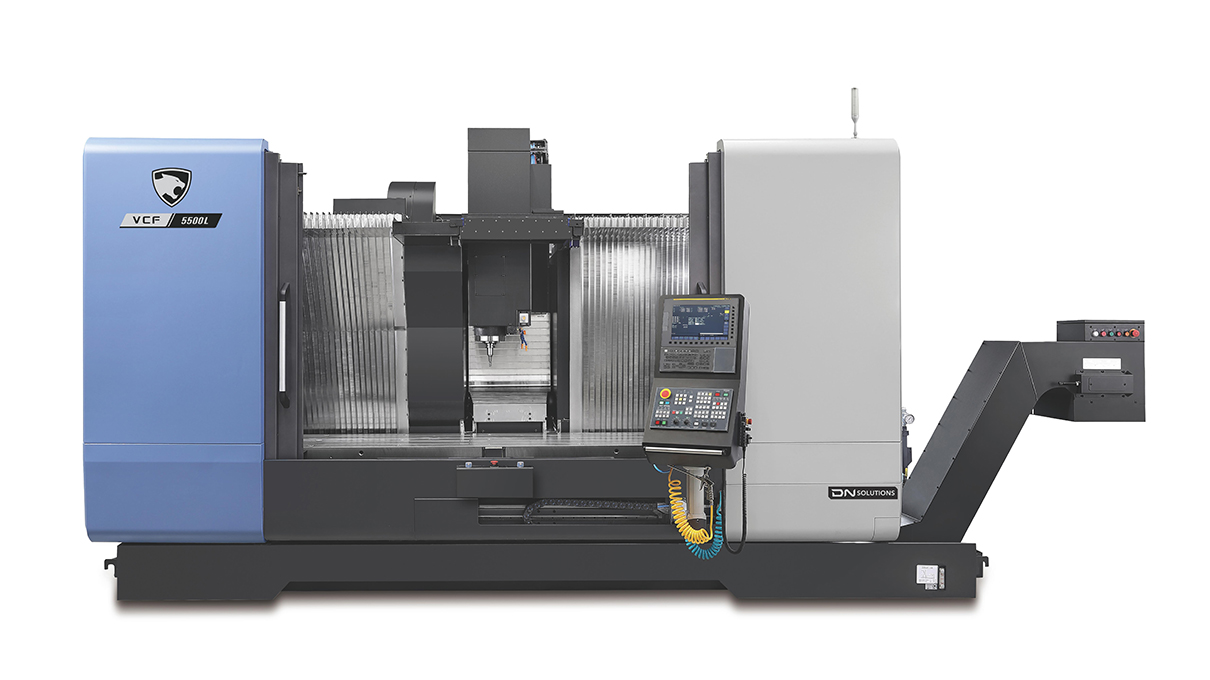

The Dn Solutions VCF 5500L is a traveling column vertical machining center designed for multi-zone, multi-axis milling operations. Its core function is to perform precision material removal using simultaneous 3- to 5-axis machining, enabled by a high-rigidity B-axis structure and extended X-axis travel. Differentiators include a roller gear cam B-axis, rotary table, and large work envelope for processing oversized or multiple parts in a single setup.

Key Capabilities

• Simultaneous 3- to 5-axis milling via roller gear cam B-axis
• Extended X-axis travel for multi-zone machining (2200 mm)
• Integrated rotary table and center partition for versatile fixturing
• Pick-up magazine with 30 tool stations
• Accommodates workpieces up to 2000 kg

Key Specifications

| Parameter | Value | Unit |

| X-Axis Travel Distance | 2200 | mm |

| Y-Axis Travel Distance | 550 | mm |

| Z-Axis Travel Distance | 510 | mm |

| Maximum Workpiece weight | 2000 | kg |

| Table Length | 2500 | mm |

| Table Width | 580 | mm |

| Number of Tool Stations | 30 | ea |

| Max. Spindle Power | 18.5 | kW |

| Max. Spindle Torque | 117.8 | N·m |

| Rapid Traverse (XYZ) | 42 | m/min |
