Okamoto ACC-ST Series | Hydraulic Surface GrinderAvailable
Save
Share
Okamoto
To be updated
Condition: New
Scale: Production
Status: Ready-to-Ship
Ships From: USA
Product Description
Summary

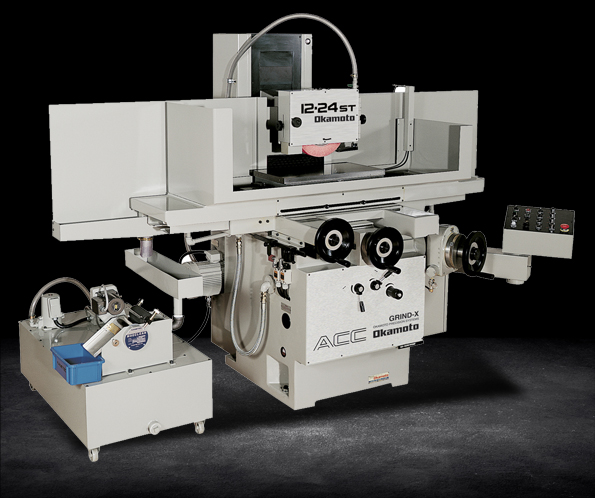

The Okamoto ACC-ST Series is a hydraulic surface grinder designed for precision planar material removal and surface finishing. Its core function is to grind flat surfaces using a reciprocating table and automatic hydraulic controls, supporting fine downfeed increments for high-accuracy grinding. Differentiators include full contact Double Vee slideway guidance and gravity feed automatic lubrication, supporting accuracy and reliability in repeated operations.
Key Capabilities
- Reciprocating hydraulic table movement with automatic parking
- Full contact Double Vee ways for enhanced tracking and accuracy
- Automatic downfeed adjustment as fine as 0.0001 inch
- Gravity feed automatic lubrication system
- Pendant-mounted solid state control for operational convenience
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Table Working Area | 8–16 x 21.6–33.5 | in |
| Max Grinding Wheel to Table Distance | 25.6–37.5 | in |
| Grinding Wheel Size | 8 x 1 x 1.25 to 12 x 1.5 x 5 | in |
| Grinding Wheel Spindle Power | 2–5 | hp |
| Weight | 3,000–7,600 | lbs |
