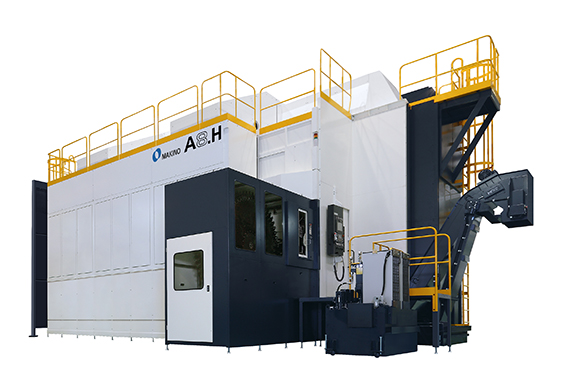

Makino MAG A8.H | 5-axis horizontal machining centerAvailable
Save
Share
Makino
To be updated
Condition: New
Scale: Production
Status: Ready-to-Ship
Ships From: USA
Product Description
Summary
The Makino MAG A8.H is a 5-axis horizontal machining center engineered for high-productivity contouring and large-part machining. It is designed to deliver rapid, precise milling of complex aluminum monolithic parts, with emphasis on aerospace applications. Key differentiators include a 33,000 rpm / 130 kW spindle, large linear strokes, and automation integration for extended unattended operation.
Key Capabilities
- 5-axis simultaneous machining for intricate geometry and multi-face workpiece access
- High-speed, high-power spindle (33,000 rpm, 130 kW) optimized for aggressive metal removal in aluminum
- Large X, Y, Z travels and pallet for processing oversized components
- Automatic pallet transfer and storage system compatibility for long-duration unattended operation
- 120-position automatic tool changer supporting sizable tools and payloads
- Precise rapid traverse and feedrate (65,000 mm/min on linear axes)
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Spindle Speed | 33,000 | rpm |
| Spindle Power | 130 | kW |
| X Travel | 8,200 | mm |
| Y Travel | 2,500 | mm |
| Z Travel | 650 | mm |
| A-Axis Rotation | 220 (-110 to +110) | degrees |
| C-Axis Rotation | 360 | degrees |
| Pallet Size | 8,000 x 2,300 | mm |
| Maximum Workpiece | 8,000 x 2,500 x 500 (with limitations) | mm |
| Maximum Payload | 5,000 | kg |
| ATC Capacity | 120 | tools |
| Rapid Traverse (X, Y, Z) | 65,000 | mm/min |
