Summary

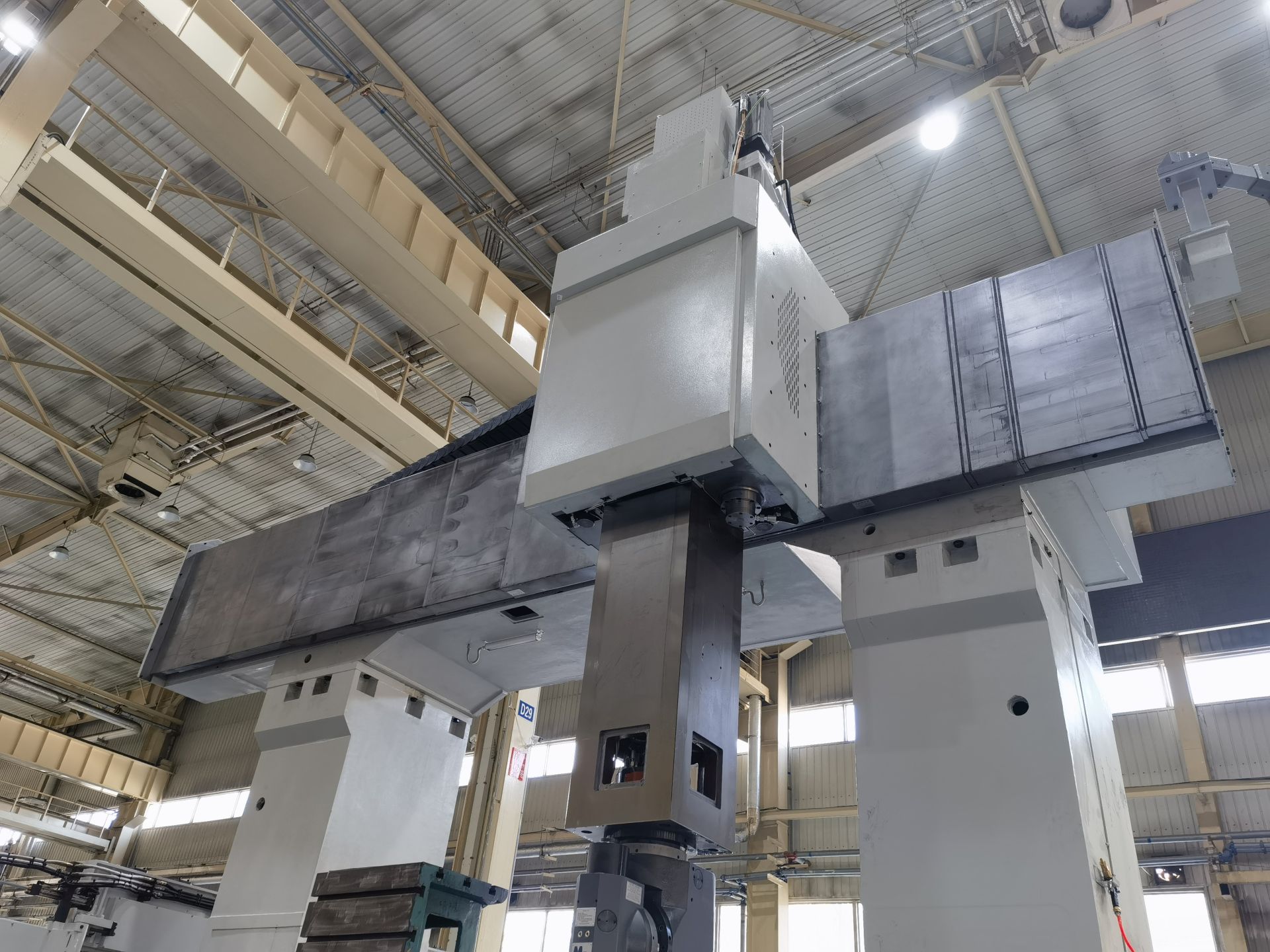

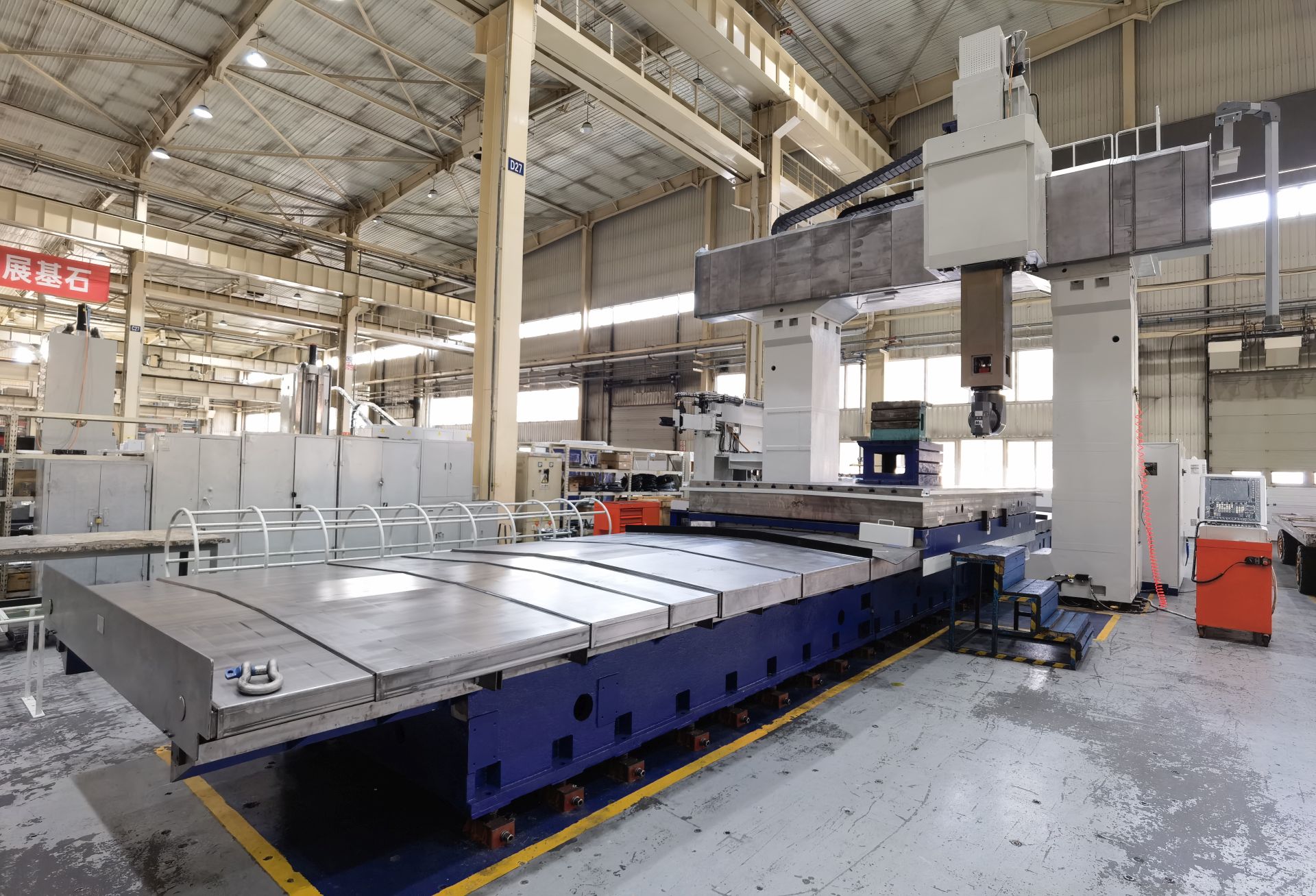

The SMTCL GMC 3060RV is a CNC gantry-type boring and milling machine engineered for heavy-duty and high-speed machining of large, precise components. Its core function is the multi-process machining of oversized workpieces utilizing a moving workbench, fixed crossbeam, and automated right-angle milling head. Key differentiators include high rigidity ram construction, substantial table load capacity, and the ability to complete milling, boring, drilling, expanding, reaming, and rigid tapping in a single setup.

Key Capabilities

• Multi-process machining (milling, boring, drilling, expanding, reaming, rigid tapping) without repositioning
• Accommodates large workpieces including plates, discs, housings, and molds

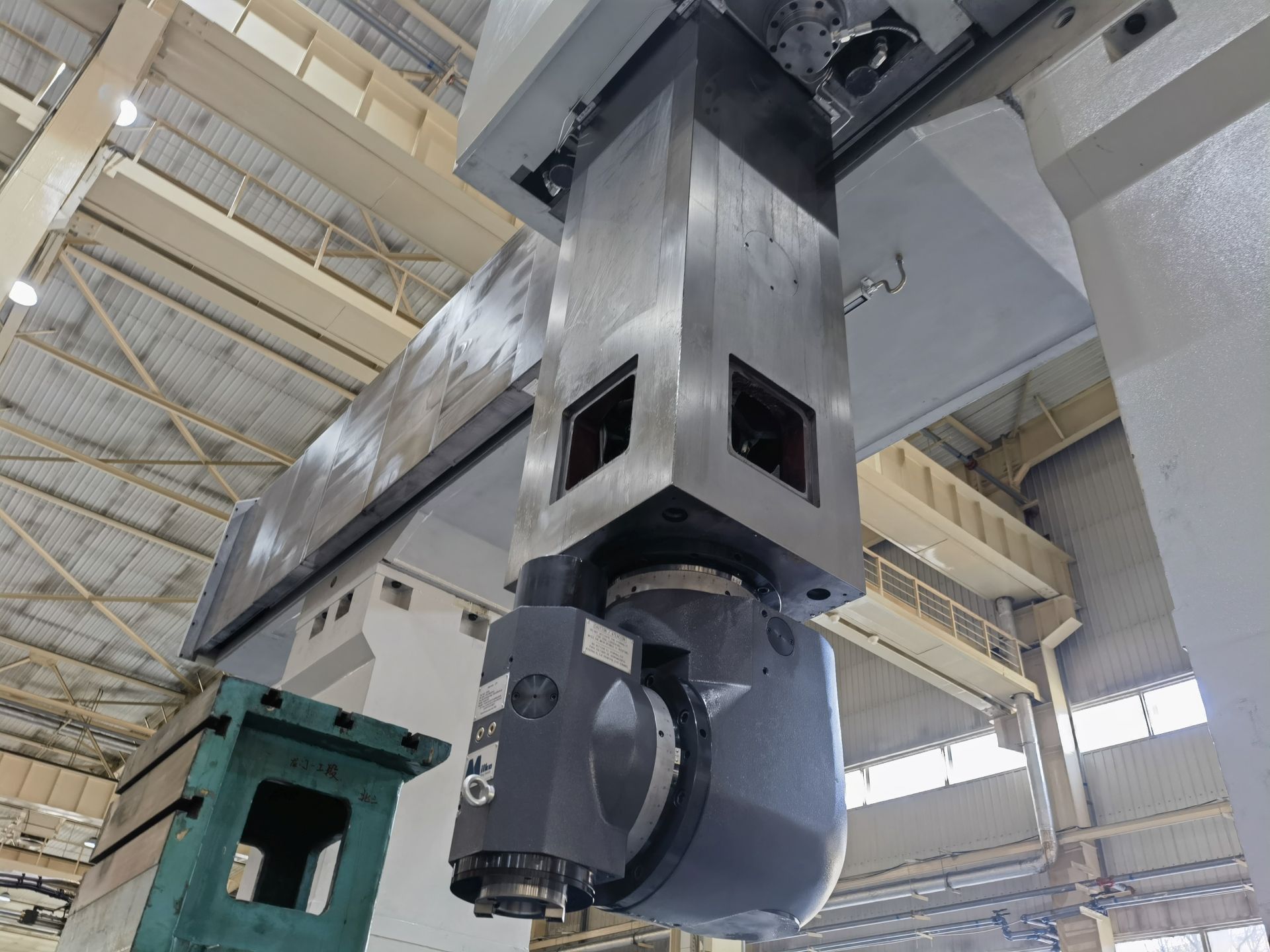

• Automated right-angle milling head for planar machining on multiple surfaces

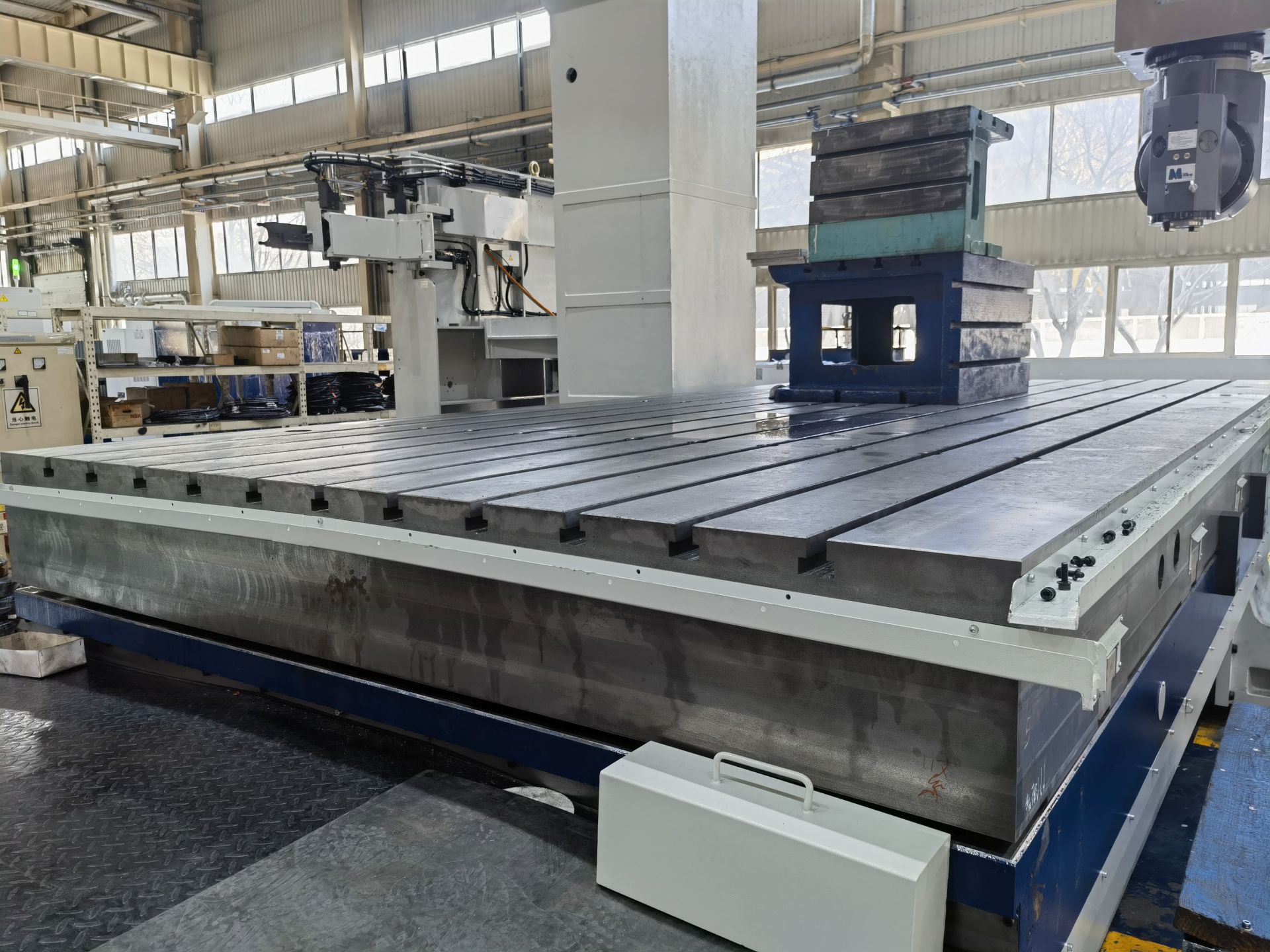

• High load capacity workbench (up to 30,000 kg)
• Modular and customizable design as per application needs
• Precision positioning and repeatability suitable for demanding applications
• Applicable to industries such as shipbuilding, power generation, heavy-duty locomotive/machine tool manufacturing, textile and printing machinery, and mold making

Key Specifications
