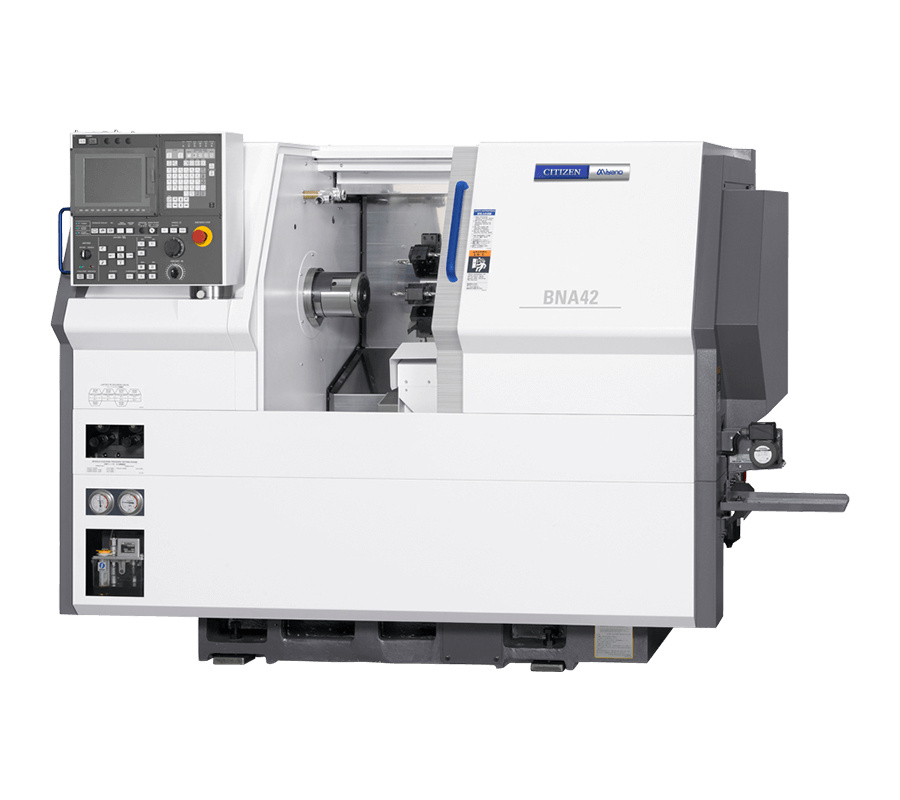

Citizen Machinery Miyano BNA-42MSY2 | CNC Twin-Spindle Turning Center with Y-Axis and Half-Indexing TurretAvailable
Save
Share
Citizen Machinery
To be updated
Condition: New
Scale: Production
Status: Ready-to-Ship
Ships From: USA
Product Description
Summary

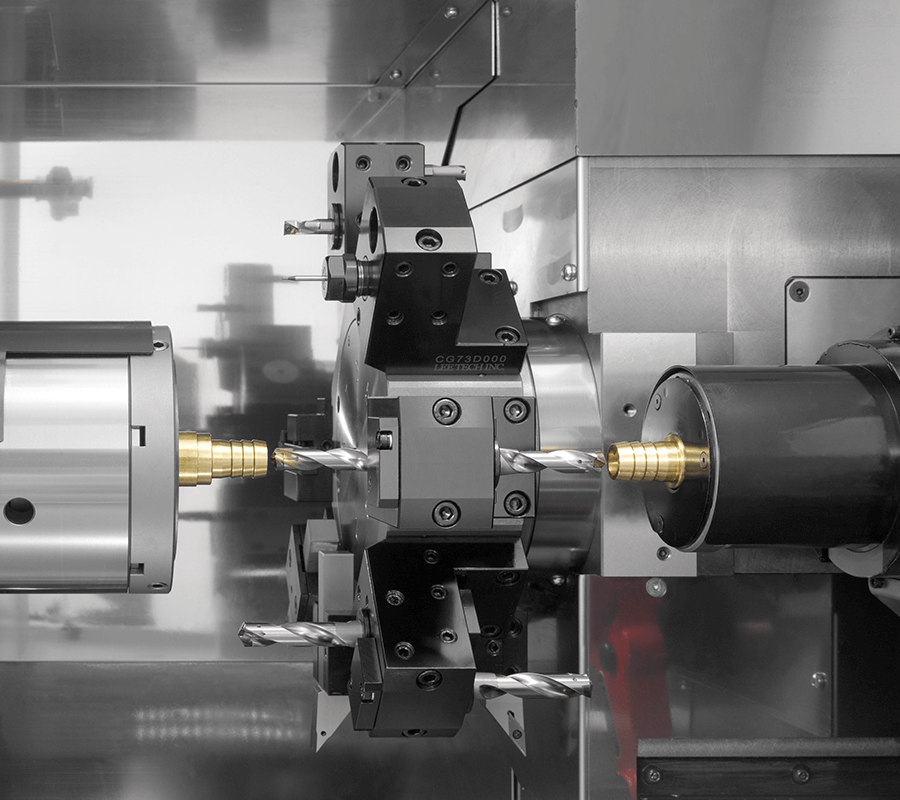

The Miyano BNA-42MSY2 is a CNC twin-spindle turning center designed for simultaneous machining with a single turret capable of half-indexing and mounting multiple revolving tools. It enables overlapping control between its two spindles to reduce cycle times for bar work up to 42mm in diameter. Key technical features include a Y-axis, half-indexing 8-station turret, and a tool holder system supporting multiple revolving tools at one position for increased tooling flexibility.
Key Capabilities
- Simultaneous machining via overlapping spindle control
- Half-indexing turret with support for multiple revolving tools per station
- Twin spindle configuration for front and back machining operations
- Y-axis functionality for multi-axis cutting
- Accommodates bar stock up to 42mm diameter (SP1)
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Maximum Machining Diameter of Bar Work SP1 | 42 | mm |
| Maximum Machining Diameter of Bar Work SP2 | 34 | mm |
| Maximum Machining Length | 100 | mm |
| Number of Tool Stations (Turret) | 8 | positions |
| Maximum Number of Revolving Tools | 8 | tools |
| Spindle Speed SP1 | 6,000 | min⁻¹ |
| Spindle Speed SP2 | 5,000 | min⁻¹ |
| Spindle Motor Power SP1 (15min./Cont.) | 11/7.5 | kW |
| Spindle Motor Power SP2 (15min./Cont.) | 5.5/3.7 | kW |
| Rapid Feed Rate (Z1/X1) | 20 | m/min |
