Summary

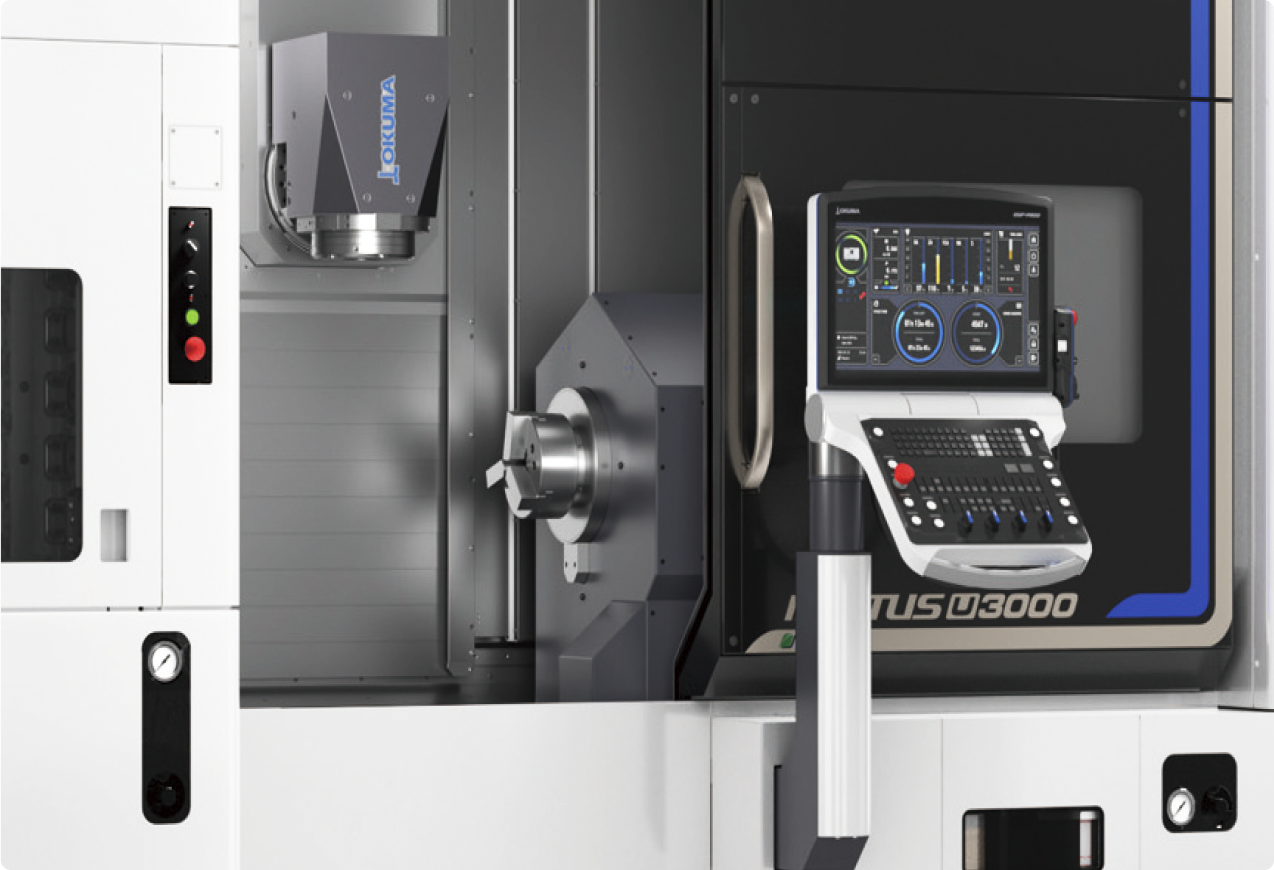

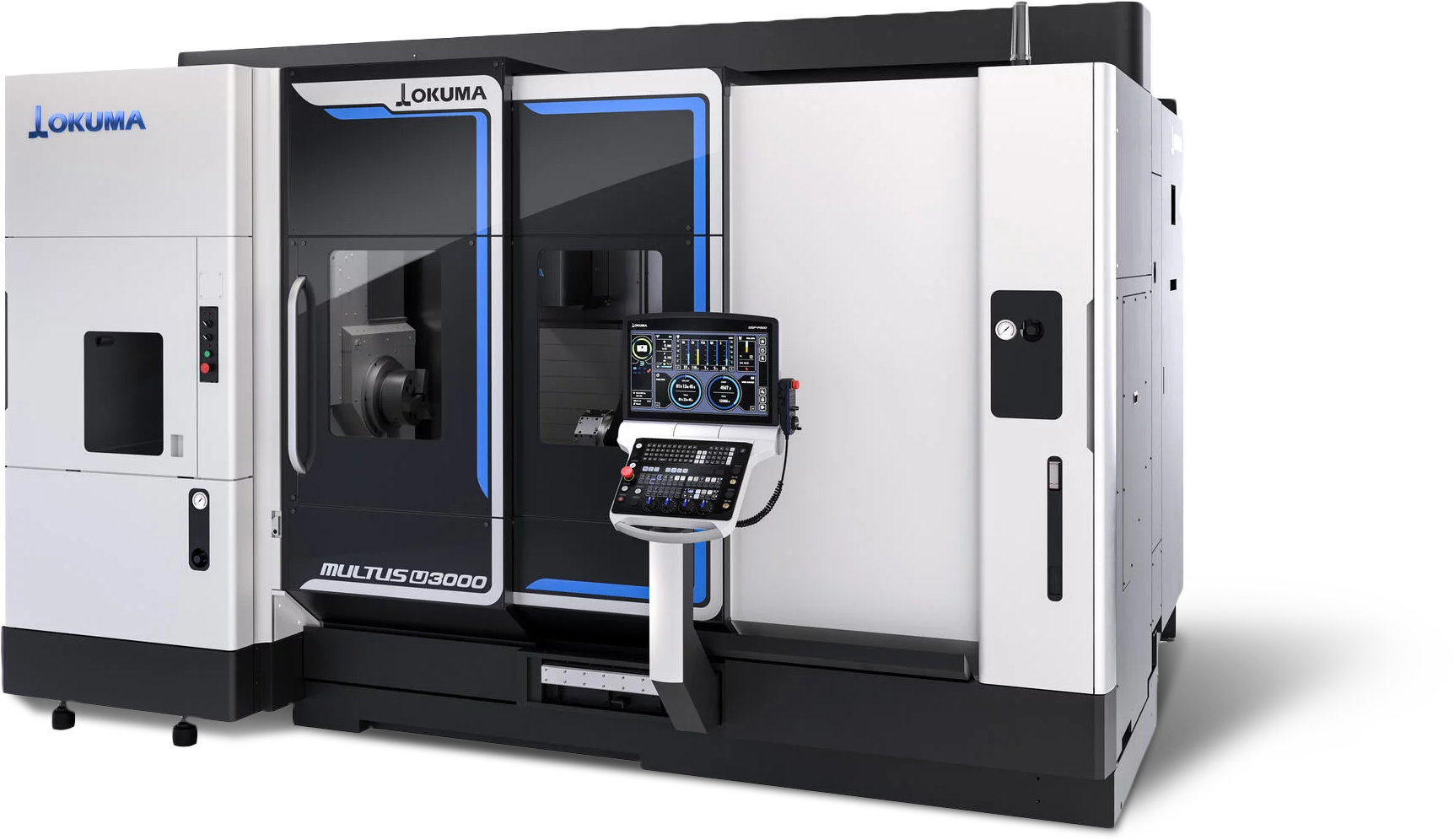

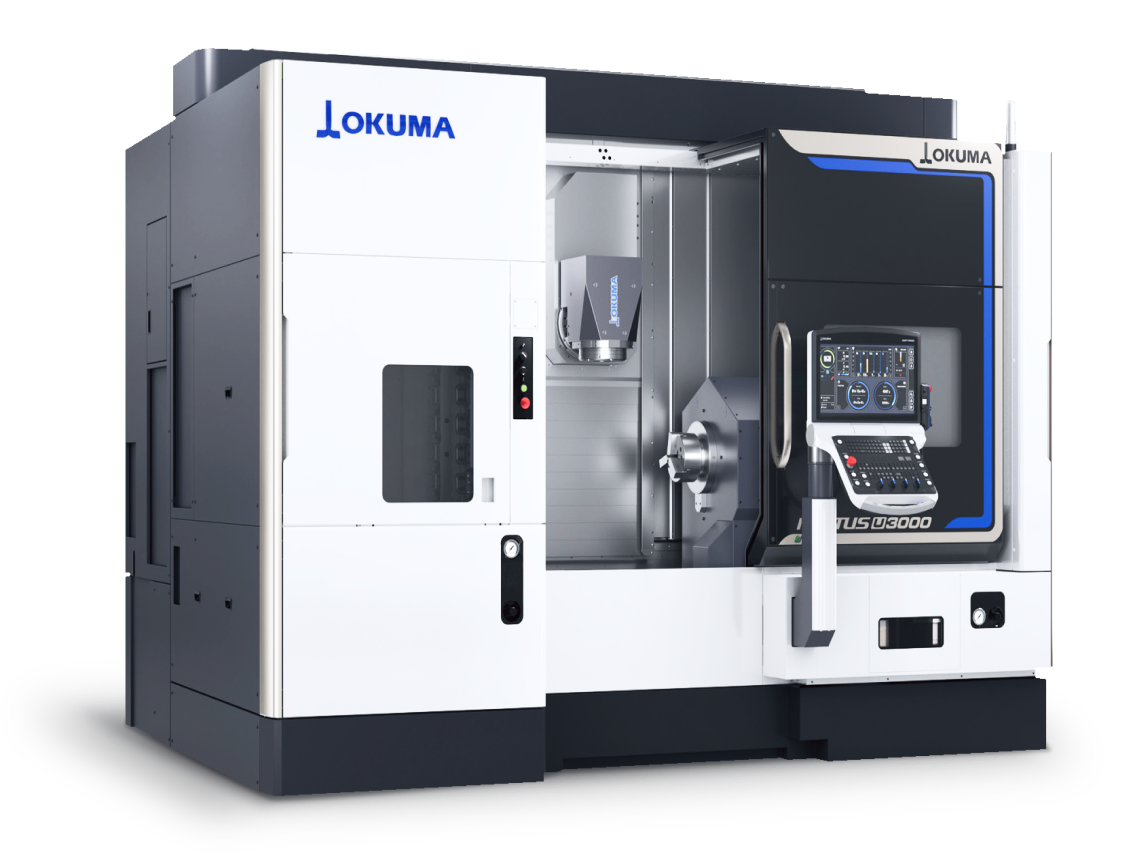

The Okuma MULTUS U3000 is a multitasking CNC machine designed to perform both turning and milling operations with a single setup. Its core function is to integrate high-precision contour milling with full turning capability, enabled by a 240° B-axis milling spindle, automatic tool changer, and optional sub-spindle and lower turret configuration. This machine supports complex part production for medium-size workpieces, providing process flexibility with features such as CAPTO C6 tooling, dual C-axis spindles, and Okuma's advanced OSP-P500 CNC control.

Key Capabilities

• 240° B-axis milling spindle for 5-axis contouring and multiple-plane machining
• H1 dual-function spindle head supporting both turning and milling tools (CAPTO C6)
• Automatic tool changer (ATC) with up to 80-tool capacity (40 standard)
• Combined left and optional right spindles with full-contouring C-axis capability
• Option for a lower turret to increase throughput and enable simultaneous operations
• Y-axis with traveling column design and 9.84-inch machining range
• OSP-P500 CNC control with Collision Avoidance System and familiar lathe/machining center programming

Key Specifications
