Summary

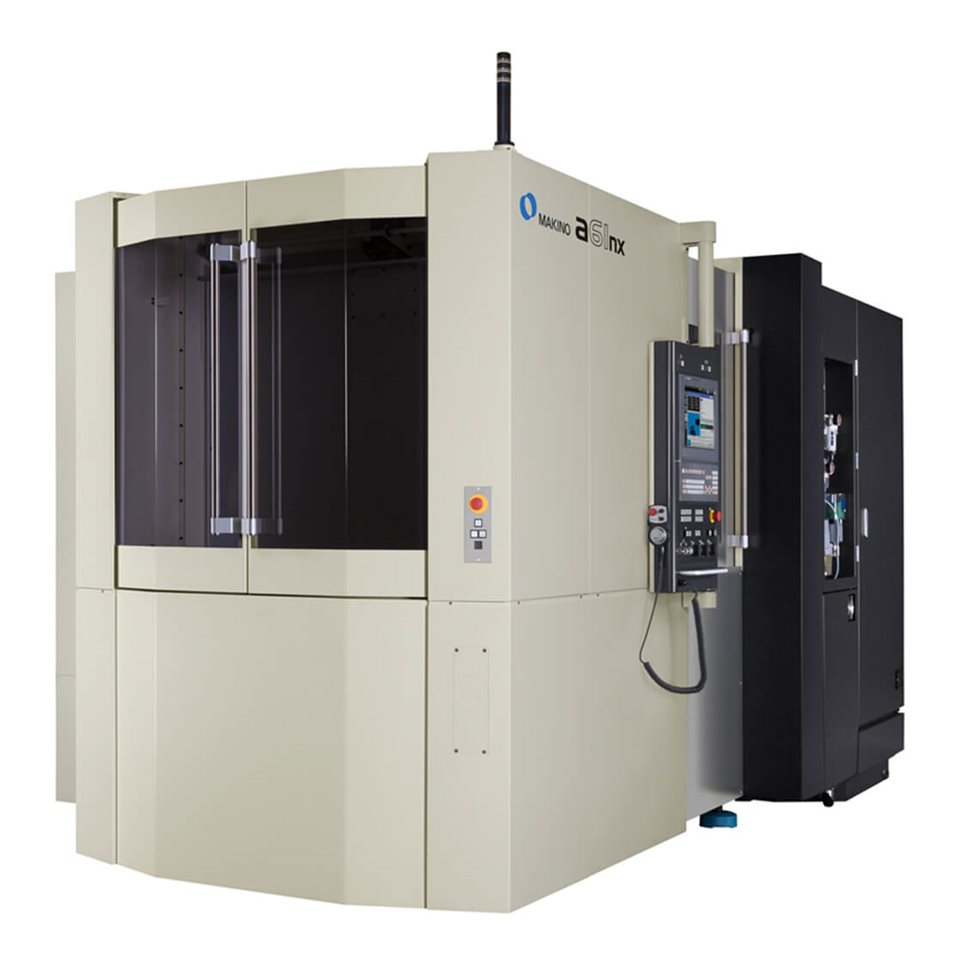

The Makino a61nx is a 4-axis horizontal machining center designed for high-volume part production and complex machining tasks. It delivers precise milling, drilling, and tapping operations on workpieces up to 800 mm in diameter and 1,000 mm in height, utilizing a 14,000-rpm, 40-taper spindle with high torque capability. Notable features include Inertia Active Control for optimized axis movement, a broken tool sensor in the ATC magazine, and an available tall column configuration for increased part capacity.

Key Capabilities

• 4-axis machining with full rotary B-axis for complex part geometries
• High-speed milling, drilling, and tapping with up to 14,000 rpm spindle
• Inertia Active Control dynamically optimizes acceleration/deceleration based on fixture weight
• Automatic tool breakage detection via Vision type sensor in the tool magazine
• Large part capacity with 500 x 500 mm pallet and tall column option
• Rapid tool changes supported by dual-supported ATC arm
