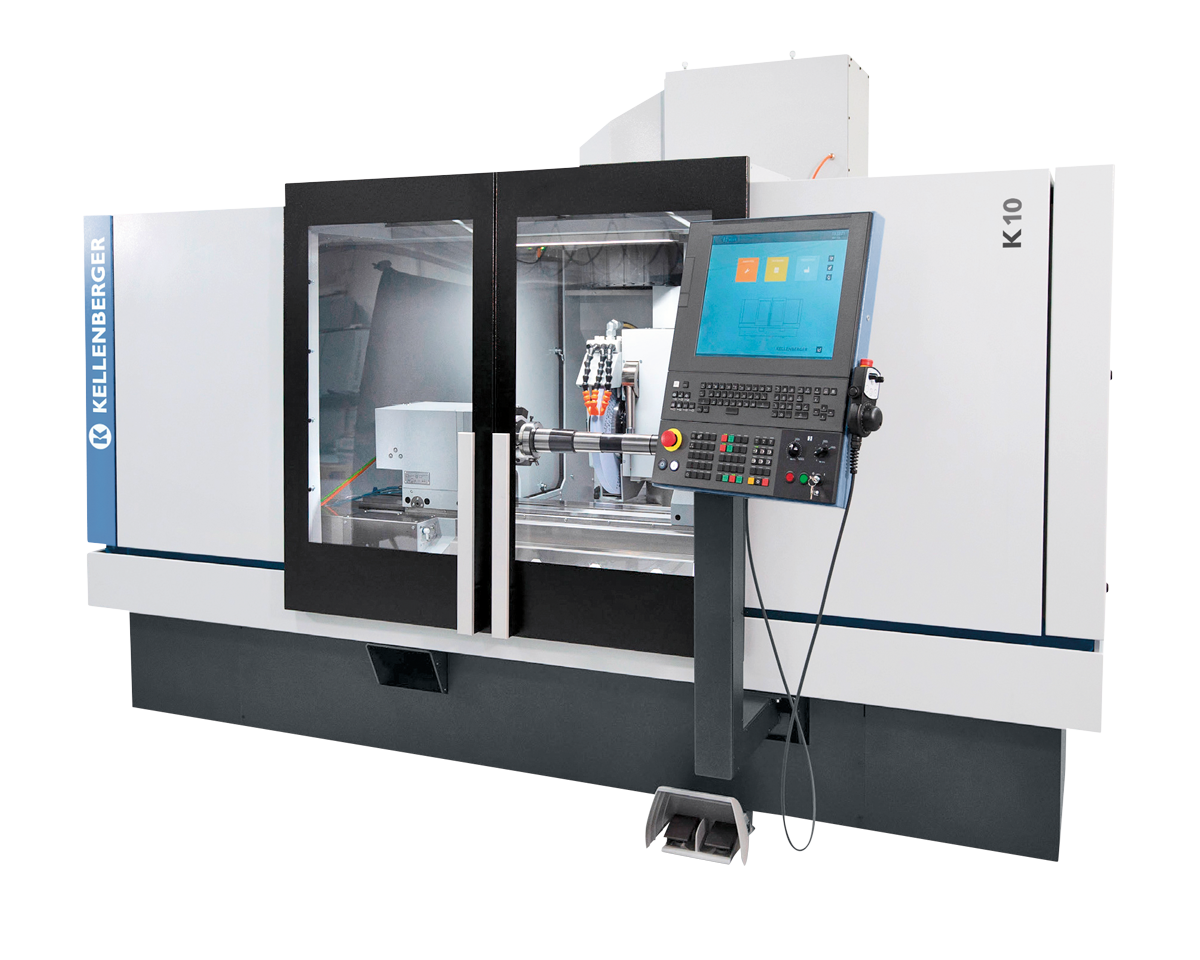

Kellenberger K10 | CNC Universal Cylindrical Grinding MachineAvailable
Save
Share
Kellenberger
To be updated
Condition: New
Scale: Production
Status: Ready-to-Ship
Ships From: USA
Product Description
Summary
The Kellenberger K10 is a CNC universal cylindrical grinding machine designed for precision external and internal grinding of medium-sized workpieces. It offers a primary and secondary external grinding wheel with a large diameter, as well as direct-drive internal grinding spindles capable of up to 60,000 rpm, supporting complex and flexible grinding tasks. The machine features a reinforced bed for rigidity, modular retrofitting options, and a FANUC 0i-F Plus control system with touchscreen interface for guided programming.
Key Capabilities
- CNC-controlled universal cylindrical grinding for both external and internal operations
- Dual external grinding wheels and high-speed internal grinding spindle
- X and Z linear axes with fine scale resolution (0.00001 mm)
- Modular design supporting a variety of retrofittable upgrades
- Touchscreen HMI with guided, object-based programming (BLUE Solution)
- Workpiece support between centers up to 100 kg
- Automatic indexing axis for high positioning accuracy
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Centre height | 200 | mm |
| Centre width | 1,000 | mm |
| Max. workpiece diameter | < 400 | mm |
| Max. workpiece weight (between centers) | 100 | kg |
| Z-axis travel | 1,150 | mm |
| X-axis travel | 365 | mm |
| Z/X axis resolution | 0.00001 | mm |
| External grinding wheel (max) | ⌀500 x 80 | mm |
| External grinding spindle power | 7.5 | kW |
| Internal spindle speed (max) | 60,000 | min-1 |
| Grinding head type | Universal | |
| Control | FANUC 0i-F Plus | |
| Machine footprint (L x W) | 3.4 x 2.2 | m |
| Total weight | 4,100 | kg |
