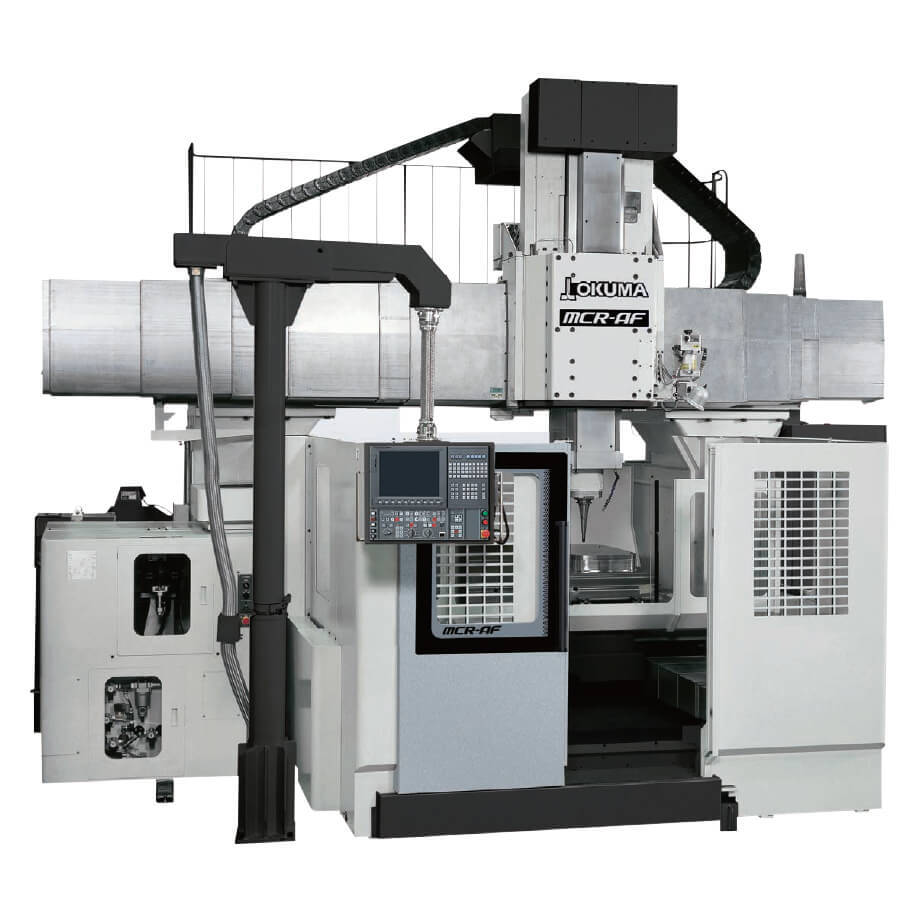

Okuma MCR-AF | Double Column CNC Machining CenterAvailable
Save
Share
Okuma
Japan
Condition: New
Scale: Production
Status: Ready-to-Ship
Ships From: USA
Product Description
Summary
The MCR-AF is a double column CNC machining center designed for precision material removal in medium to large die, mold, and IT product applications. It delivers multi-axis milling with a substantial table travel and options for high spindle speed, supporting both efficiency and accuracy for large-format workpieces. Control is managed via a Windows®-based Okuma THINC®-OSP system, enabling integration with peripheral equipment.
Key Capabilities
- Double column gantry construction for increased rigidity during machining
- CNC-controlled multi-axis motion
- Table travel of 2,600 mm (102.36 in) for large component accommodation
- Multiple spindle speed and power configurations to match application requirements
- Magazine capacity options up to 100 tools
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Width Between Columns | 2,600 | mm |
| Table Travel (X-Axis) | 2,600 | mm |
| Spindle Speed Range | 8,000 [12,000, 15,000, 25,000] | min⁻¹ |
| Spindle Power Options | 26/22 [37/26, 22/18.5, 30/22, 15/11] | kW |
| Rapid Traverse Rate X-Y/Z | 20 / 10 | m/min |
| Tool Magazine Capacity Options | 24 [32, 48, 50, 72, 100] | tools |
