Summary

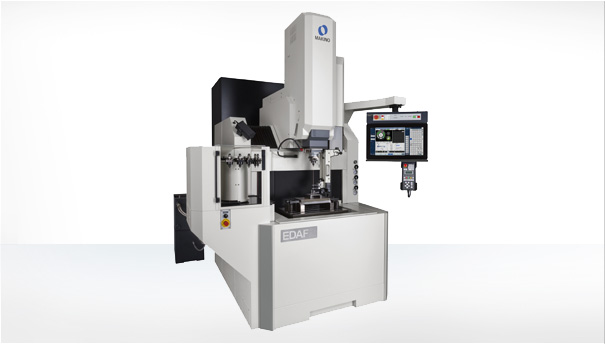

The Makino EDAF2 FH is an electrical discharge machining system designed for both precision fine hole drilling and standard Ram EDM operations. It features an independent programmable W-Axis with dedicated die and middle guide support to enhance accuracy in small diameter electrode drilling, as well as a high-speed C-Axis for precision indexing and continuous rotation. This machine is suited to demanding applications requiring high-accuracy holes in industries such as aerospace, automotive, medical, and die/mold manufacturing.

Key Capabilities

• Supports both standard Ram EDM and precision fine hole EDM drilling operations
• Programmable W-Axis arm with middle guide support to stabilize small diameter electrodes
• High-speed C-Axis enables precision indexing and up to 2,000 rpm continuous rotation
• Compatible with dielectric oil for improved accuracy and edge quality
• Programmable rise and fall work tank for automated operation
• U/V flame sensor and integrated fire extinguisher system for safe unattended operation
• 24" high-definition touchscreen Hyper-i control for operator interface
• Integrated dielectric reservoir within the machine base and chilled fluid circulation for thermal stability
