Summary

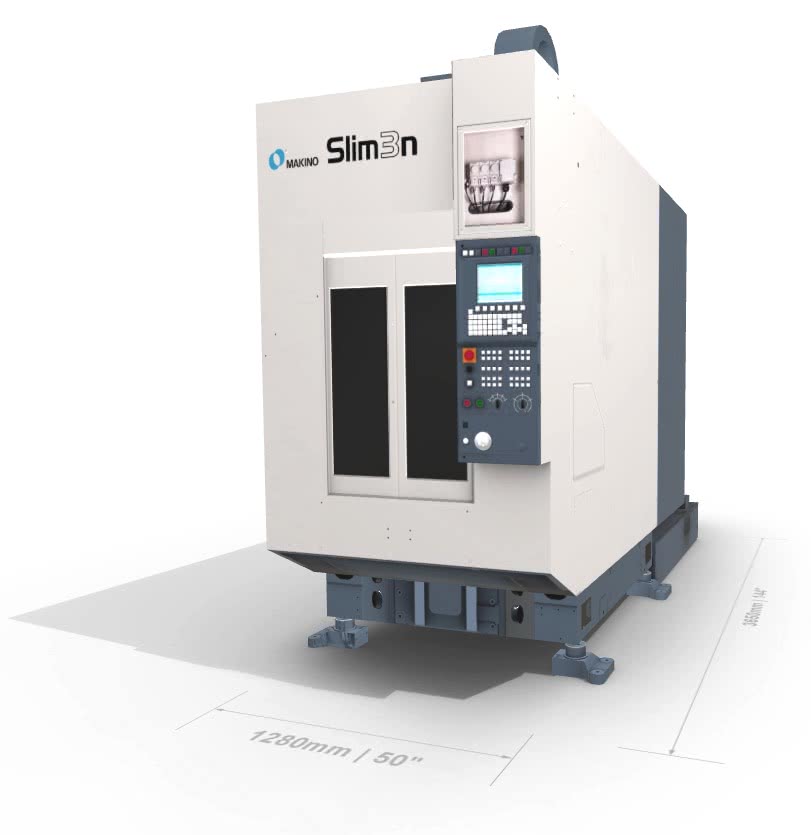

The Makino Slim3n is a vertical 3-axis machining center designed for high-volume part production. It delivers simultaneous setup and machining through a pallet changer system and supports a range of machining applications with high-speed spindle options. Key technical characteristics include an armless 26-tool ATC, fixed table design, and structural optimization via finite element analysis.

Key Capabilities

• Simultaneous pallet setup and machining with integrated pallet changer
• Fixed table design supports larger work envelopes and higher fixture weights
• 26-tool automatic tool changer with direct pick and integral door
• Optional spindle specifications: 16,000 rpm or 8,000 rpm
• Enhanced chip evacuation via standard nozzle and flush coolant system, with optional lift-up conveyor
• Finite Element Analysis-based structural design for increased rigidity and stiffness

Key Specifications
