Summary

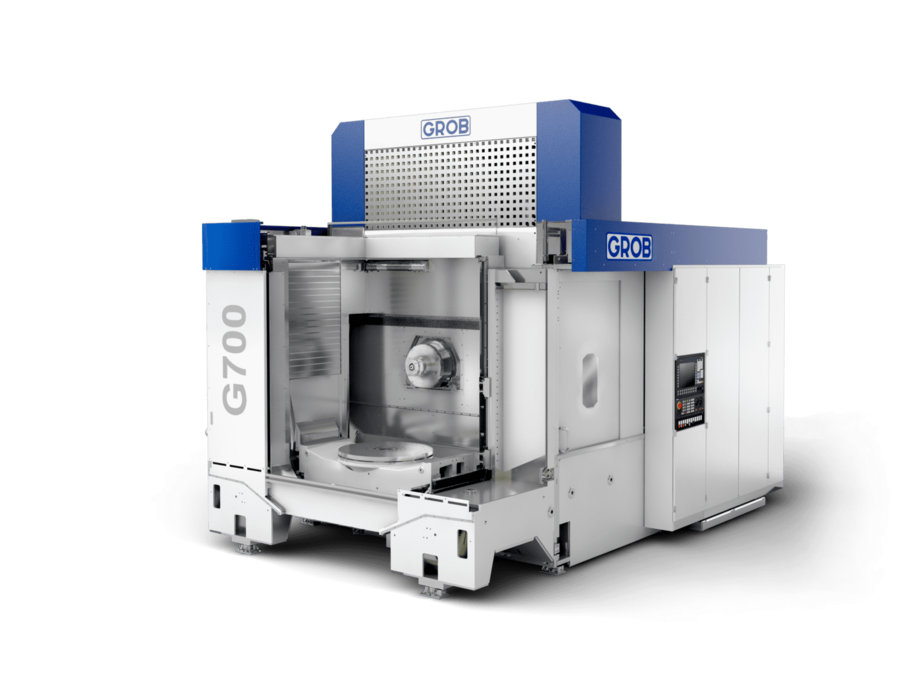

The Grob G700 is a modular 5-axis machining center engineered for flexible, large-part precision milling and advanced process integration. Its split-axis kinematic design and configurable work envelope enable efficient machining within automotive manufacturing lines. Key differentiators include a large work area, expandability, and rapid tool change capability, supporting both wet and dry machining modes.

Key Capabilities

• Modular architecture for application-specific equipment levels and easy adaptability
• Split motion axes for enhanced rigidity and dynamics
• Supports both wet and dry machining operations
• Fast chip-to-chip tool change cycle
• Accommodates large parts with expansive working travels
• Expandable tool magazine for high-mix manufacturing
• Optimized loading concept for production line integration

Key Specifications

| Parameter | Value | Unit |

| Working travels (X/Y/Z) | 1,250 / 920 / 1,160 | mm |

| Max. speeds (X/Y/Z) | 60 / 50 / 60 | m/min |

| Positioning accuracy (X/Y/Z) | 0.006 | mm |

| Chip-to-chip time (VDI 2852) | 4.8 | s |

| Interference diameter | 1,350 | mm |

| Table load (without pallet) | 950 | kg |

| Total weight | 28,000 | kg |
