Summary

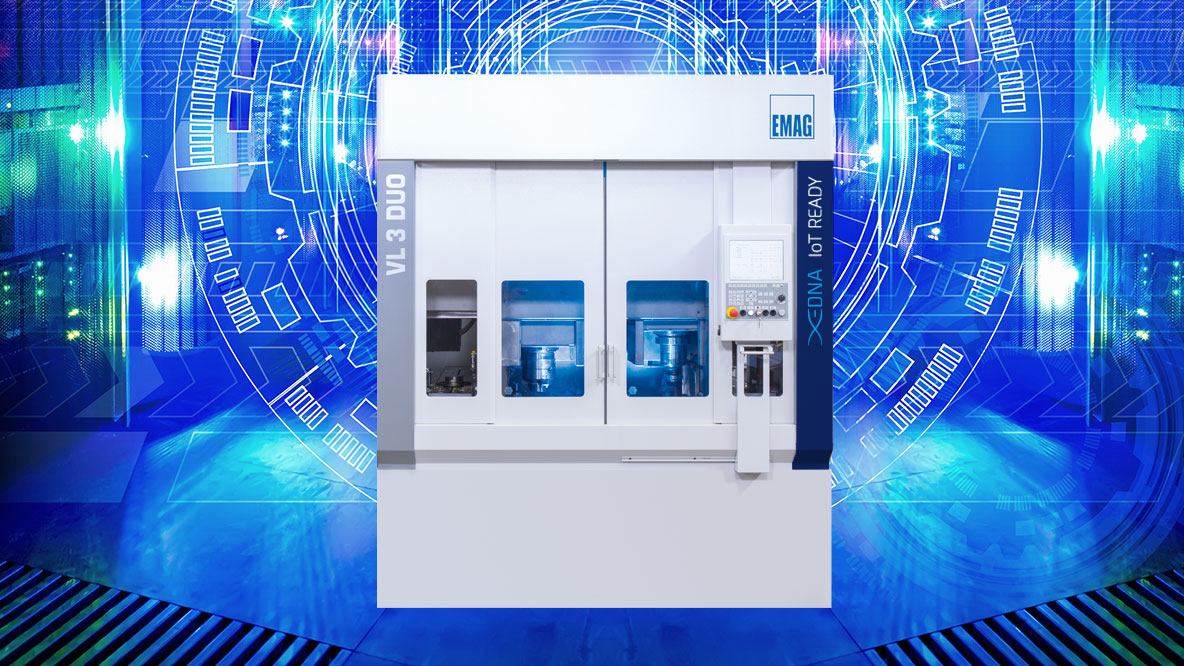

The Emag vl 3 duo is a vertical CNC turning center featuring two independent, mirrored machining areas with twin pick-up spindles, designed for high-volume processing of chucked parts up to 150 mm in diameter. Its central technical differentiator is the integrated TrackMotion pick-and-place automation system, which manages part handling, flipping, and storage with stacker pallet capability between machining operations. The machine is engineered for compact, high-throughput production environments requiring flexible two-operation workflows.

Key Capabilities

• Simultaneous twin-spindle CNC turning in two separate work areas
• Integrated pick-up automation and part flipping via TrackMotion system
• Each station equipped with a 12-position tool turret (supports driven and fixed tools)
• Parts storage capacity for up to 400 units with stacker pallet support
• Independent, high-power pick-up spindles enabling short cycle times
• Maximum workpiece diameter of 150 mm and length of 110 mm

Key Specifications
