Summary

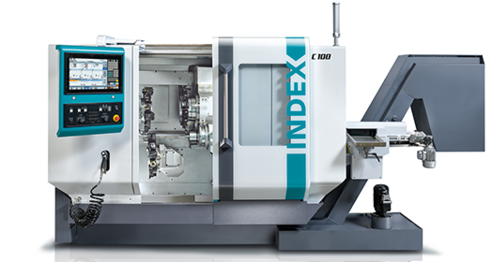

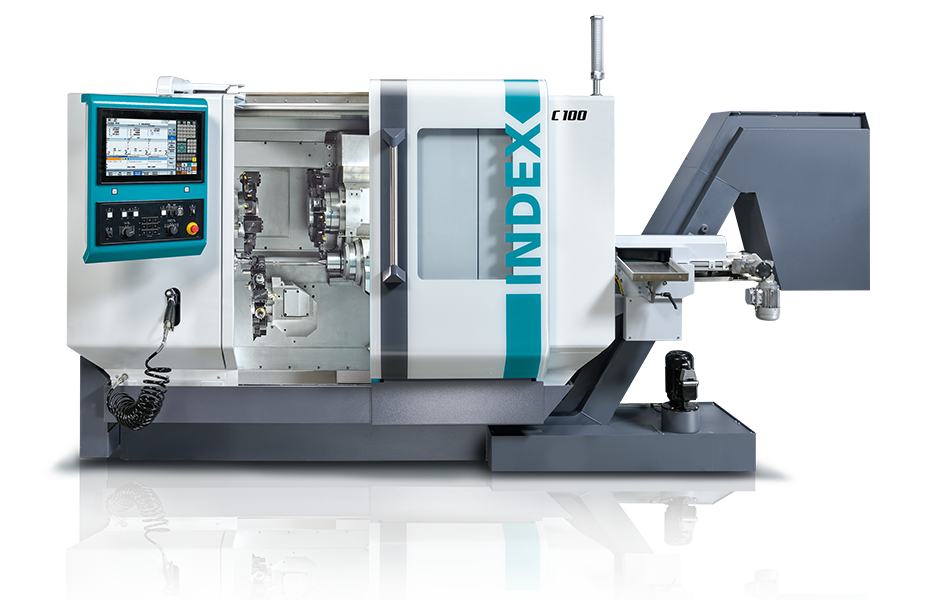

The INDEX C100 is a CNC multi-turret turning center designed for simultaneous machining using two or three turrets with both main and counter spindles. Its core function is high-throughput, multi-axis turning and milling of bar-fed components with a focus on complex part geometries and rapid cycle times. Differentiating features include three tool turrets (up to 42 tools), full Y-axis capabilities on both spindles, and optional integrated robotic cell for automated part handling.

Key Capabilities

• Simultaneous machining with 2 or 3 turrets
• Main and counter spindles with identical design and Y-axis available on both
• Accommodates up to 42 tools with three turrets
• High acceleration (1g) and rapid traverses (60 m/min)

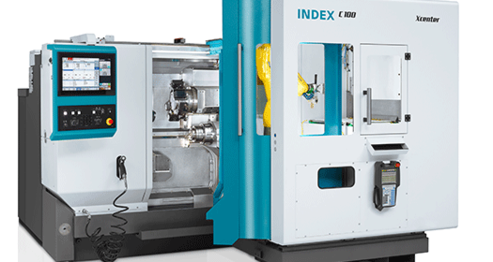

• Integrated robotic cell (iXcenter) for automated blank and finished part handling
• CNC control options: Siemens S840D sl (18.5" touchscreen) or Fanuc 31i-B (15" touchscreen)
• Vibration damping via INDEX SingleSlide construction

Key Specifications
