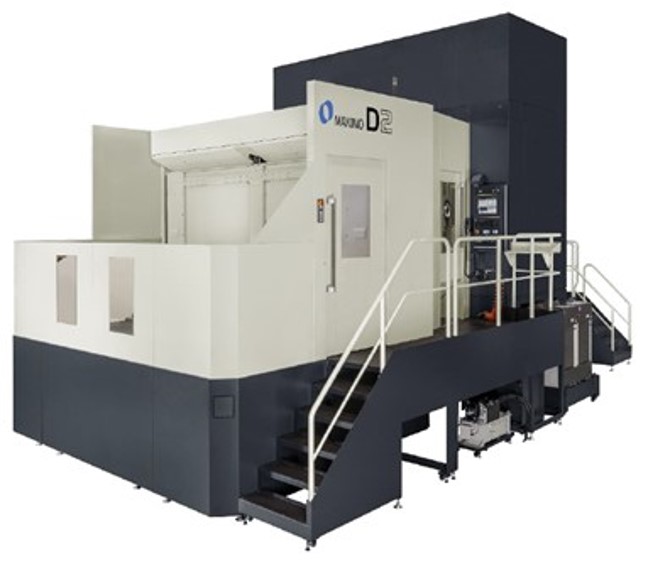

Makino D2 | 5-Axis Vertical CNC Machining Center with Tilting/Rotating SpindleAvailable
Save
Share
Makino
To be updated
Condition: New
Scale: Production
Status: Ready-to-Ship
Ships From: USA
Product Description
Summary
The Makino D2 is a vertical 5-axis CNC machining center engineered for high-precision finish machining of complex, multifaceted 3D contours, particularly in large die and mold applications. Its tilting and rotating spindle enables optimal tool tip positioning for superior surface finishes with minimal hand finishing. Advanced servo control technology targets minimized cycle times on intricate cavities and cores.
Key Capabilities
- 5-axis continuous machining for complex, multi-face part geometries
- Tilting/rotating spindle allows optimal tool-workpiece positioning
- Supports machining of large parts with workpiece capacity up to 2,100 mm diameter and 10,000 kg
- Designed to achieve fine finishes and tight tolerances on die/mold components
- Equipped with Makino Professional 6 control, featuring graphical interface and advanced data management
- Next-generation servo control technology (SGI.5) for reduced cycle times in complex 3D work
- Automatic tool changer with standard 60-tool capacity (optional up to 136)
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| X Travel | 2,200 | mm |
| Y Travel | 2,300 | mm |
| Z Travel | 1,100 | mm |
| Maximum Workpiece Diameter | 2,100 | mm |
| Maximum Workpiece Height | 1,700 | mm |
| Maximum Workpiece Weight | 10,000 | kg |
| Table Size | 1,600 x 1,200 | mm |
| Spindle Speed | 15,000 | RPM |
| ATC Capacity (Std/Opt) | 60 / 136 | tools |
| Maximum Tool Diameter | 102 / 300 | mm |
| Maximum Tool Weight | 30 | kg |
| Rapid Traverse | 58,000 | mm/min |
| Cutting Feedrate | 40,000 | mm/min |
