Product Description
Summary

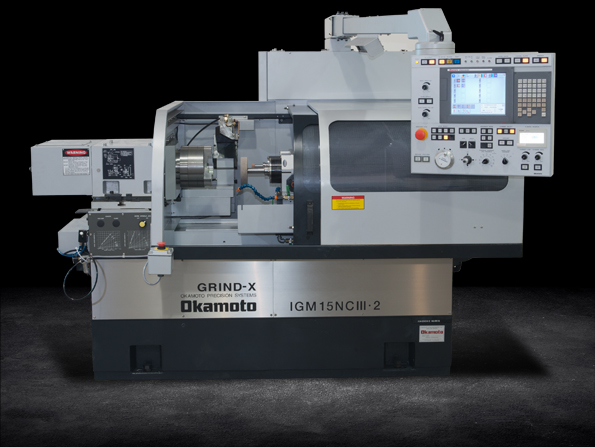

The Okamoto IGM-NCIII/2 Series is a CNC twin-spindle grinding machine designed for precision internal and external cylindrical grinding. Capable of grinding I.D.s, O.D.s, and faces in a single chucking, it offers versatile application for straight, taper, face, and multi-step operations. Distinctive technical features include twin spindle configuration, ultra-fine feed increments, and in-process dressing.
Key Capabilities
- Twin spindle design for simultaneous or sequential internal and external grinding
- CNC control with touch-screen interface (Fanuc OiTD)
- Ultra-fine feed and infeed increments of 0.00001" for high precision
- Supports straight, taper, face, and multi-step grinding in a single setup
- Programmable grinding wheelhead speeds (3 settings)
- Rigid workhead with variable spindle speeds (100–850 rpm)
- In-process wheel dressing during auto cycle
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Internal Diameter Range | 0.24–4 (one spindle: 0.24–6) | in |
| Maximum Grinding Stroke | 3.2 (one spindle: 5) | in |
| Swing over Table | 24 | in |
| Workhead Spindle Speed | 100–850 | rpm |
| Grinding Spindle Power | 7.5 | hp |
| Floor Space (L×W×H) | 116 × 101 × 70 | in |
| Weight | 5,300 | lbs |
