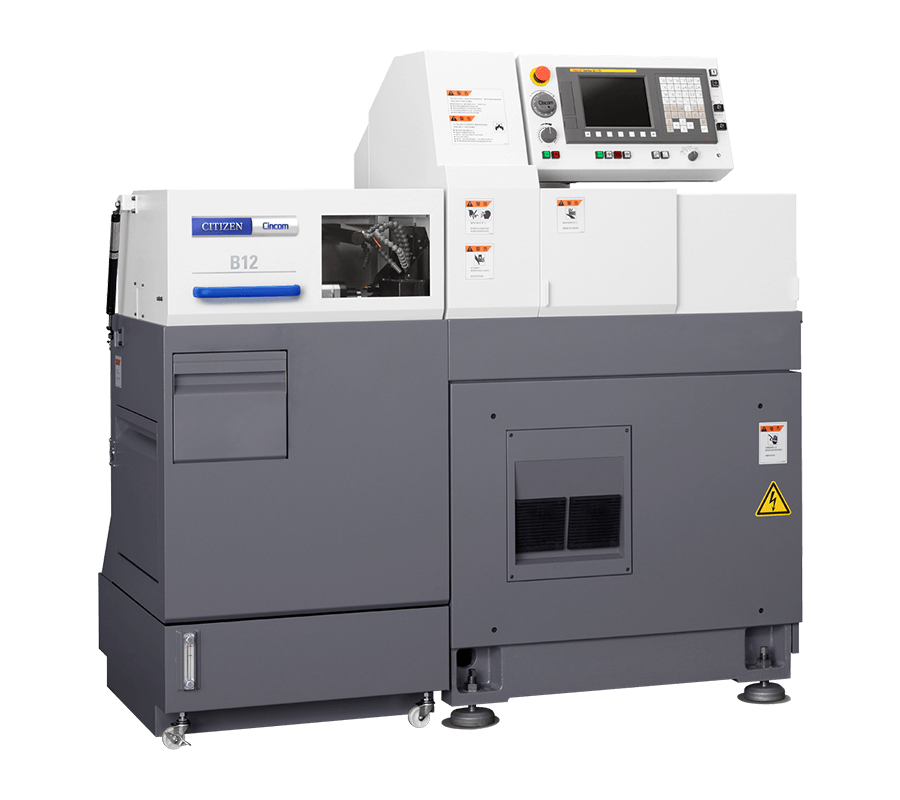

Citizen Machinery Cincom B12E II | Sliding Headstock CNC Swiss-Type Automatic LatheAvailable
Save
Share
Citizen Machinery
To be updated
Condition: New
Scale: Production
Status: Ready-to-Ship
Ships From: USA
Product Description
Summary
The Cincom B12E II is a sliding headstock CNC Swiss-type lathe engineered for precision turning and continuous machining of small-diameter workpieces up to 12mm. It is designed for high-accuracy, unattended production with thermal displacement compensation and enhanced tool layouts. Integrated NC functions such as canned drilling cycles, user macros, and direct drawing dimension input support versatile part processing and programming efficiency.
Key Capabilities
- Sliding headstock operation for precise, long-part machining up to 135mm per chuck
- Tool layout designed for thermal displacement compensation, enabling high-accuracy continuous processing

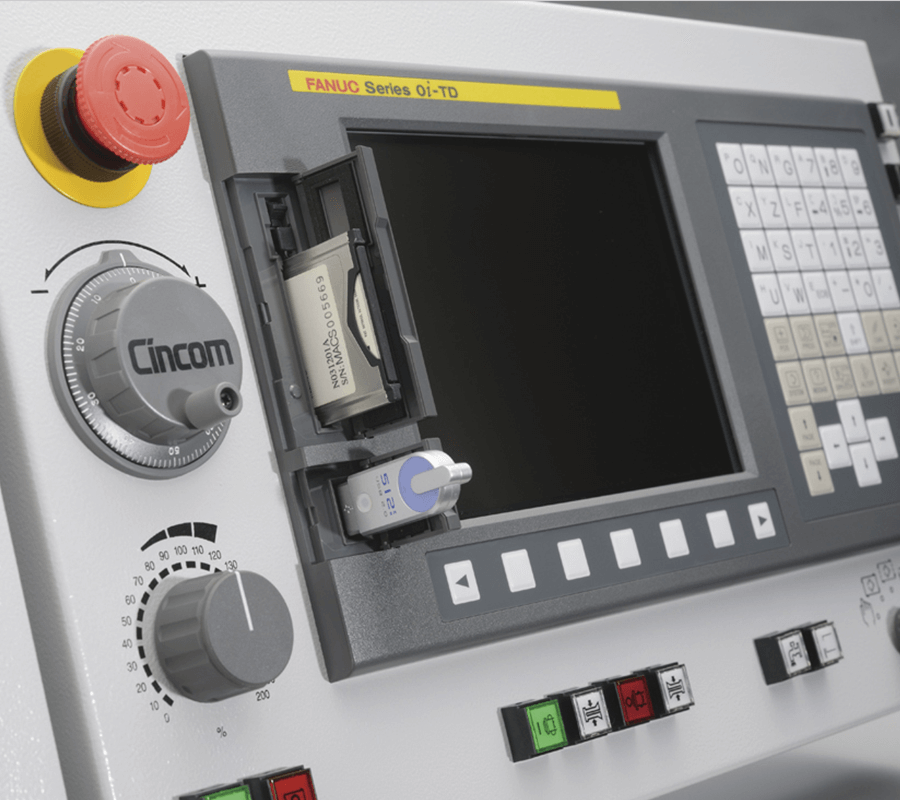

- Standard NC functions including canned drilling cycles, user macros, and direct input of drawing dimensions

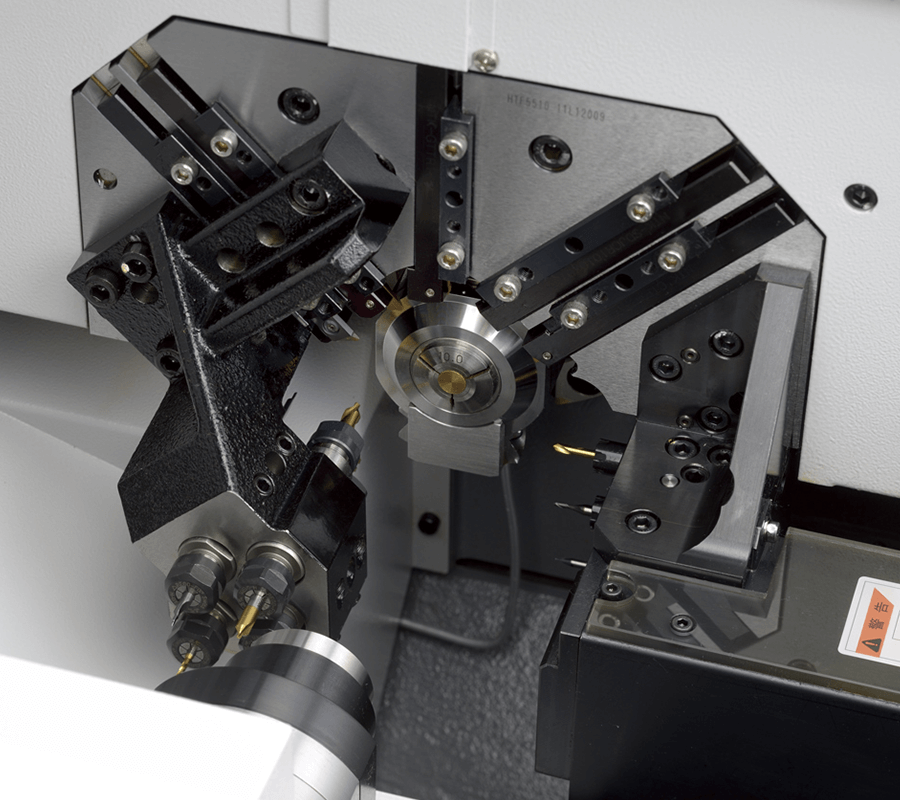

- 12-tool capacity for multi-process operations, including rotary tool support for both drilling and tapping
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Maximum machining diameter | 12 | mm |
| Maximum machining length (per chuck) | 135 (R.G.B. 60) | mm |
| Main spindle speed | 12,000 (R.G.B. 8,000) | min-1 |
| Maximum drilling diameter (main spindle) | 6 | mm |
| Maximum front tapping diameter (tap, die) | M6 | |
| Maximum drilling diameter (rotary tool) | 5 | mm |
| Maximum tapping diameter (rotary tool) | M4 | |
| Number of tools mountable | 12 | |
| Rapid feed rate (X/Y/Z) | 21/21/15 | m/min |
| Center height | 1,000 | mm |
| Machine weight | 1,100 | kg |
