Summary

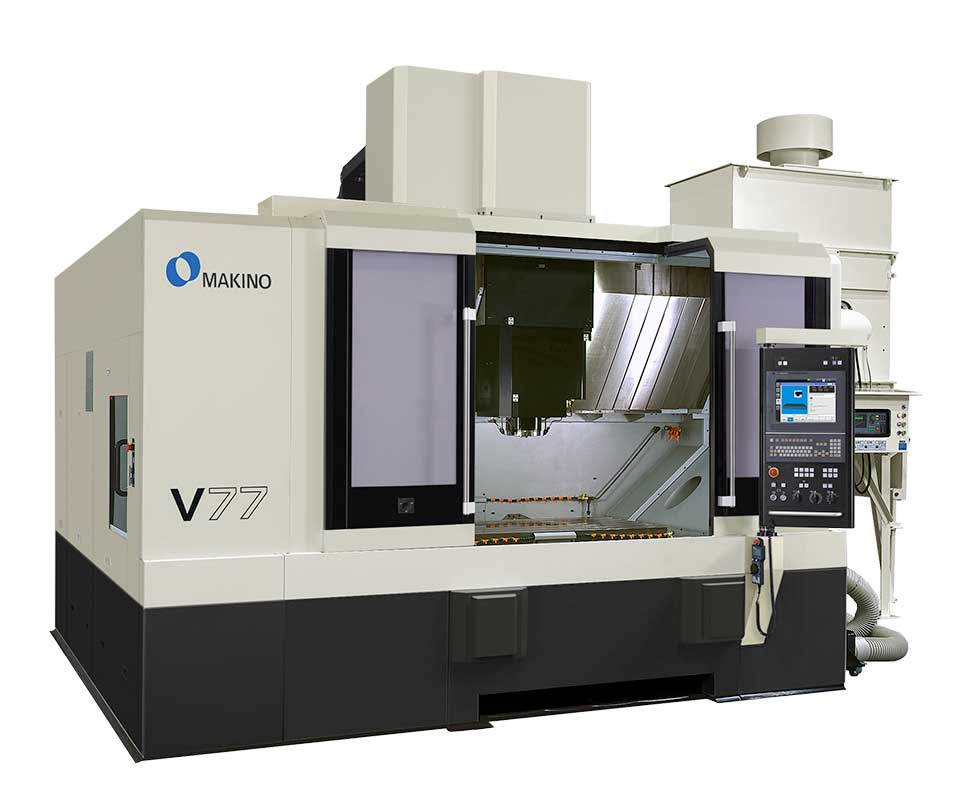

The Makino V77 (40 Taper) is a 3-axis vertical machining center designed for precision milling of medium to large die, mold, and other parts requiring micron-level accuracy and exceptional surface finish. Its configuration includes core-cooled spindle technology and thermal control features to minimize distortion, along with a 20,000 rpm CAT40 spindle (optional HSK-F63, 30,000 rpm) for efficient roughing and finishing of hardened materials. Integrated advanced control systems and optional high-capacity tool changers support demanding production environments where cycle time and surface quality are critical.

Key Capabilities

• Vertical spindle with 3-axis simultaneous CNC control for complex die/mold machining
• Core-cooled spindle and under-race lubrication system to minimize spindle distortion
• Twin shield-style splash guards for enhanced temperature stability
• Equipped with Makino Professional 6 control and proprietary Super Geometric Intelligence (SGI.5) servo technology for reduced cycle times
• Standard 30-position automatic tool changer, expandable up to 80 tools
• Supports workpieces up to 1,400 x 700 x 550 mm and 2,500 kg
• Maximum spindle speeds of 20,000 rpm (optional 30,000 rpm)
