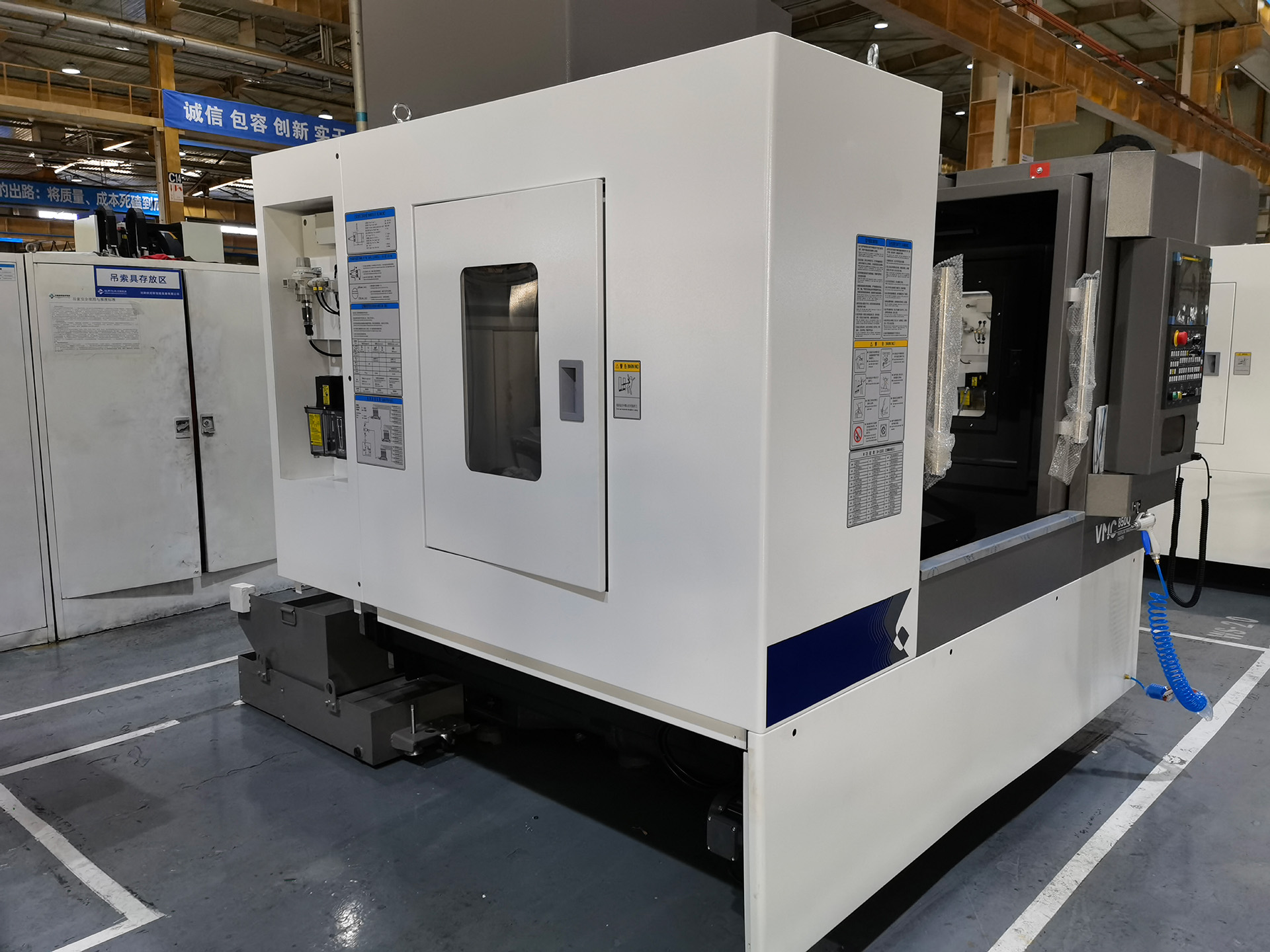

SMTCL VMC 850Q | Three-Axis Vertical Machining CenterAvailable
Save
Share
SMTCL
To be updated
Condition: New
Scale: Production
Status: Ready-to-Ship
Ships From: USA
Product Description
Summary
The SMTCL VMC 850Q is a three-axis vertical machining center designed for precision milling, drilling, and tapping of metallic workpieces. It features a high-strength integral cast bed, P-level roller guideways, and a high-precision BT40 spindle, with an automatic tool changer for efficient part processing. The machine is suitable for applications in general machinery, automotive parts, and various industrial manufacturing environments.
Key Capabilities
- Three-axis machining with X/Y/Z travels of 850/500/540 mm
- High-precision integral spindle with BT40 taper and up to 10,000 rpm

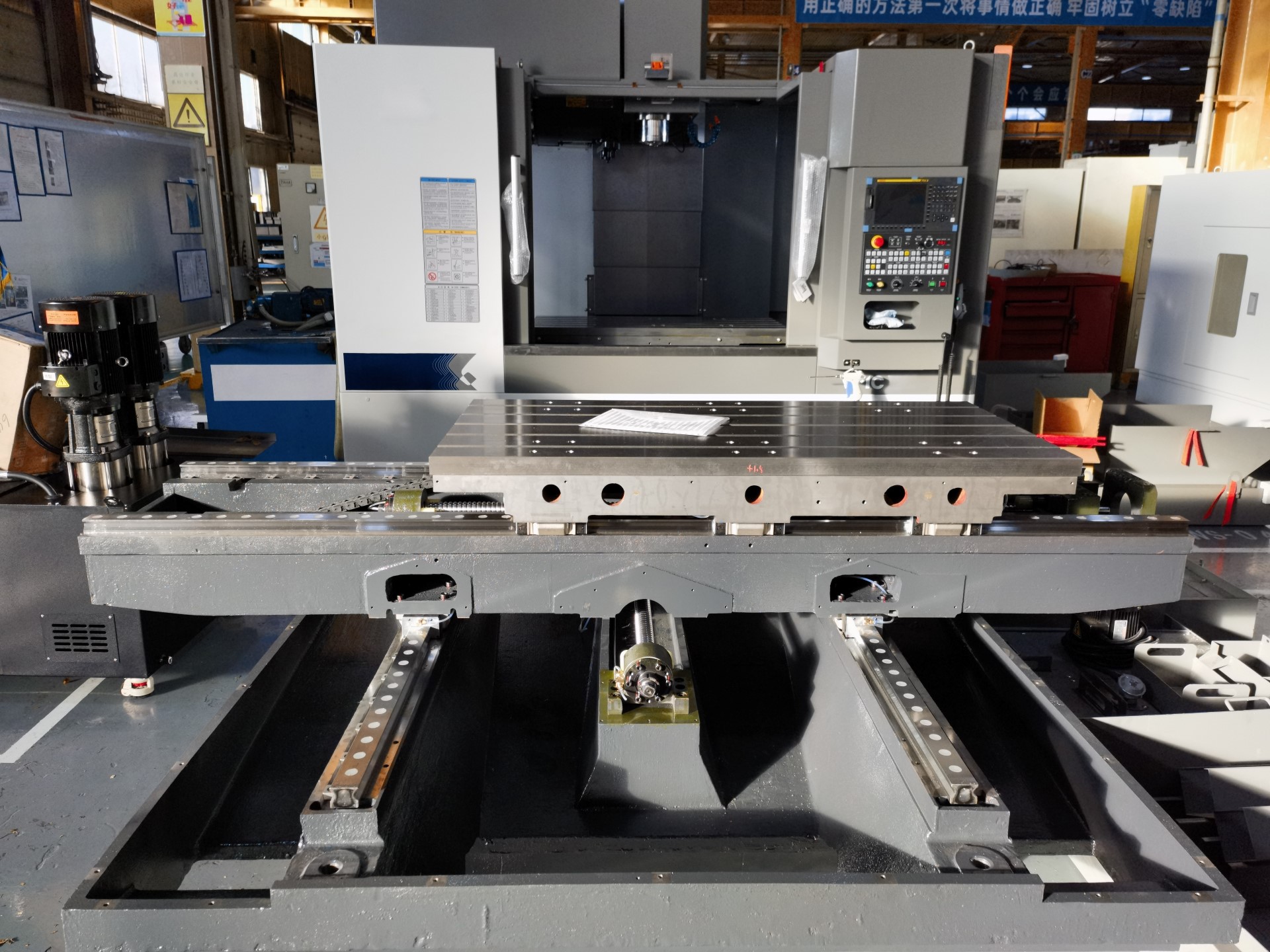

- P-level roller guideways for enhanced rigidity and motion accuracy

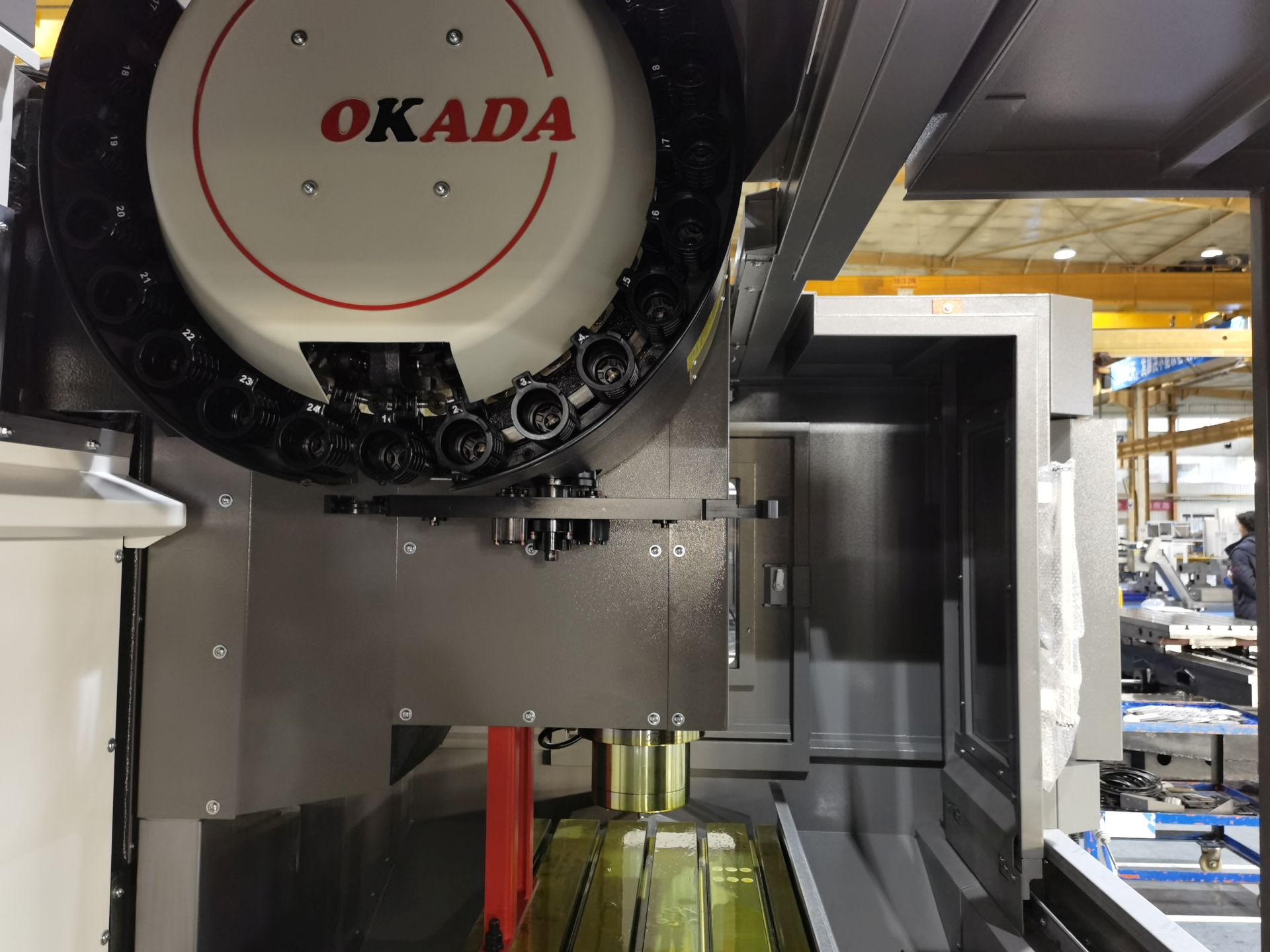

- 24-position automatic tool changer with robot arm and nearest tool selection
- Rapid traverse speed of 48 m/min on all axes
- Large span herringbone column structure for stability
- Double spiral chip remover integrated into the bed
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Table size | 1000 x 500 | mm |
| Maximum table load | 600 | kg |
| X/Y/Z axis travel | 850 / 500 / 540 | mm |
| Spindle taper | BT40 | |
| Maximum spindle speed | 10000 | r/min |
| Spindle motor power | 7.5 / 11 | kW |
| Rapid traverse (X/Y/Z) | 48 / 48 / 48 | m/min |
| Tool magazine capacity | 24 | pcs |
| Maximum tool length | 300 | mm |
| Tool change time (T-T) | 2.5 | s |
| Machine weight | 5100 | kg |
| Overall dimensions (L x W x H) | 2400 x 2975 x 2840 | mm |
