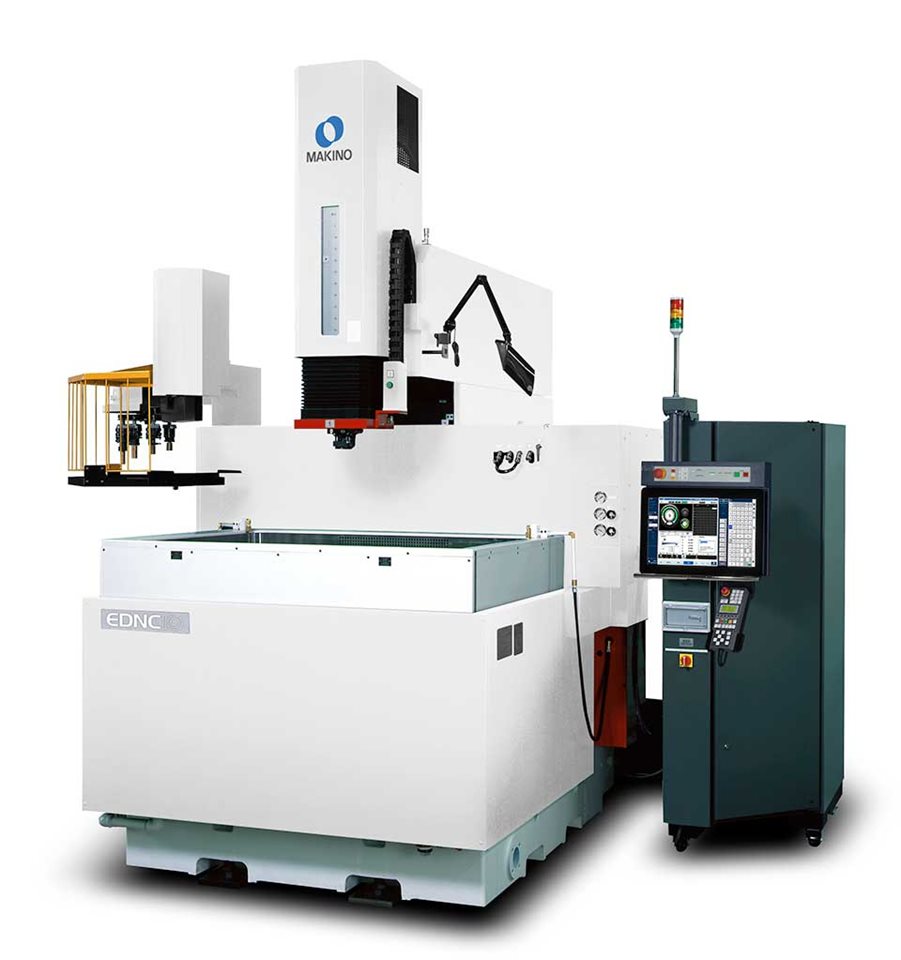

Makino EDNC10 | CNC Sinker EDMAvailable
Save
Share
Makino
To be updated
Condition: New
Scale: Production
Status: Ready-to-Ship
Ships From: USA
Product Description
Summary
The Makino EDNC10 is a CNC sinker electrical discharge machine designed for precision cavity and die machining by eroding material with controlled spark discharges. It delivers precise depth control and supports high-speed jump motions up to 20 m/min with 1.5G acceleration (optional), accommodating large workpieces while maintaining high accuracy. The machine is equipped for automated, unattended operation through optional automatic tool changers and advanced control features.
Key Capabilities
- Performs high-precision material removal for cavity, die, and mold applications using spark discharges
- Supports large part sizes up to 2,000 mm x 1,100 mm (wide-tank version)
- Precise Z-axis rapid motions with optional HS-Rib high-speed capability (20 m/min, 1.5G acceleration)
- Handles workpieces up to 3,000 kg
- Programmable rise-and-fall work tank and stationary table design for accessibility and thermal stability
- Optional ATC supports unattended multi-electrode machining
- Hyper-i control system with touchscreen and digital support features
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| X Travel | 1,000 | mm |
| Y Travel | 600 | mm |
| Z Travel | 500 | mm |
| Table Size | 1,300 x 950 | mm |
| Max Workpiece Weight | 3,000 | kg |
| ATC Capacity | 8, 16 | |
| Tank Size (Std) | 1,500 x 1,100 x 500 | mm |
| Max Electrode Weight | 100 | kg |
| Max Amperage | 60 ~ 240 | A |
| Rapid Traverse | 5 | m/min |
