Summary

The Miyano ABX-51SYY2 is a CNC turning center designed for simultaneous multi-axis machining of bar work up to 51mm in diameter. Its dual spindles and two Y-axis-equipped turrets enable process-intensive operations with flexible tooling layouts, supporting applications that require complex part geometries and high-throughput turning and milling. Notable features include up to 24 revolving tool stations and high-torque tool capability for demanding machining tasks.

Key Capabilities

• Twin-spindle configuration for synchronized front and back working

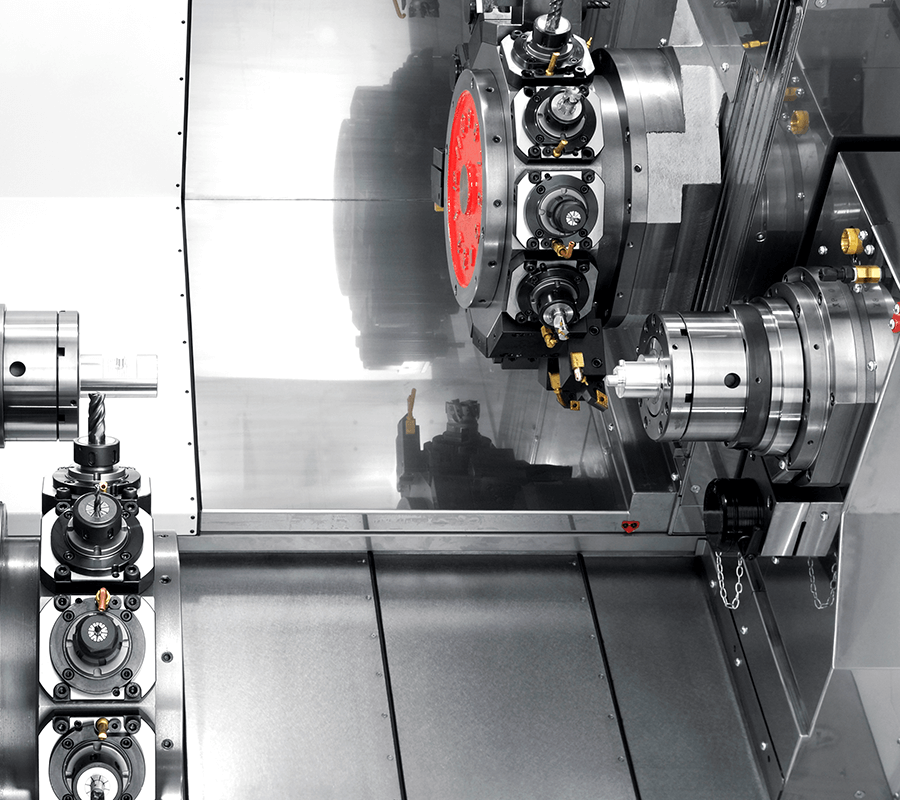

• Dual turrets, both with Y-axis functions, allowing flexible tooling and multi-process machining
• Supports up to 24 revolving tool stations for integrated milling and drilling
• Standard turning length up to 125mm per setup

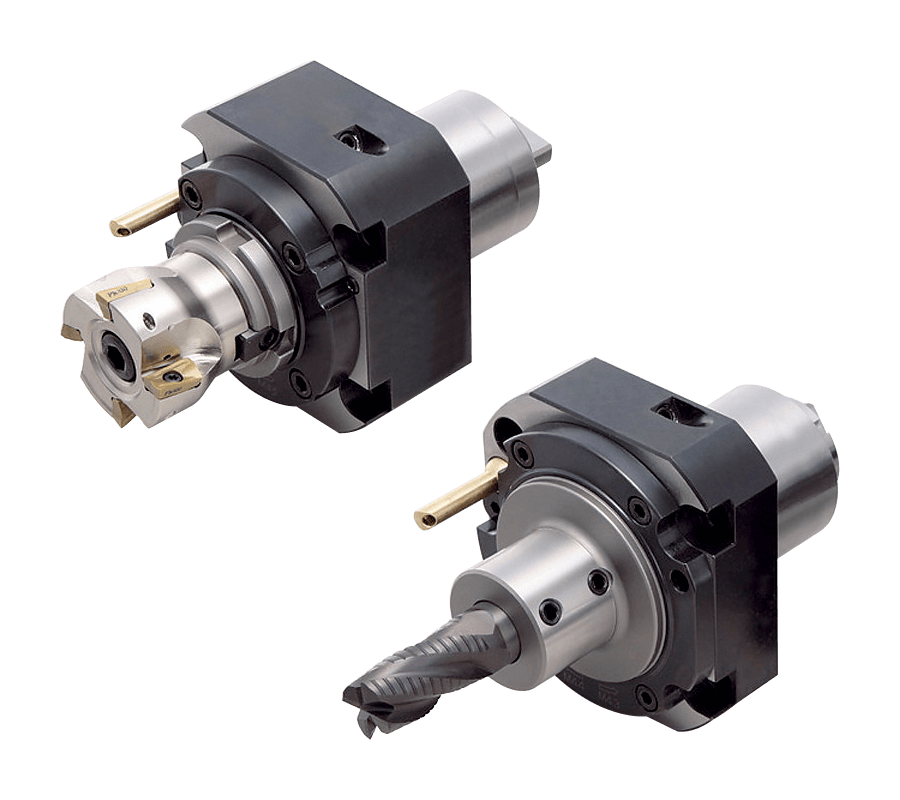

• Revolving tools with up to 40 Nm torque and speeds up to 6,000 min⁻¹
• Suited for bar-fed production requiring high rigidity and complex features

Key Specifications

| Parameter | Value | Unit |

| Maximum Bar Work Diameter (SP1/SP2) | 51 / 51 | mm |

| Standard Turning Length | 125 | mm |

| Main/Secondary Spindle Speed Range | 50–5,000 | min⁻¹ |

| Maximum Number of Revolving Tools | 24 | |

| Revolving Tool Speed Range | 60–6,000 | min⁻¹ |

| Spindle Motor Power (SP1/SP2, 30min.) | 15 / 7.5 | kW |

| Slide Stroke (Y1, Y2 axis) | ±40 | mm |
