Summary

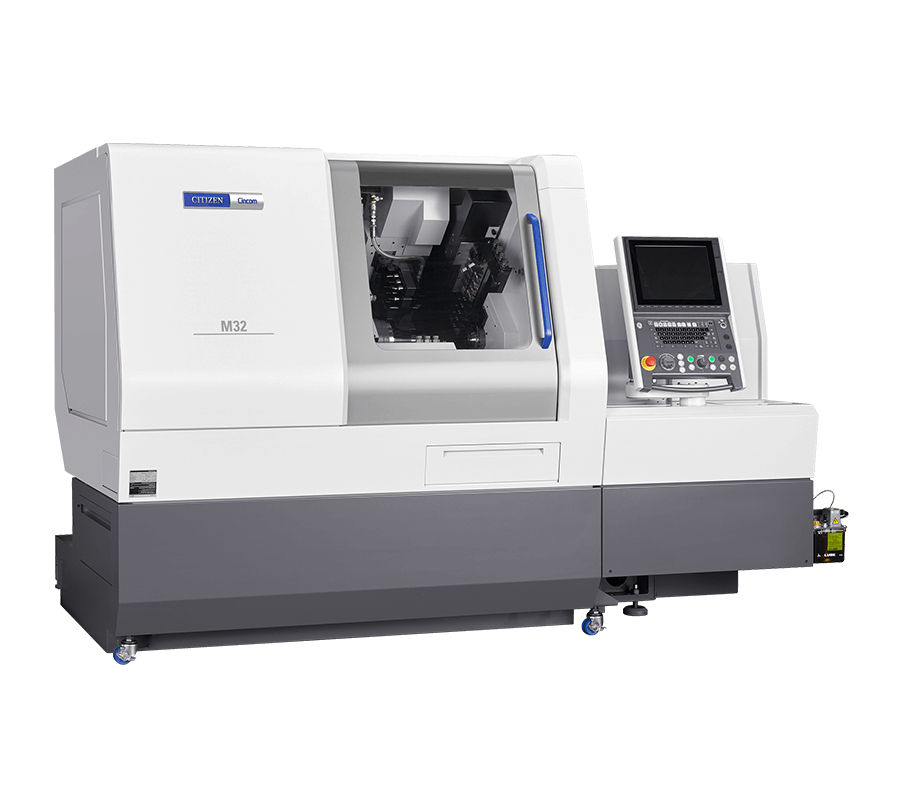

The Citizen Machinery Cincom M32VIII is a Swiss-type CNC automatic lathe designed for complex, multi-process turning and milling of bar stock up to 32mm diameter. The machine employs a composite gang tool post with programmable B axis, turret tooling with single-drive rotary tools, and a back tool post supporting adjustable angle spindles for advanced part geometries. Features include high spindle speeds, large tool capacity, and optional LFV (Low Frequency Vibration) chip control for reliable performance during intricate, multi-axis machining operations.

Key Capabilities

• Swiss-type sliding headstock for long-part machining up to 320mm per chucking

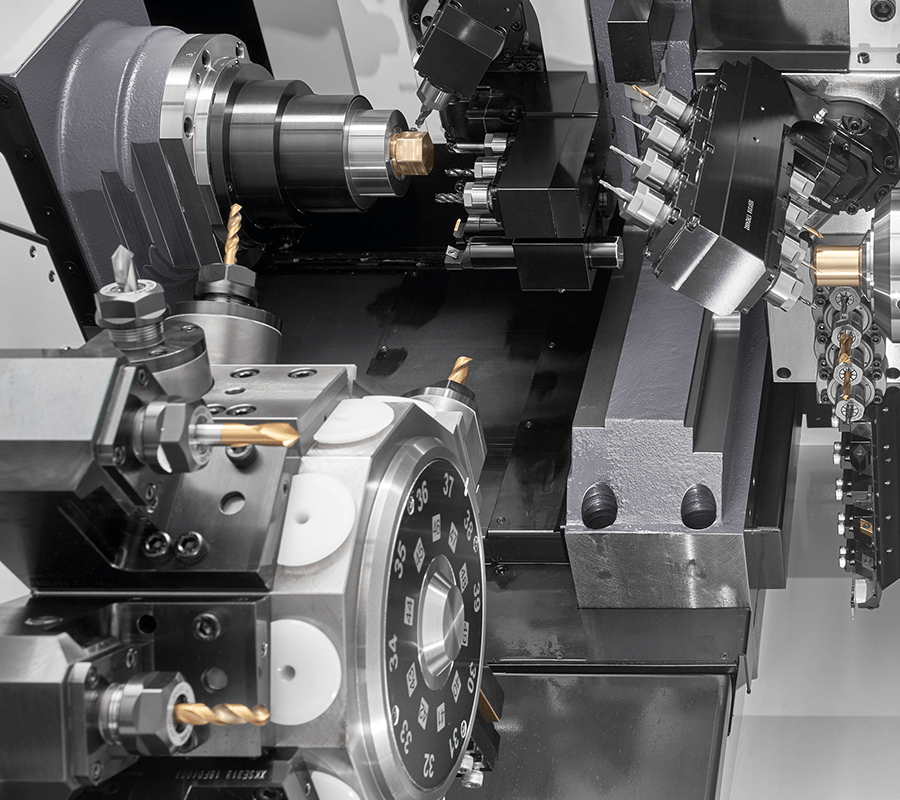

• Simultaneous machining with gang and turret tool posts, plus programmable B-axis for angled features

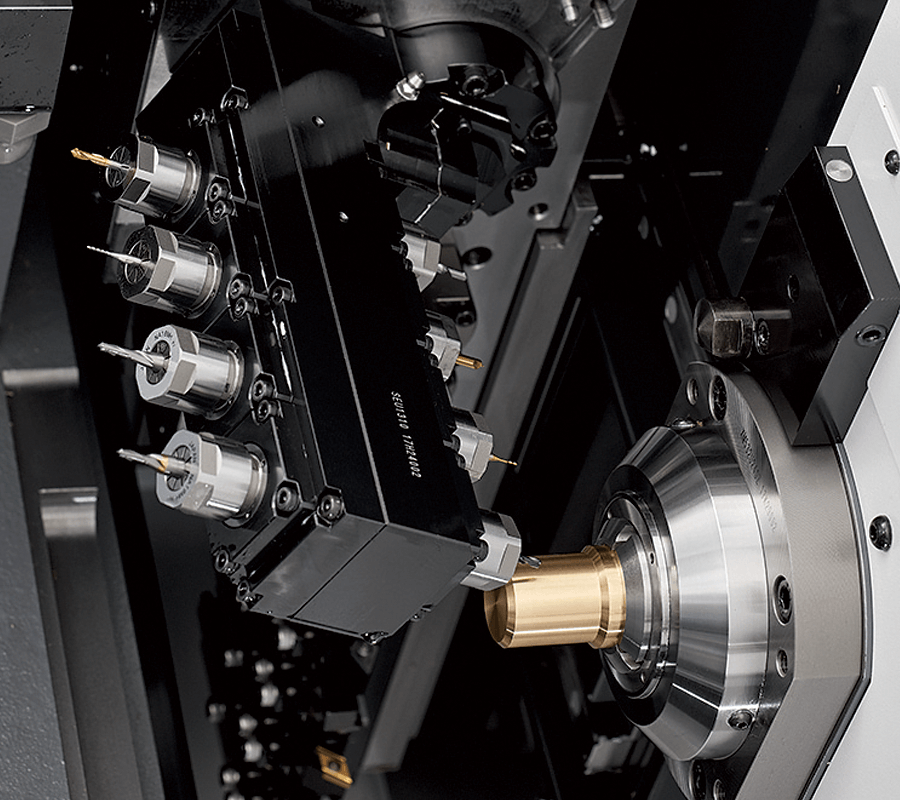

• Rotary tooling on gang, turret, and back tool posts for driven-tool milling, drilling, and tapping
• Maximum bar capacity of 32mm (optional 38mm), supporting both front and back machining
• Supports LFV chip control in multiple modes (optional)
• Touch-panel HMI and new NC unit for control and program management
• Up to 36+α tools, including up to 10 turret stations and dedicated cross, back, and B-axis positions
