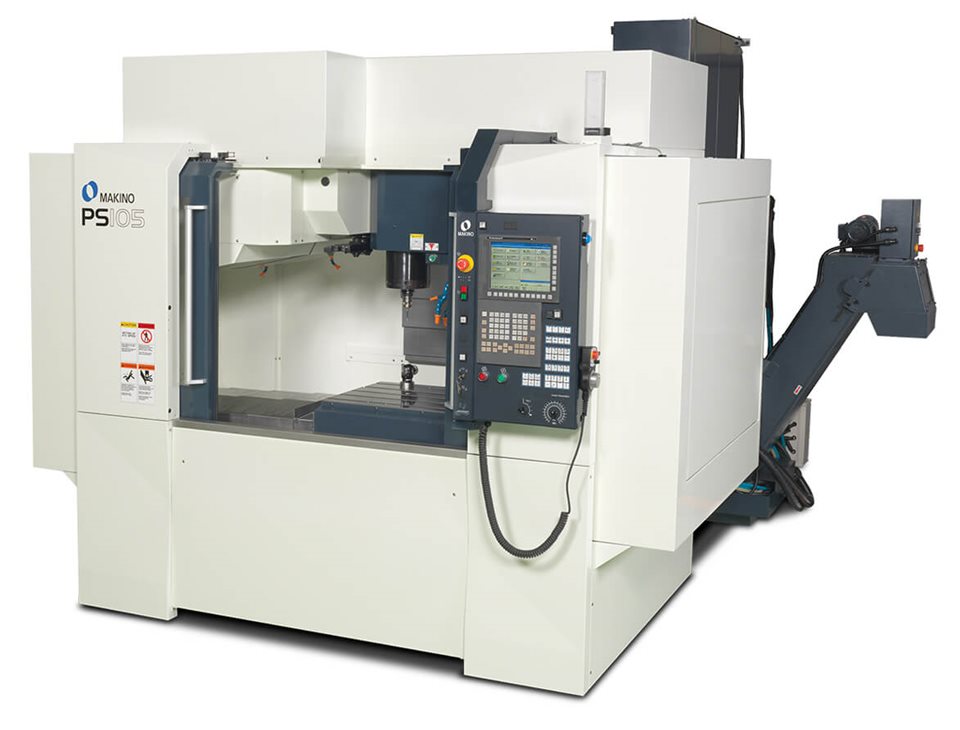

Makino PS105 | 3-Axis Vertical Machining CenterAvailable
Save
Share
Makino
To be updated
Condition: New
Scale: Production
Status: Ready-to-Ship
Ships From: USA
Product Description
Summary
The Makino PS105 is a 3-axis vertical machining center designed for precision metal cutting in production environments. It features a high-speed spindle, advanced thermal control, and a large work envelope, supporting demanding applications in industries such as aerospace, medical, and automotive. Key differentiators include core-cooled ball screws, high-torque CAT40 spindle with 14,000 RPM capacity, and advanced chip/coolant management.
Key Capabilities
- 3-axis simultaneous machining with X, Y, Z travel
- 14,000 RPM CAT40 spindle (HSK-63A optional)
- Core-cooled ball screws and thermally controlled lubrication
- Automatic tool changer with 30-tool capacity (60 tool option)
- Dual-speed tool change system
- Advanced chip and coolant management with spiral conveyors and flush systems
- 10.4-inch color touch-screen Pro P Control based on Fanuc hardware
- Maximum payload support for 800 kg workpieces
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Table Size | 1,300 x 510 | mm |
| X-Axis Travel | 1,050 | mm |
| Y-Axis Travel | 510 | mm |
| Z-Axis Travel | 460 | mm |
| Spindle Speed | 14,000 | rpm |
| Spindle Taper | CAT40 (HSK-A63 opt) | - |
| Rapid Traverse X | 48,000 | mm/min |
| Rapid Traverse Y/Z | 36,000 | mm/min |
| Cutting Feedrate | 30,000 | mm/min |
| Max. Workpiece Weight | 800 | kg |
| ATC Capacity | 30 (60 optional) | tools |
| Max. Tool Weight | 8 | kg |
