Summary

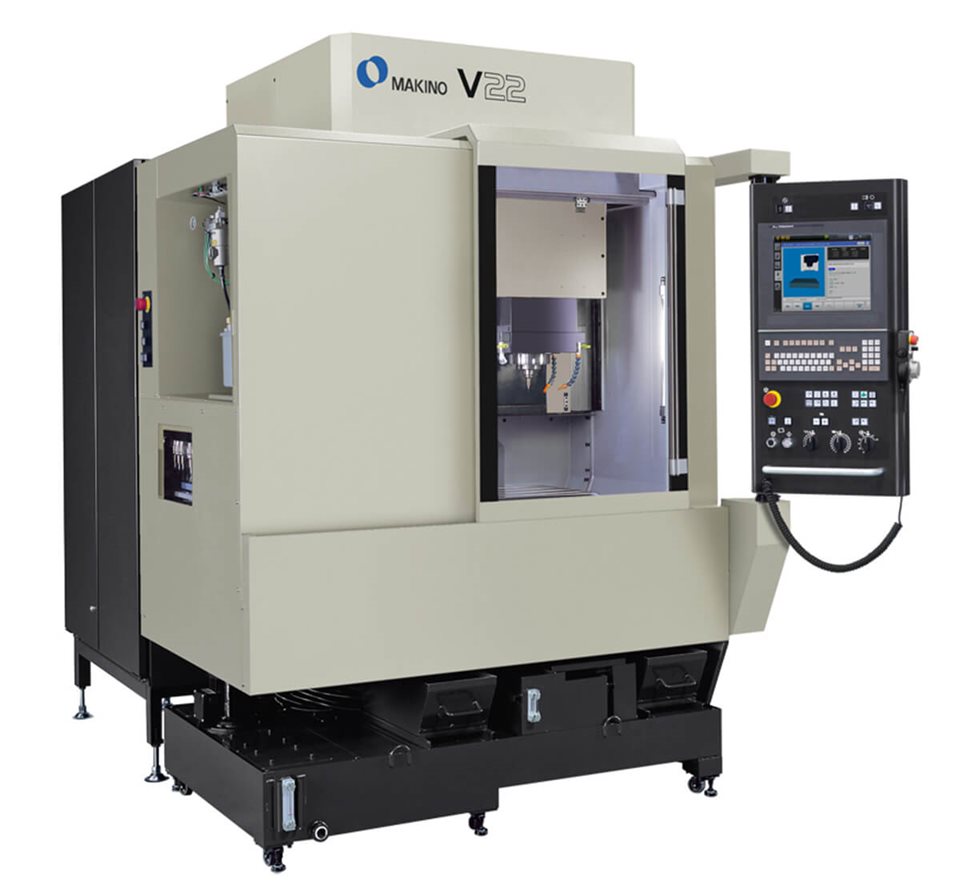

The Makino V22 is a high-speed vertical 3-axis CNC machining center engineered for precision machining of complex materials including ceramics and intricate cores and cavities. It features a 40,000-rpm spindle with core-cooling and under-race lubrication, and a compact, rigid construction optimized for small workpieces. Notable technical characteristics include an integrally casted structure for stability and a rapid traverse system for increased productivity.

Key Capabilities

• High-speed machining with 40,000-rpm spindle and rapid traverse
• Precision processing of ceramics, intricate cores, and cavities
• Rigid integrally casted slideways to minimize vibration and distortion
• Automatic tool length measurement option for accurate tool calibration
• Compact footprint with 900mm table height and rotatable control panel
• Suitable for small workpieces up to 100 kg
