Neware CT-8008-5V300A-NTA Battery Testing System
Available

Save

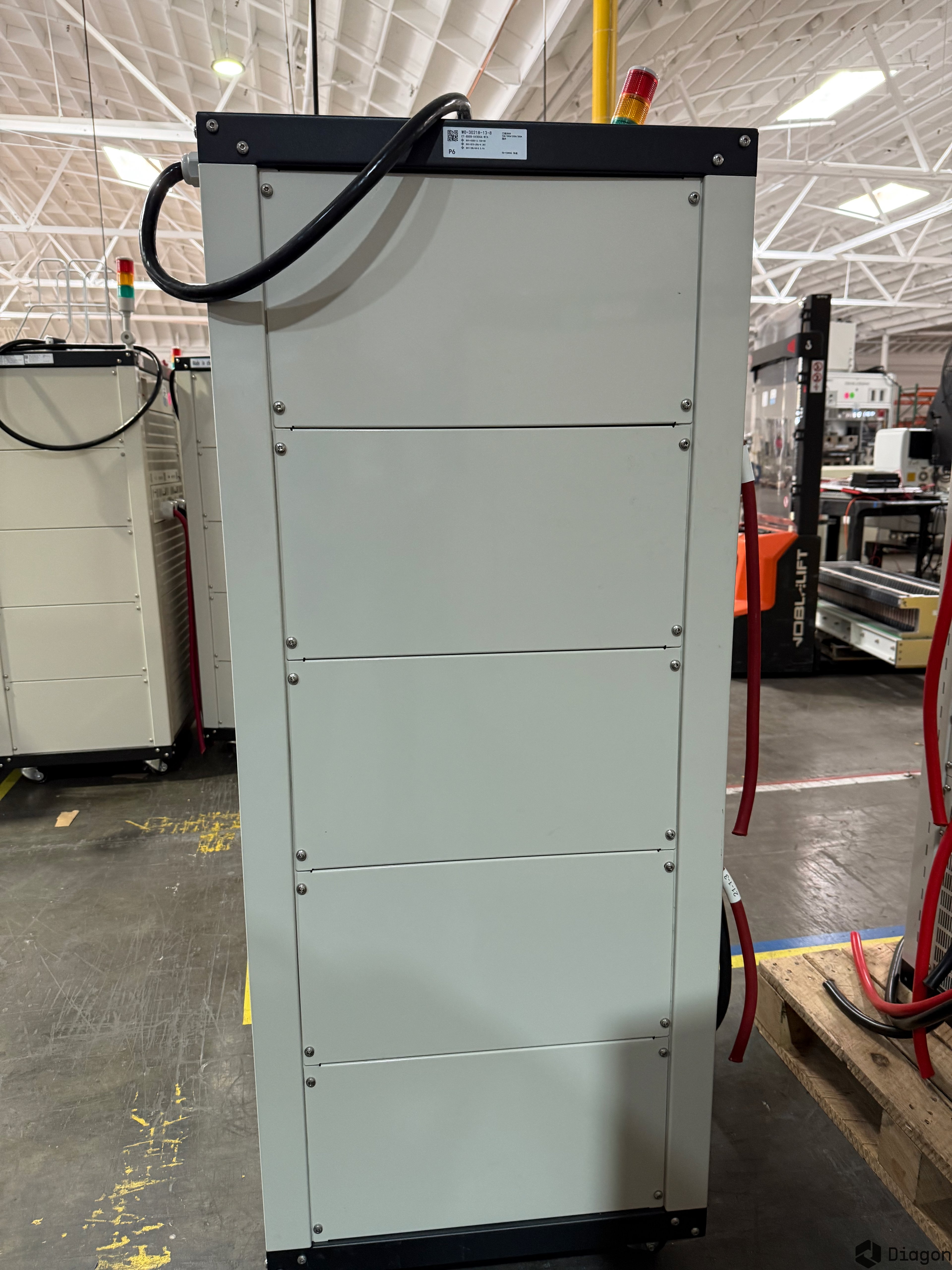

Main product image

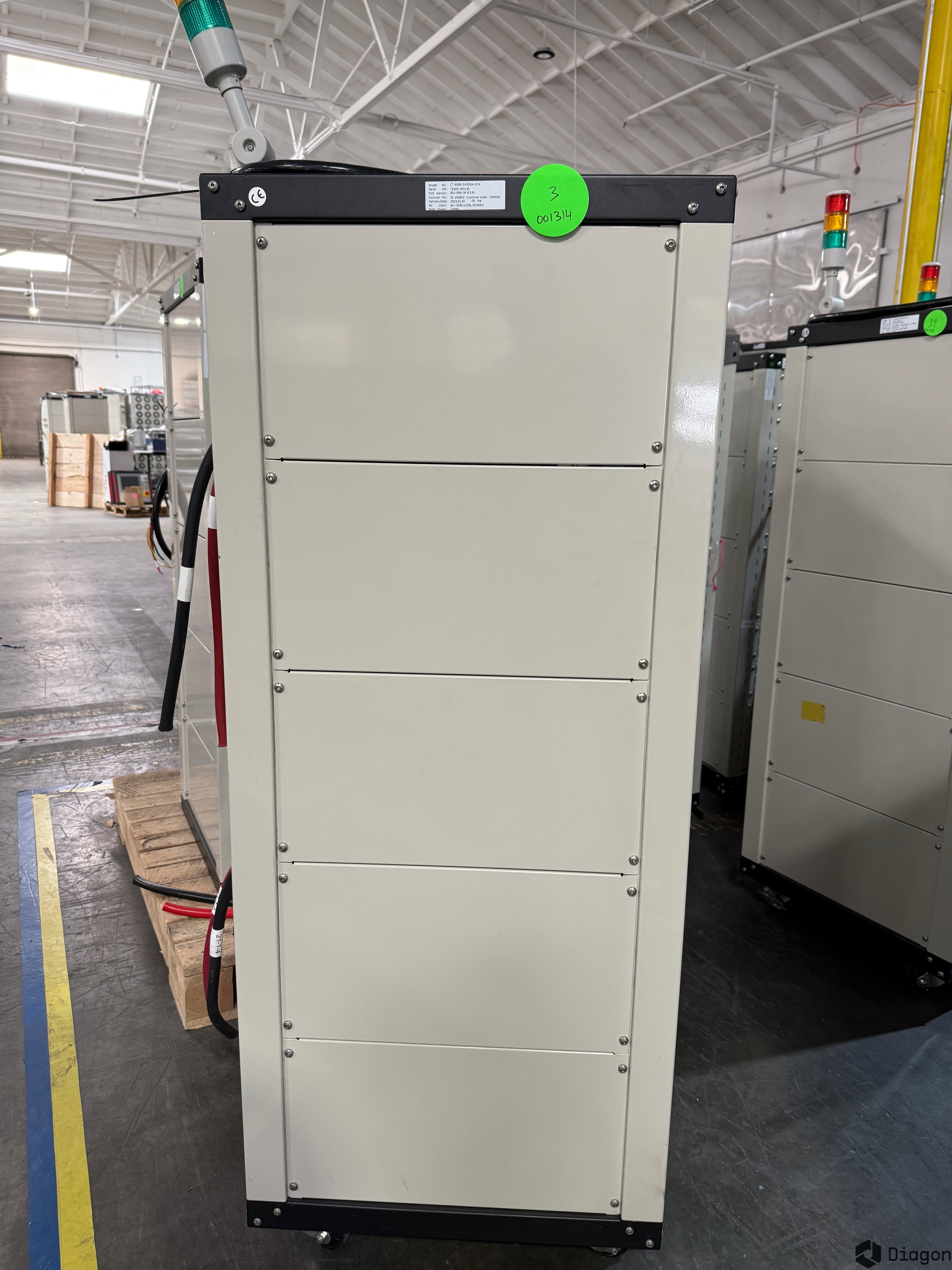

Product image 2

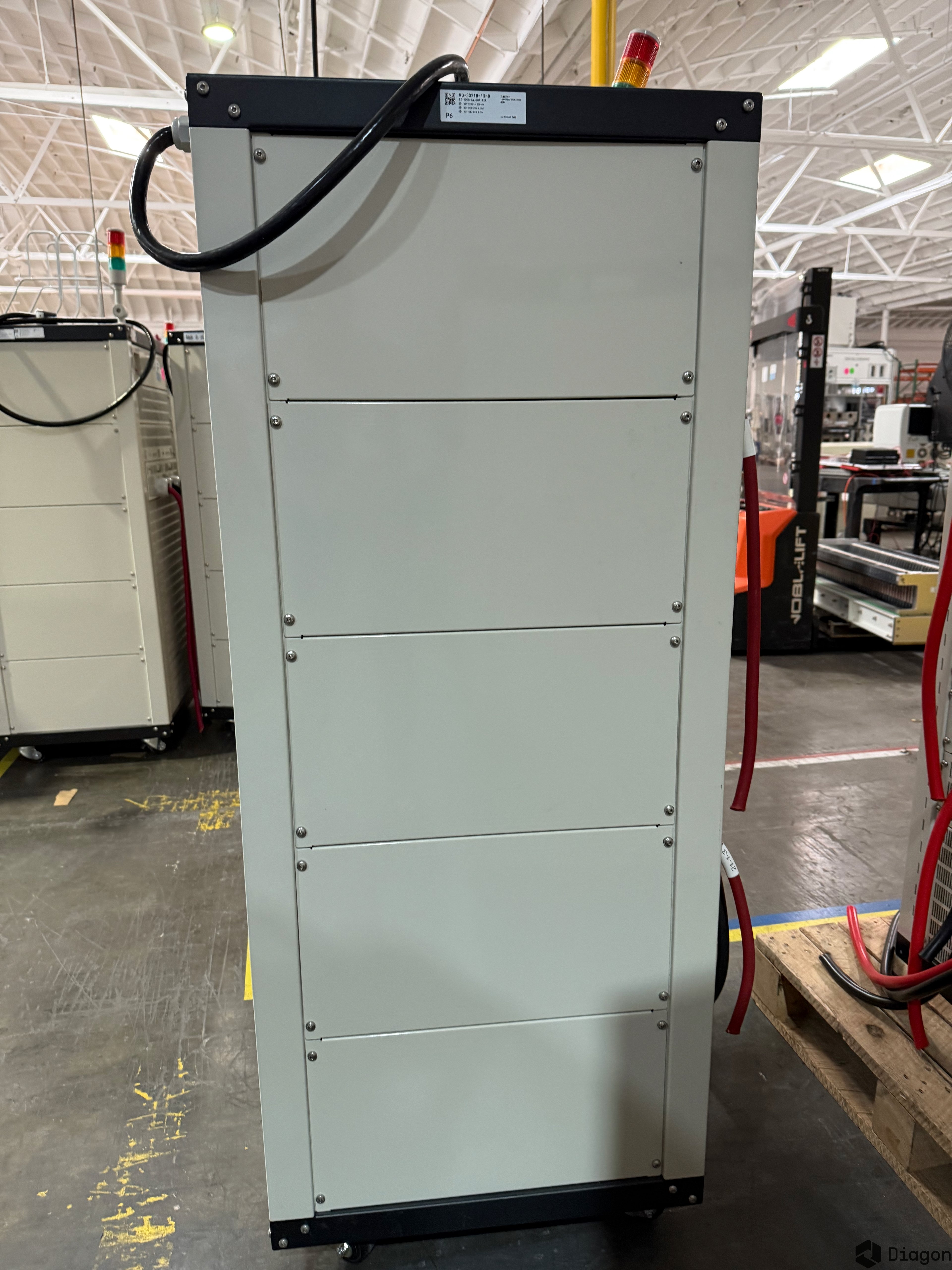

Product image 3

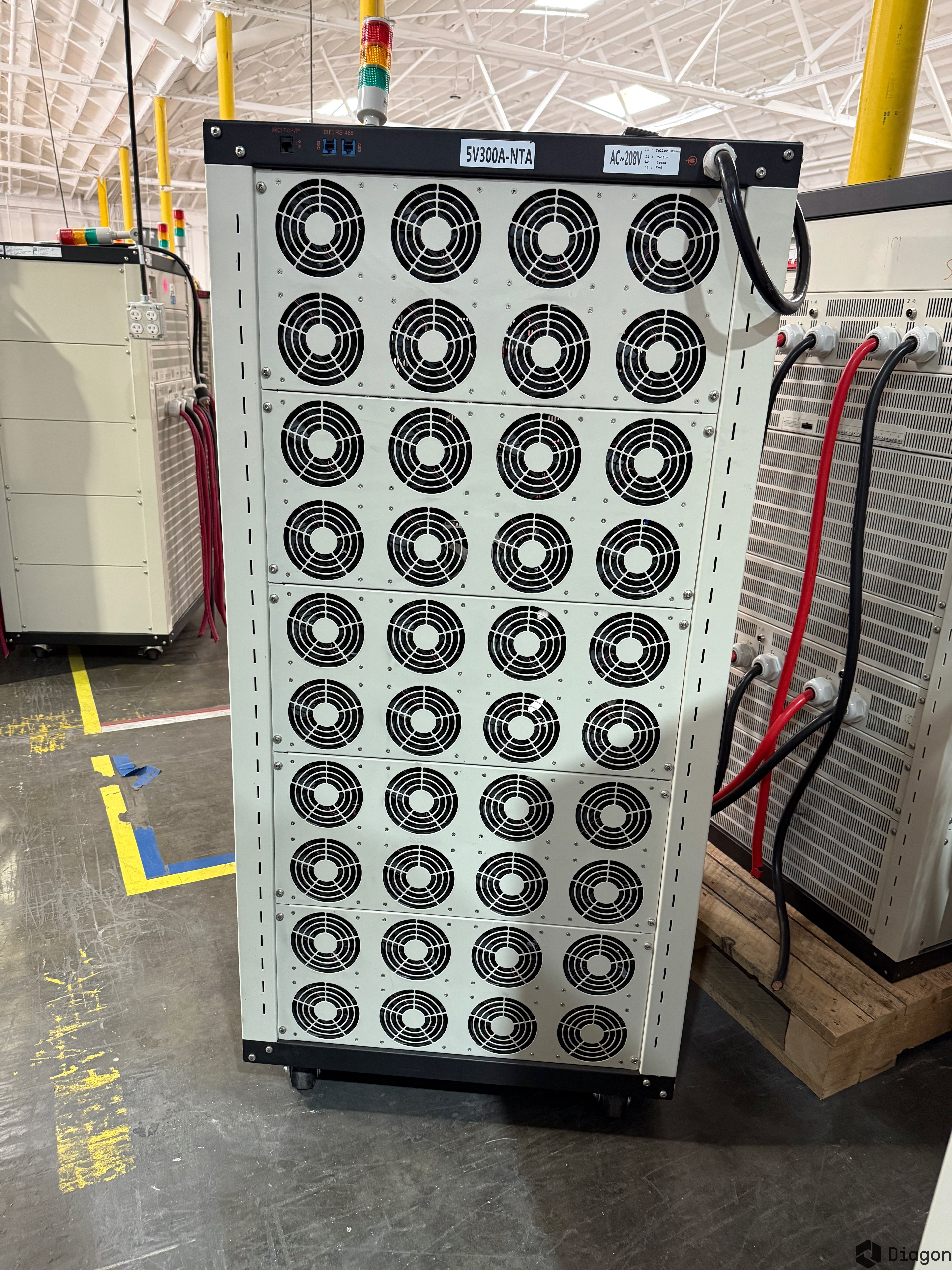

Product image 4
Company Logo Image

Neware

China
Condition: Used - Excellent
Scale: Pilot
Type: Battery Cyclers
Status: Ready-to-Ship
Ships From: California, USA

Product Description

The Neware CT-8008-5V300A-NTA - Single unit Battery Testing System is a high-precision battery cycling and testing equipment designed for comprehensive battery cell evaluation with advanced driving cycle simulation capabilities.

Key Features

  • High-precision testing with 16-bit AD/DA conversion and ±0.05% full scale accuracy
  • Quad current range (0.05A-10A, 10A-100A, 100A-200A, 200A-300A) for versatile testing applications
  • Powerful 1500W output per channel with fast response time (<20ms)
  • Multiple operation modes including constant current, constant voltage, constant power, constant resistance, pulse, and simulation
  • 4-wire connection method for accurate voltage measurement
  • Comprehensive pulse testing capabilities with minimum pulse width of 500ms
  • Built-in thermocouple temperature monitoring (-200°C to 260°C range)
  • Advanced cycling capabilities with up to 65,535 cycles and 254 steps per program
  • Automated switching between charge and discharge modes for pulse testing
  • DCIR (Direct Current Internal Resistance) measurement support

Technical Specifications

Electrical Specifications

  • AC Input: 208V ±10%, 60Hz
  • Power Consumption: 21.3kW
  • Resolution: 16-bit AD/DA conversion
  • Input Impedance: ≥1MΩ

Voltage Specifications

  • Measuring Range: 25mV to 5V
  • Minimum Discharge Voltage: 2.5V
  • Accuracy: ±0.05% of full scale
  • Stability: ±0.1% of full scale

Current Specifications

  • Current Range: Quad Range (0.05A-10A, 10A-100A, 100A-200A, 200A-300A)
  • Accuracy: ±0.05% of full scale
  • End cut-off current: 20mA/200mA/400mA/600mA
  • Stability: ±0.1% of full scale

Power Specifications

  • Output Power: 1500W per channel
  • Power Stability: ±0.2% of full scale

Time Control

  • Rise Time: <20ms (10% to 90% Range)
  • Step Time: Up to 365*24 hours per step
  • Time Format: 00:00:00:000 (h:min:s:ms)

Data Acquisition

  • Time Interval: 10ms
  • Voltage Interval: 10mV
  • Current Interval: 20mA; 200mA; 400mA; 600mA
  • Sampling Frequency: 100Hz

Temperature Measurement

  • Range: -200°C to 260°C
  • Accuracy: ±1°C
  • Resolution: 0.1°C

Physical Specifications

  • Dimensions (W×D×H): Two cabinets, each 730mm×600mm×1520mm (30U, 24" rack)
  • Channels per Cabinet: 8
  • Noise Level: <85dB

Operating Environment

  • Operating Temperature: 0°C to 40°C (optimal accuracy at 25°C ±10°C)
  • Storage Temperature: -10°C to 50°C
  • Operating Humidity: ≤70% RH
  • Storage Humidity: ≤80% RH

The system includes TCP/IP communication protocol and supports various battery holder types including universal holders and ring nose clips. Comprehensive software protection features include power-off data protection, offline operation capability, user-defined safety tolerances, and anti-reverse function. Data management is handled through MySQL database with multiple export formats including Excel 2003/2010, TXT, and Graph.
