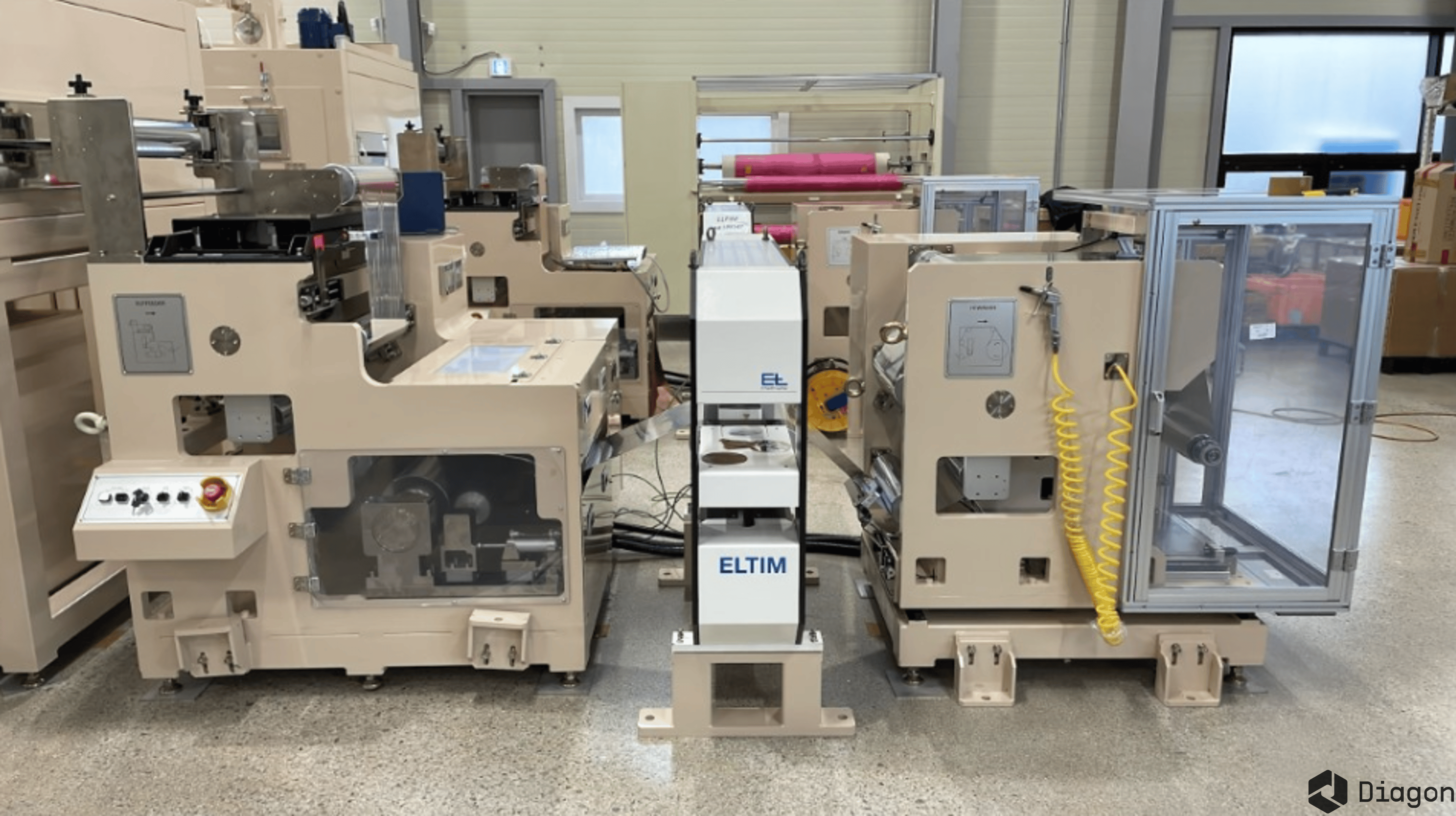

The Battery Electrode Coating Line is a precision manufacturing system designed for applying electrode slurry coatings onto aluminum and copper foil substrates for lithium-ion battery production, supporting both intermittent and continuous coating applications.

Key Features

• Dual coating capability supporting both intermittent and continuous coating types with slot die and comma reverse methods
• Precision coating with ±1.5% surface density accuracy and ±0.5mm position accuracy for top and bottom layers

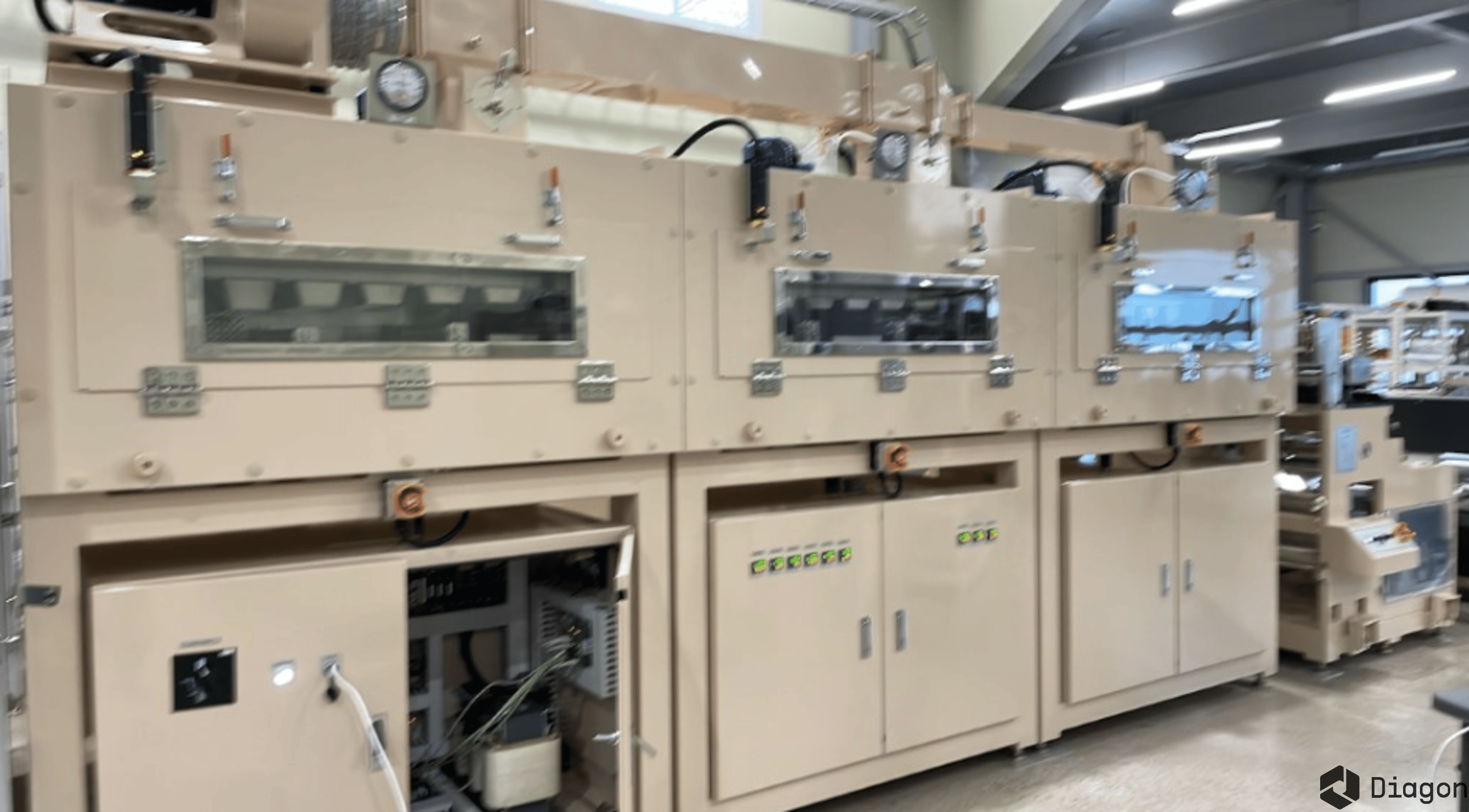

• Three-zone drying system with 4.5m total length and temperature control from 60-150°C (±3°C)
• Compatible with multiple chemistry types including NCM, LCO, LFP cathodes and graphite anodes
• Processing speeds up to 10m/min with typical operation at 3m/min (adjustable based on slurry conditions)
• Integrated β-ray densimeter for real-time coating density measurement
• Mitsubishi PLC/Servo motor control system for precise operation and automation

Technical Specifications

• Machine Dimensions: 11,810 × 1,878 × 2,863mm (L×W×H)
• Weight: Approximately 10 tons
• Roll Width: Maximum 400mm
• Coating Width: Maximum 300mm
• Foil Compatibility:
  • Aluminum foil (10-30μm thickness) for cathodes
  • Copper foil (6-30μm thickness) for anodes
• Slurry Tank Volume: 30 liters (separate tanks for cathode and anode)
• Drying System: 3 zones of 1.5m each (4.5m total) with electric heaters
• Temperature Range: 60-150°C with ±1.5°C TD and ±3°C MD accuracy
• Coating Precision:
  • Thickness uniformity: ±1.5% for coatings >100μm
  • Position accuracy: ±0.5mm for top and bottom layers
  • Edge mismatch: ≤±0.3mm
• Intermittent Coating Capability:
  • Coating length: 40-2,000mm
  • Intermittent gap: 7-50mm
• Power Requirements: AC 380V/3P/50Hz, 100kW maximum consumption
• Compressed Air: 0.5MPa

The system includes auxiliary equipment such as roll storage racks, roll transfer carts (100kg capacity), and dry room material racks. The machine is designed for integration into battery manufacturing lines with comprehensive documentation available for implementation planning.
