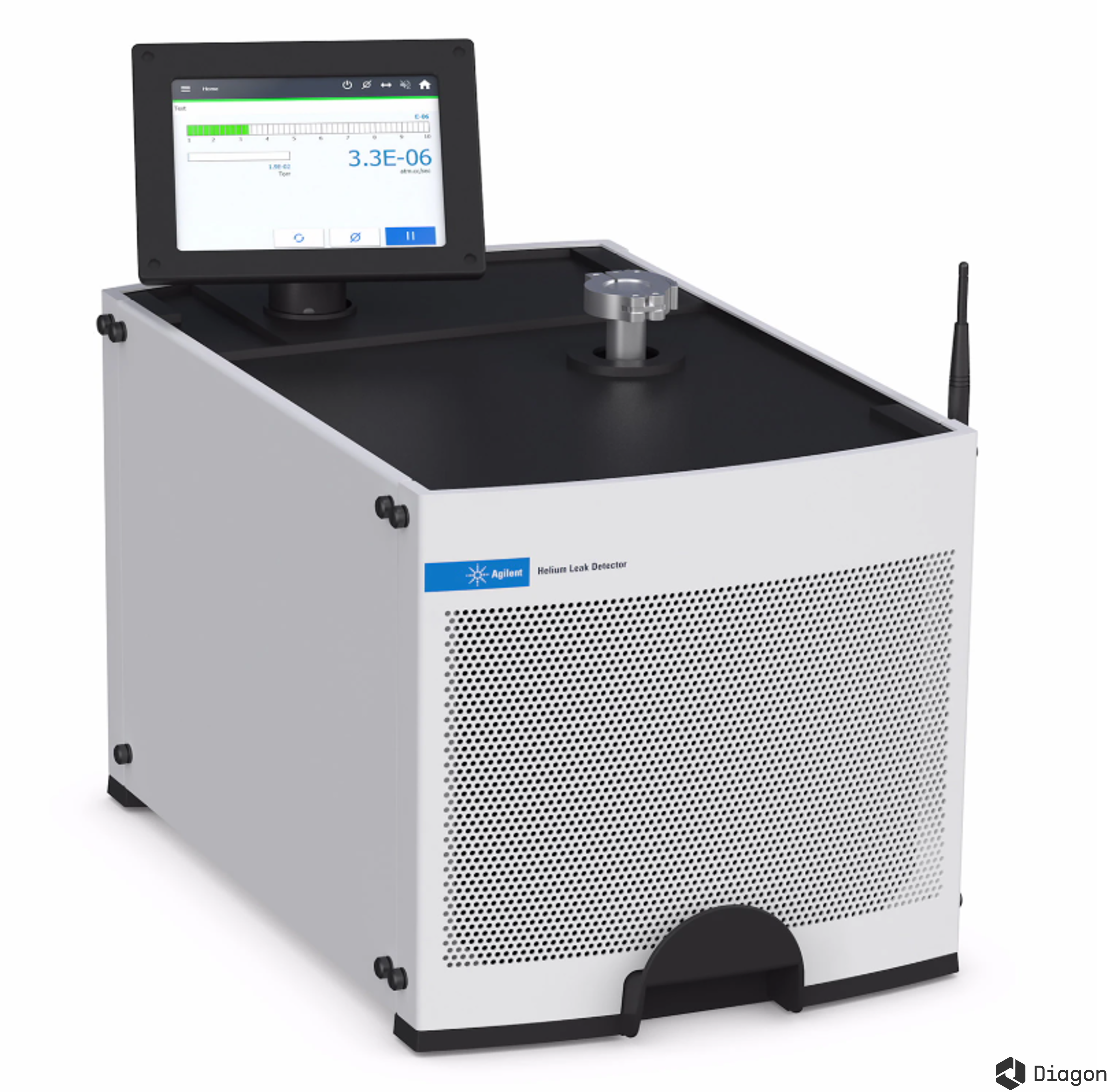

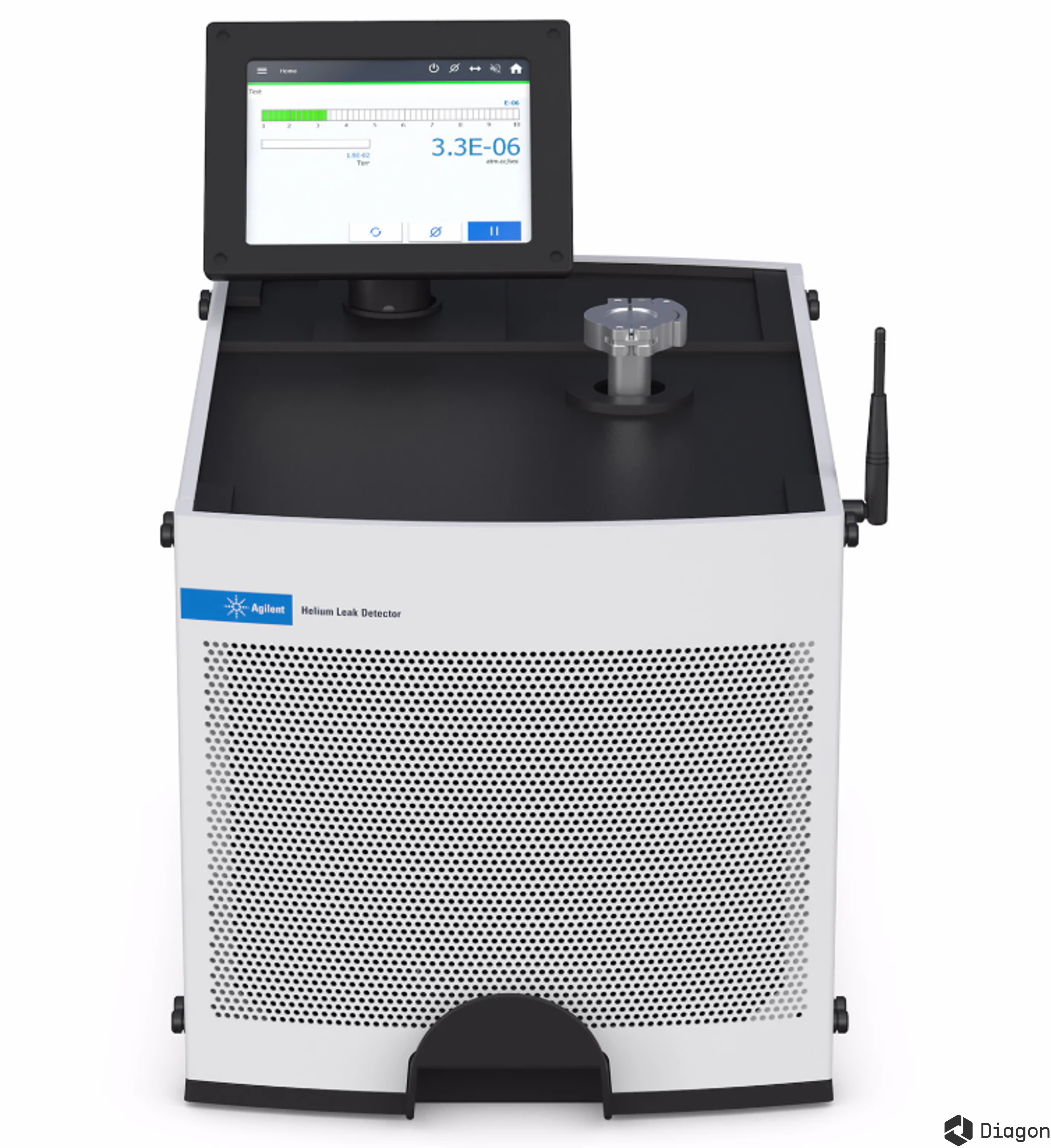

Agilent HLD BD15 Bench Dry Helium Leak Detector integrates precision mass spectrometry with oil-free vacuum technology for accurate detection and measurement of helium-traced leaks in enclosed devices or systems.

Key Features

• Six application setup guides for optimal instrument configuration, ensuring proper parameter settings for thorough and efficient testing

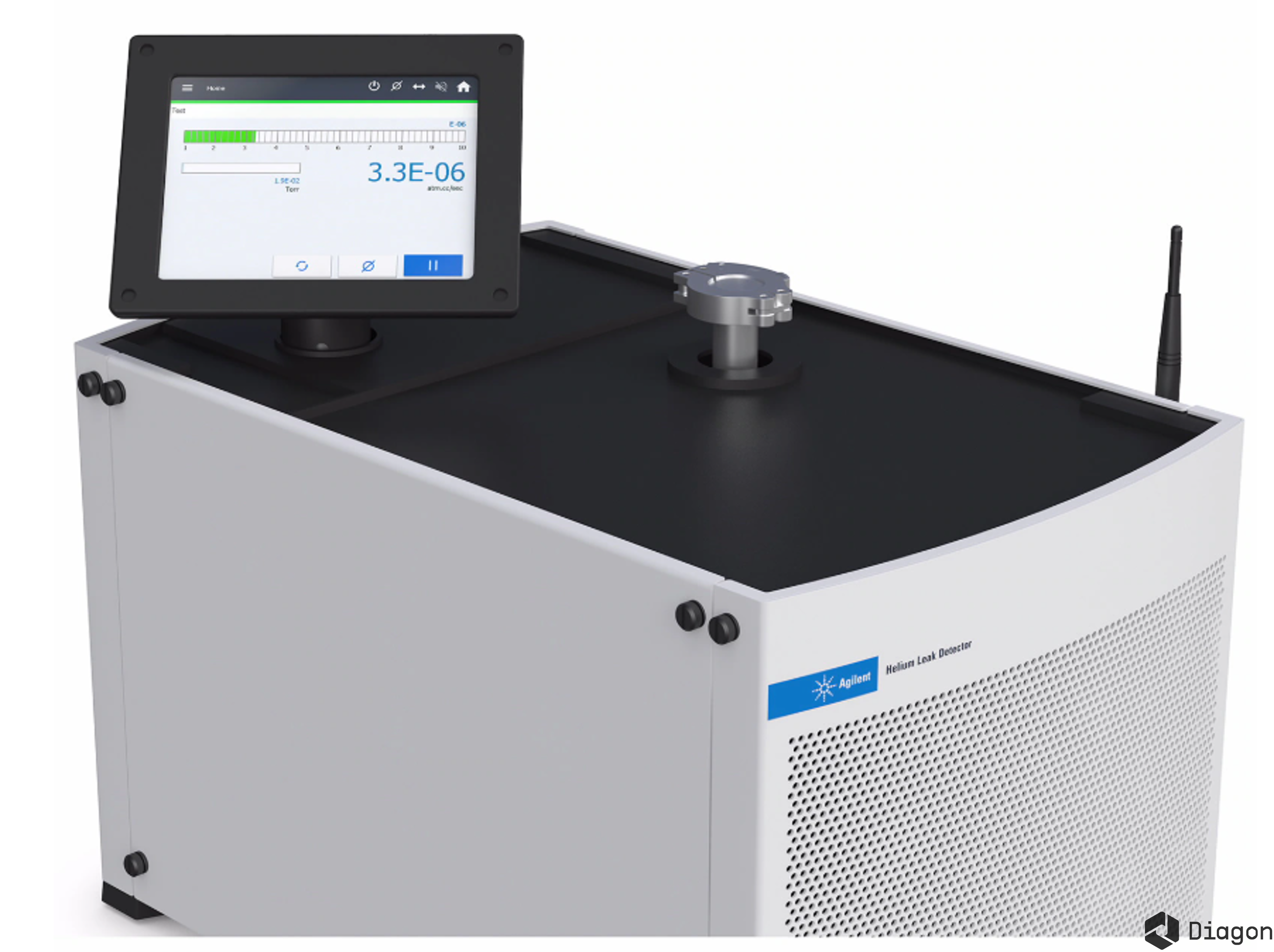

• Large, durable 21 cm (8.4 inch) industrial touch screen that rotates 180° for ideal viewing angle during operation
• Intuitive user interface with immediate access to frequently used features and flat menu structure for quick settings navigation
• Enhanced charting capabilities including zoom functionality, color-coded set points, and time-based plot records of leak rate and pressure
• Oil-free IDP-15 dry scroll pump (15 m³/h pumping speed) eliminates risk of test part contamination while providing fast evacuation and rapid cleanup
• Automated test capabilities with programmable test cycles for enhanced repeatability and efficiency
• Ultra-high sensitivity of 5x10⁻¹² mbar•L/s for detecting extremely small leaks in critical applications

System is designed as a precise instrument and robust workhorse for industrial and research environments, with comprehensive documentation available upon request.

Additional Documentation (NDA Required)

• Detailed Technical Specifications

Key Technical Specifications
