Pilot-scale slot die electrode coater for anode manufacturing, featuring integrated three-zone drying, inline density measurement, and roll-to-roll web handling for graphite electrode production.

Key Features

• Slot die coating system supporting continuous, intermittent, and stripe coating modes with progressive cavity pump delivery and multi-stage filtration (magnetic, mesh, and capsule filters)

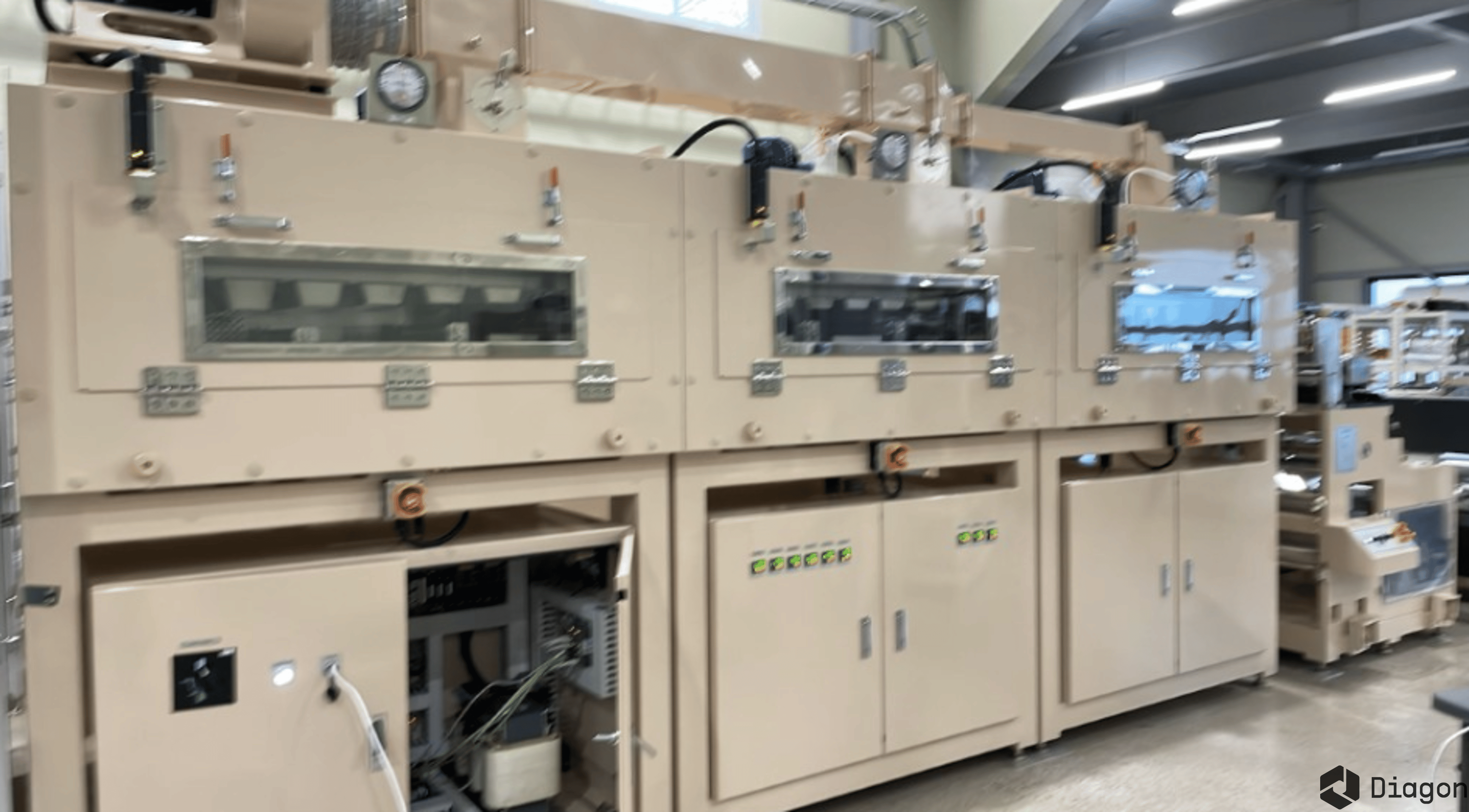

• Three-zone electric drying system (4.5m total length) with independent temperature control (60–150°C) and top/bottom punching-type nozzle air delivery
• Precision coating tolerances including ±1.5% surface density accuracy, ±0.3mm top/bottom alignment, and thickness uniformity from ±1.5% to ±5.0% depending on coating thickness
• Integrated β-ray densimeter for inline density measurement with EPC-controlled web tension up to 250N

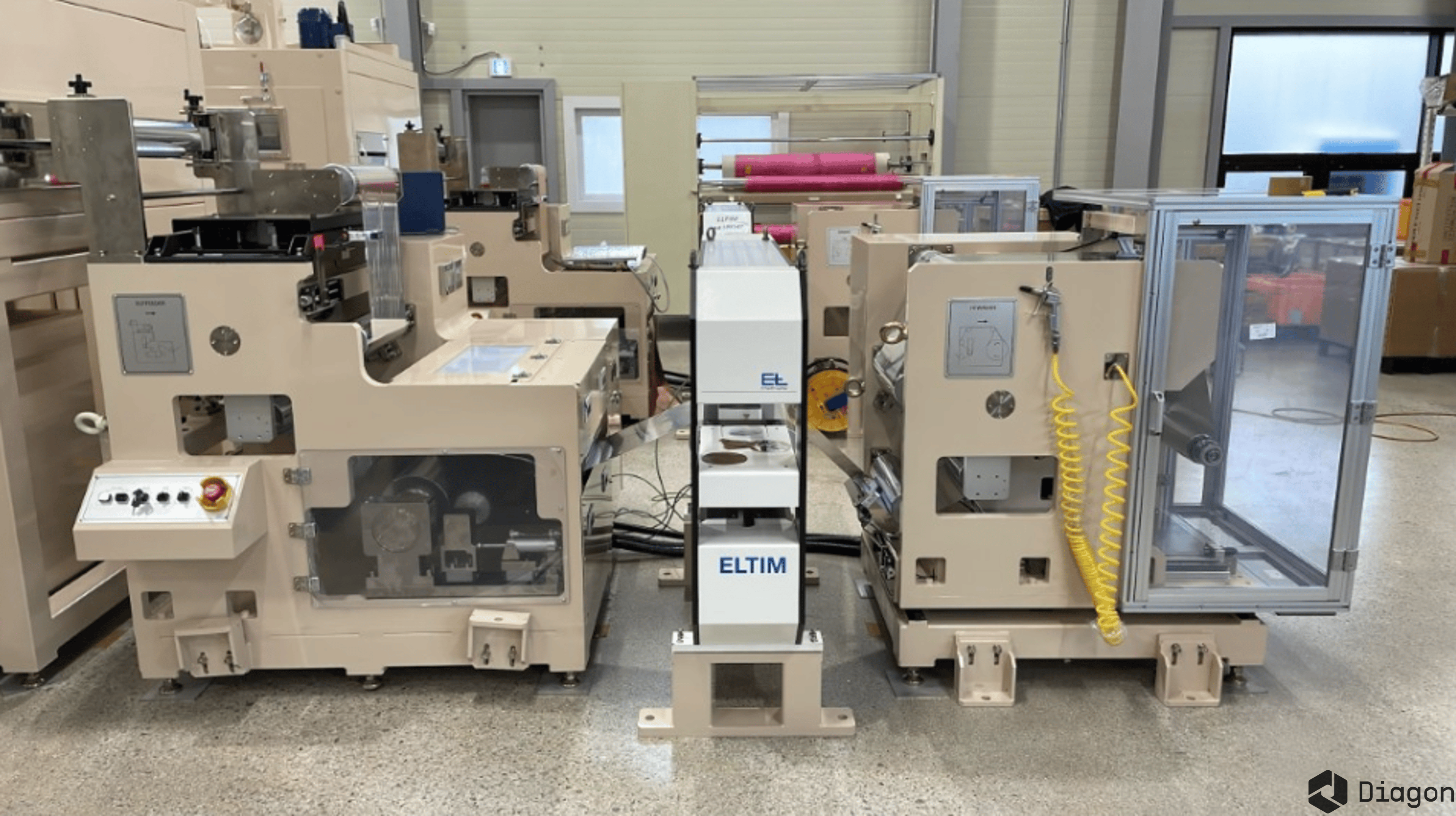

• Roll-to-roll web handling with air shaft lock winding system accommodating rolls up to 500mm diameter and 120kg weight
• Validated for water-based and NMP-based graphite anode slurries at 40% solids content

Comprehensive technical documentation and equipment layout drawings available upon request.

Additional Documentation (NDA Required)

• Detailed Technical Specifications
• Equipment Layout Drawings

Key Technical Specifications
