The MSK-AFA-E400-UL is a CE Certified and UL inspection ready automatic roll to roll transfer coating system designed for pilot-scale production of battery electrodes with precision coating capabilities and integrated drying functionality.

Key Features

• Transfer coating method for superior density and uniformity in electrode production
• Maximum coating speed of 4 meters per minute for efficient pilot-scale operations
• 400mm maximum coating width accommodating various electrode designs
• High-precision thickness control of ±3μm (±5μm at edges) for consistent quality

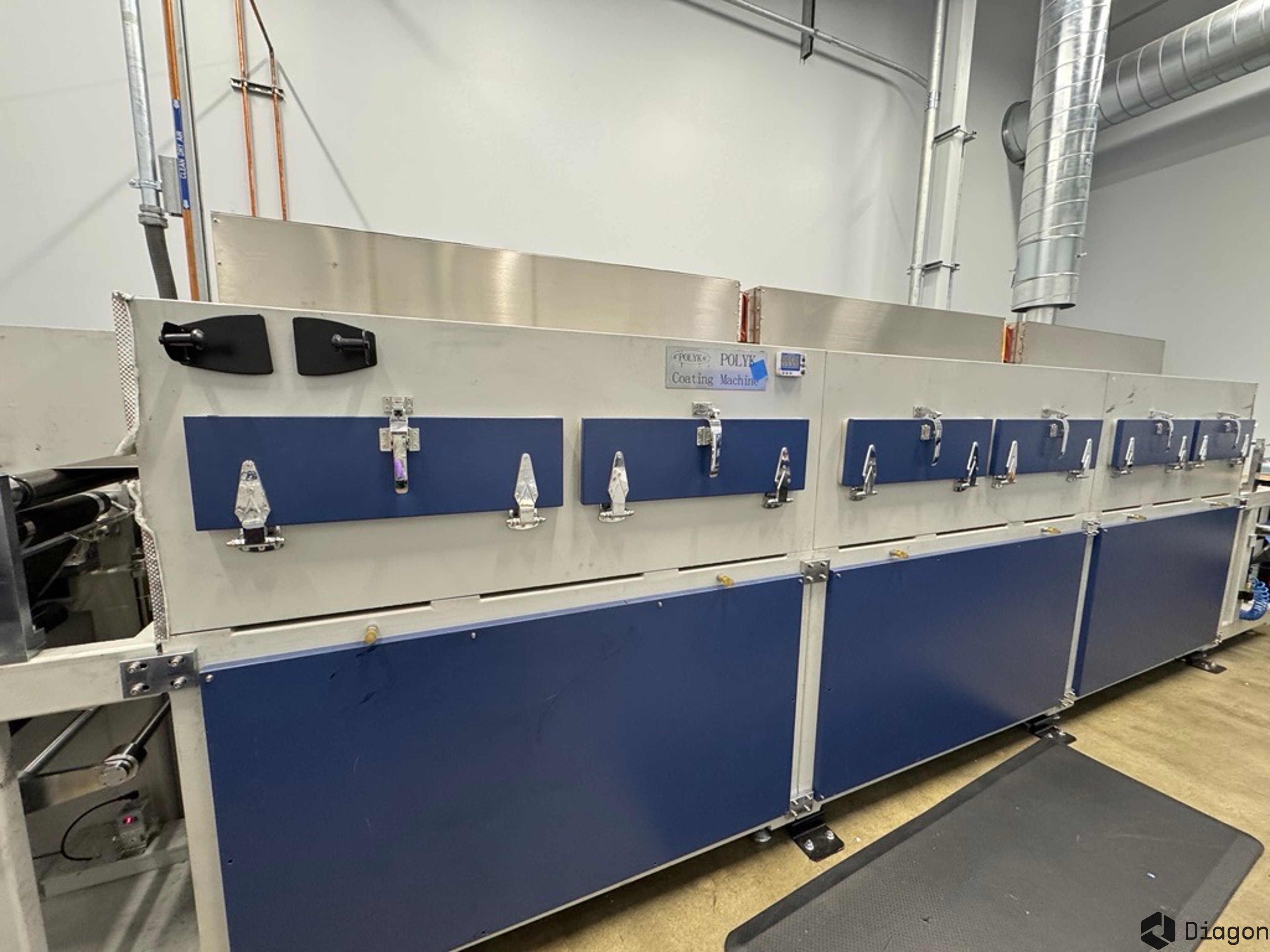

• Three-zone heating system with 4.5 meter total length for thorough drying
• Temperature control accuracy of ±1°C for precise process management

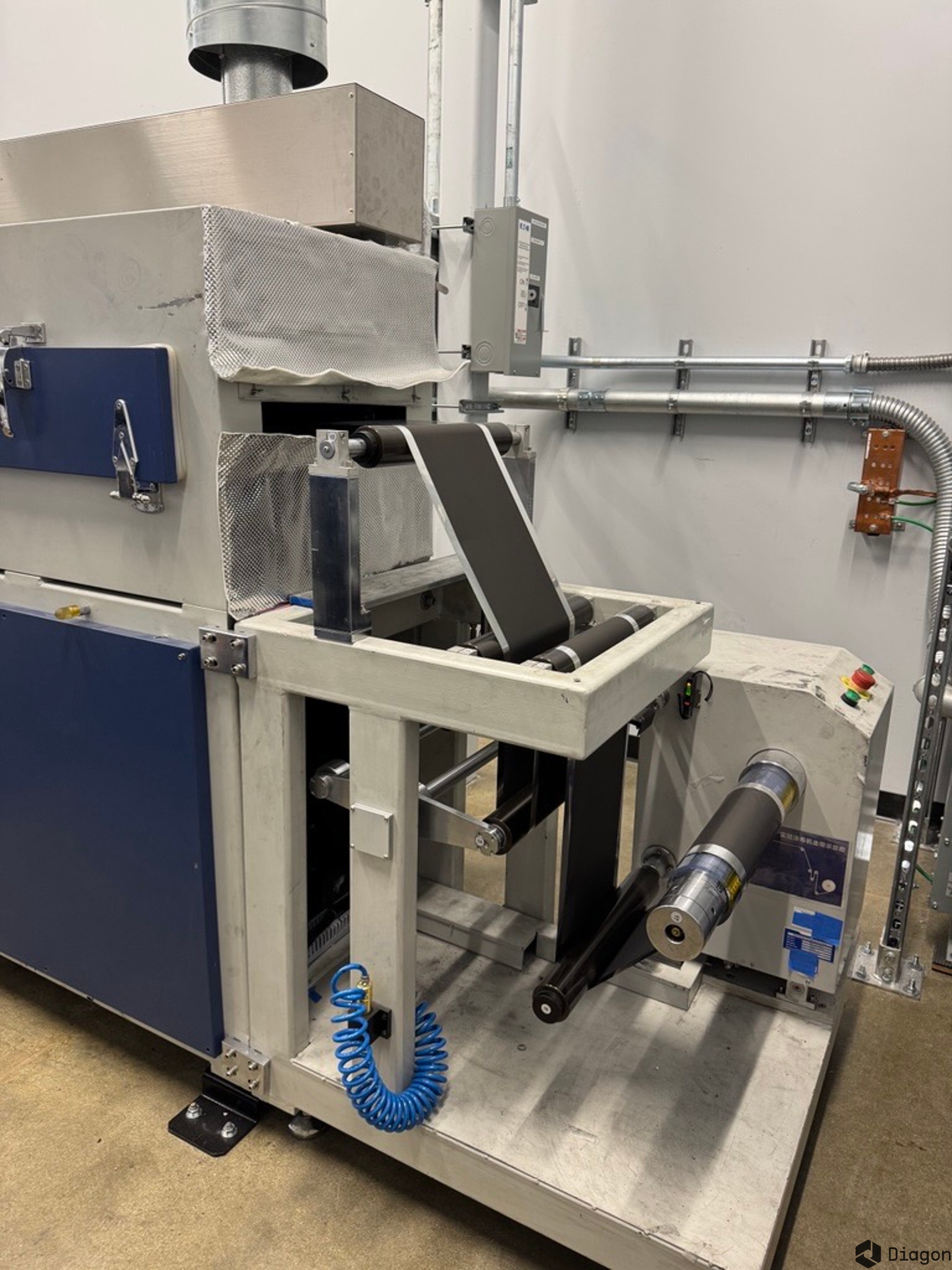

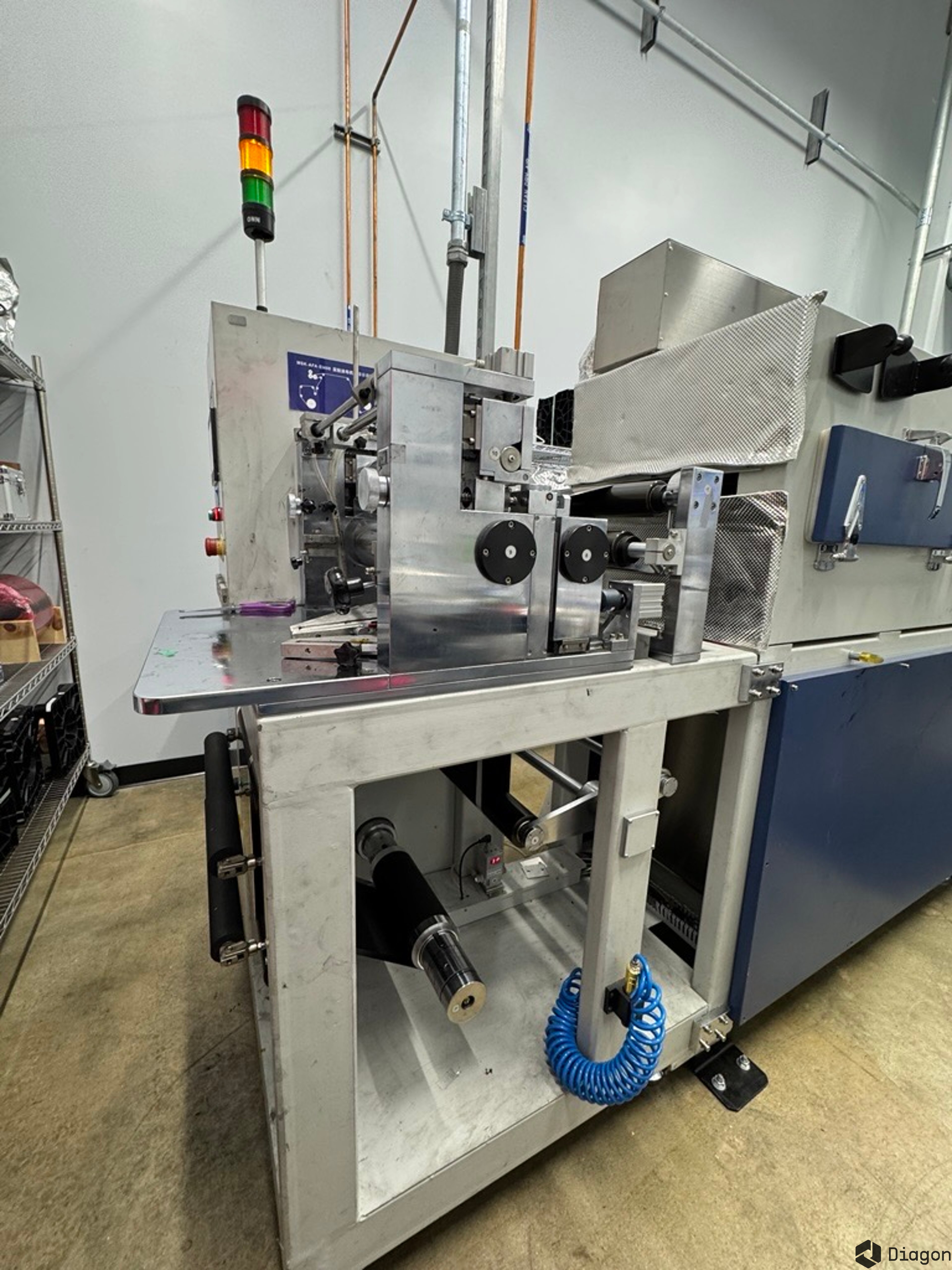

• Integrated functions including foil unwinding, slurry feeding, coating, baking, and rewinding

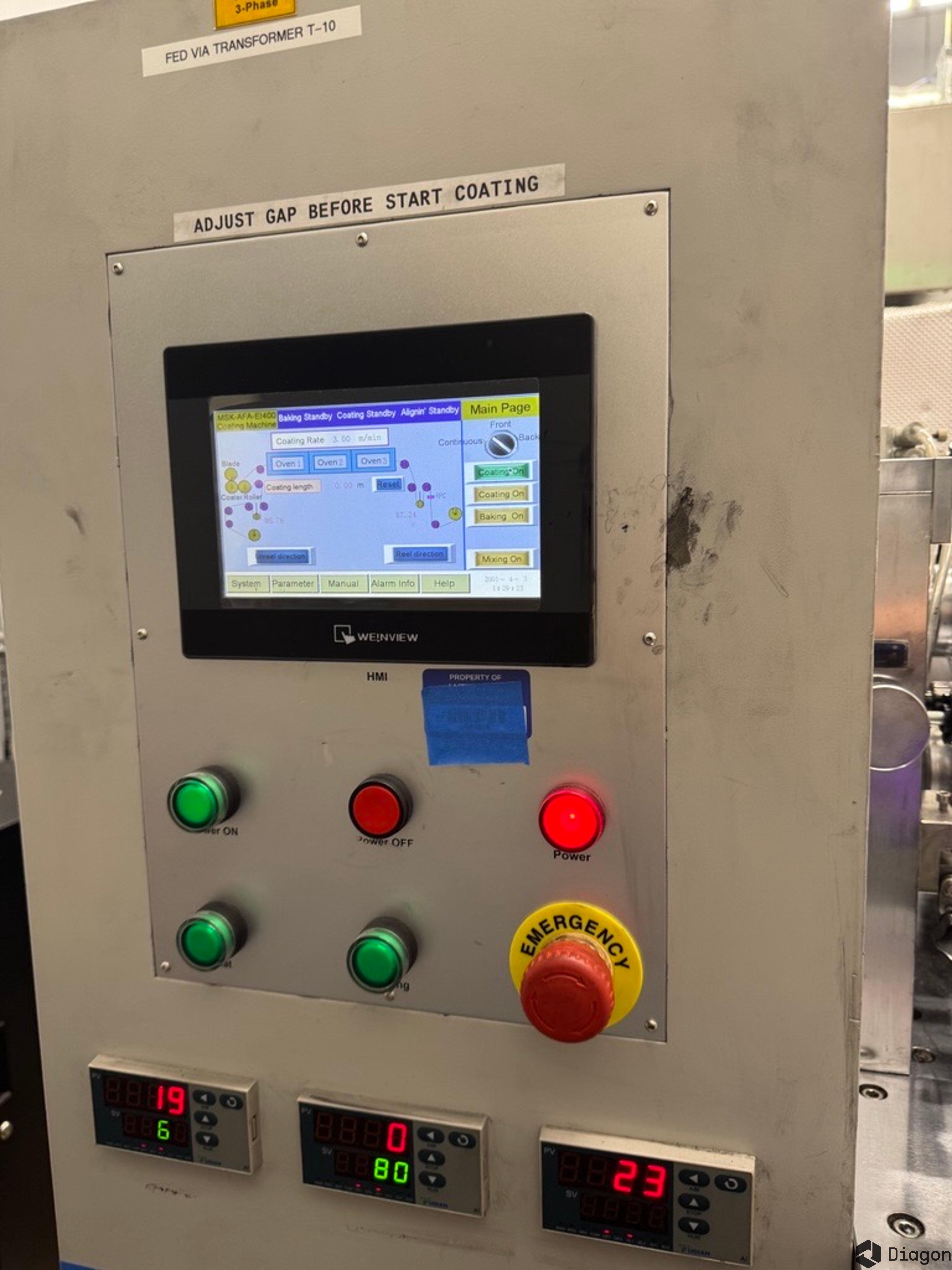

• Touch screen operation interface for user-friendly control and monitoring
• Stainless steel 316 moving rod for continuous slurry stirring

Technical Specifications

Performance Specifications

• Coating Method: Transfer coating
• Maximum Coating Width: 400mm
• Coating Speed: Maximum 4 meters/minute
• Thickness Precision: ±3μm (±5μm at edges)
• Maximum Coating Length: Approximately 600 meters per run (for 10μm foil with 100μm coating)

Heating System

• Maximum Drying Temperature: 150°C
• Temperature Accuracy: ±1°C
• Heating Zone Length: 4.5 meters (3 zones, 1.5 meters per zone)

Mechanical Specifications

• Reeling/Unreeling Shaft: 75mm (ID)
• Maximum Reeling/Unreeling Diameter: 250mm (OD)
• Slurry Stirring: SS316 Moving Rod

Electrical Specifications

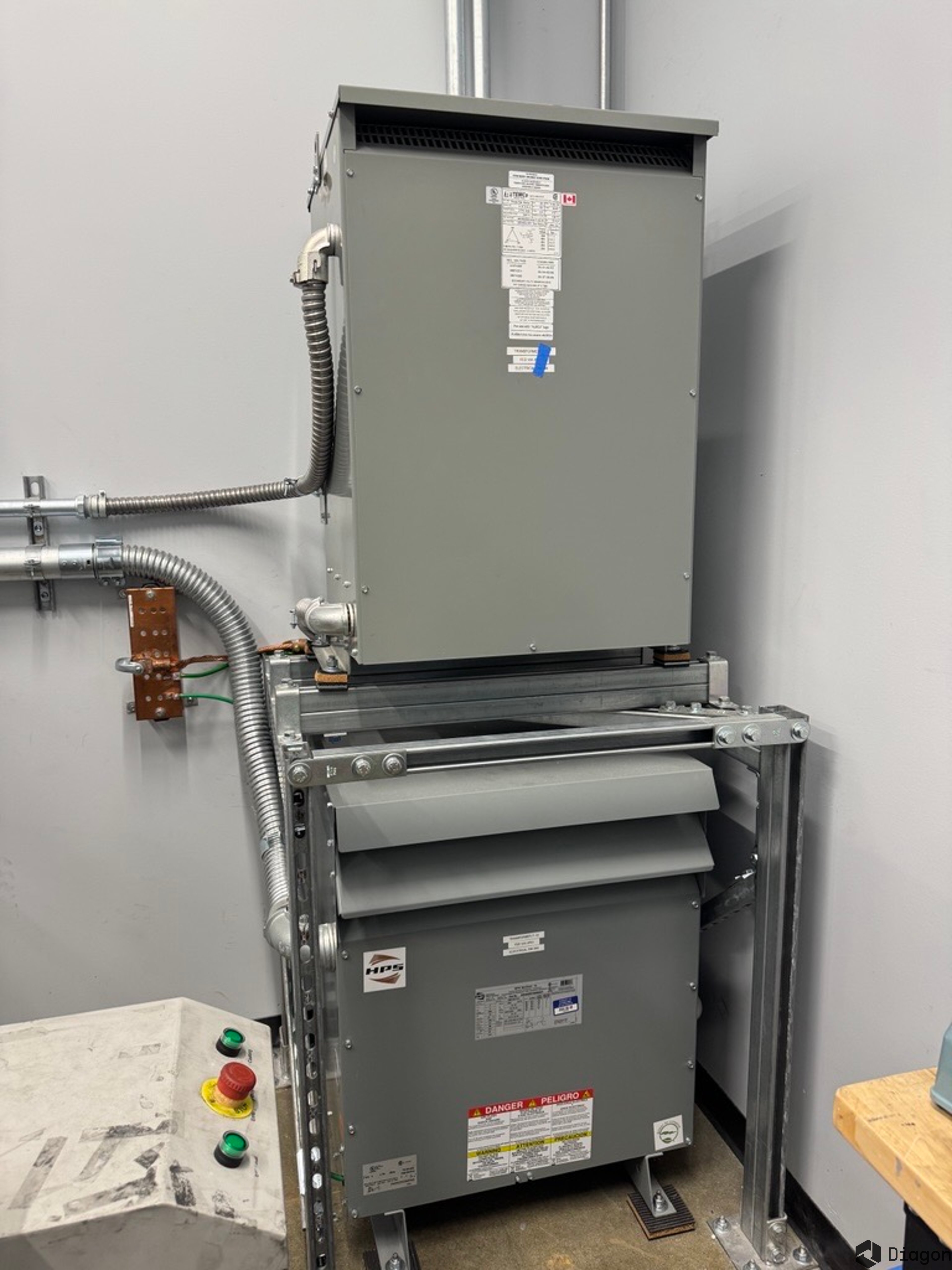

• Working Voltage: 380V +/- 10% 50/60Hz, and includes transformers from 220V to 480V and 480V to 380V
• Maximum Power Consumption: 30 KW (approximately 9 kW per heating chamber)

Utility Requirements

• Compressed Air: 0.5-0.8 MPa (Air compressor not included)

Compliance

• CE Certified
• All electric components (>24V) are UL/MET/CSA certified
• NRTL or CSA certification available upon request at extra cost
