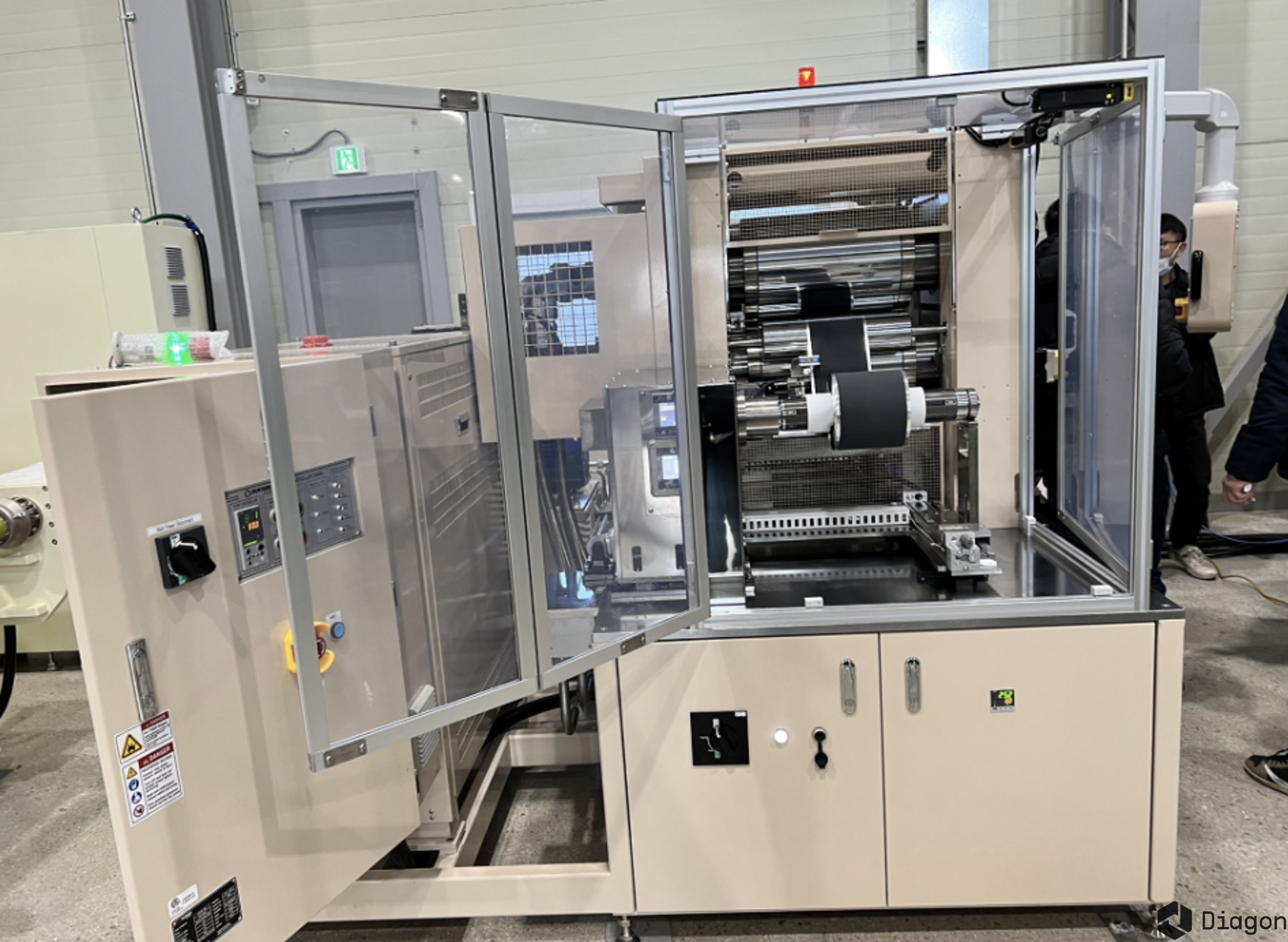

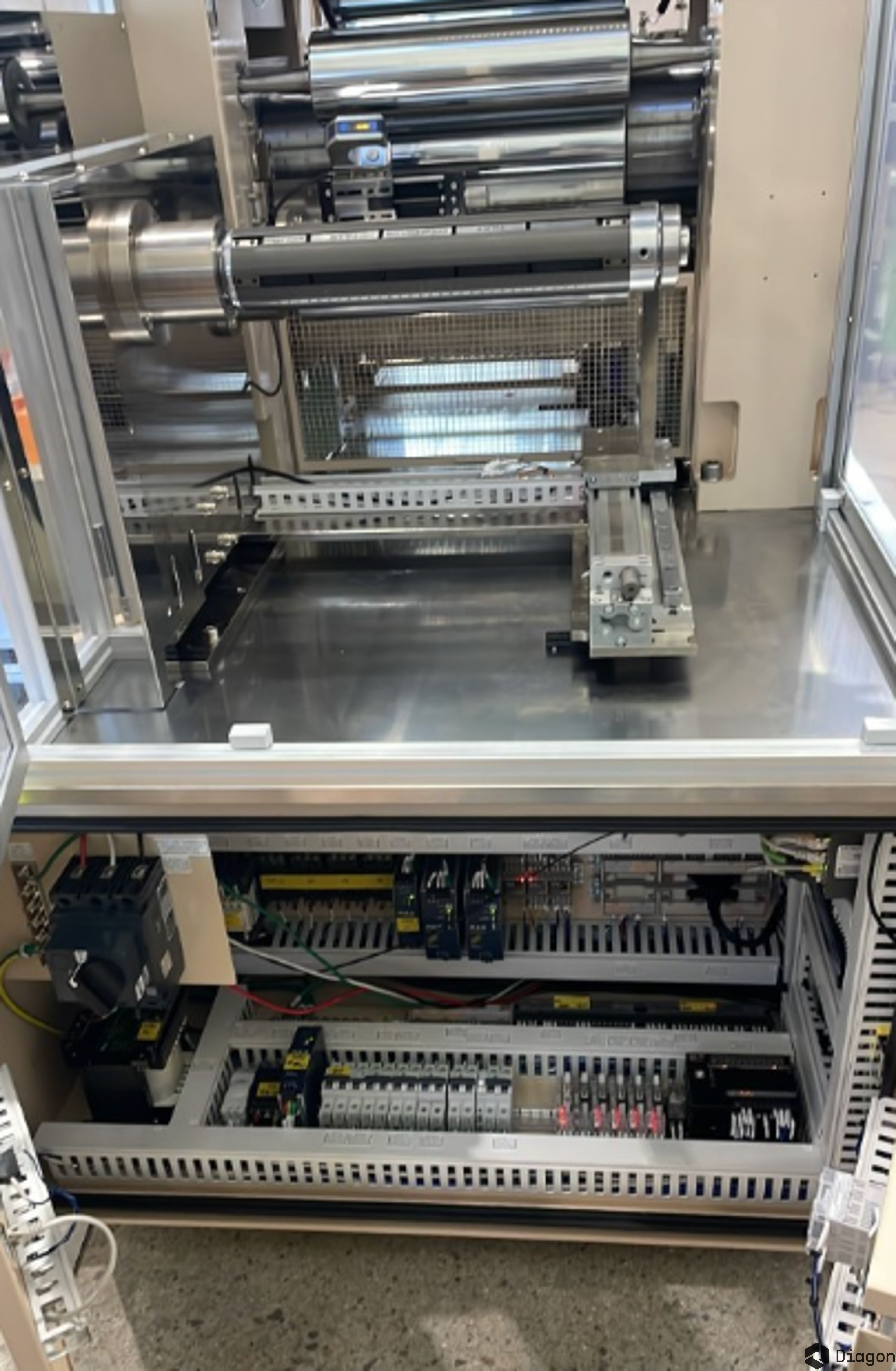

Dual Calender System features two integrated calender units, each with two-roll horizontal hydraulic pressing capability for cathode and anode electrode processing.

Key Features

• Two-roll horizontal pressing configuration with hot roll capability up to 150°C for optimal electrode calendering
• Precision-engineered Ø300mm pressure rolls with ±0.002 straightness and RA 0.1 surface finish for superior electrode quality
• Advanced hydraulic cylinder pressure system with servo motor control delivering 2.0 ton/cm line pressure
• Manual thickness measurement system maintaining tight ±1.5 μm deviation tolerance for consistent electrode specifications
• Mitsubishi PLC control system with UL certification (508A, NFPA79) for reliable operation and safety compliance
• Integrated manual unwinder/rewinder with 3" air shaft and cart-based roll loading for efficient material handling
• 400mm maximum web width processing capability with 250N tension control for precise material management

Technical Specifications

• Overall Dimensions: 1,850 × 1,800 × 2,000 mm
• Equipment Weight: 5 tons
• Maximum Web Width: 400 mm
• Roll Diameter: Ø300 mm
• Line Pressure: 2.0 ton/cm
• Maximum Temperature: 150°C (hot roll)
• Machine Speed: 10 m/min maximum
• Working Speed: 2-10 m/min
• Thickness Deviation: ±1.5 μm
• Power Consumption: 40 kW maximum
• Roll Straightness: ±0.002
• Surface Roughness: RA 0.1
• Power Requirements: AC 380V, 3-phase, 50Hz
• Compressed Air: 0.5 MPa required
• Core Size & Weight: 3" maximum, W500mm & Ø500mm, 120kg limit
