Calendering Thickness Measurement SystemAvailable
Save
Share
Honeywell
USA
Condition: New
Scale: Production
Type: Calendering Machine
Status: Ready-to-Ship
Ships From: South Korea
Product Description

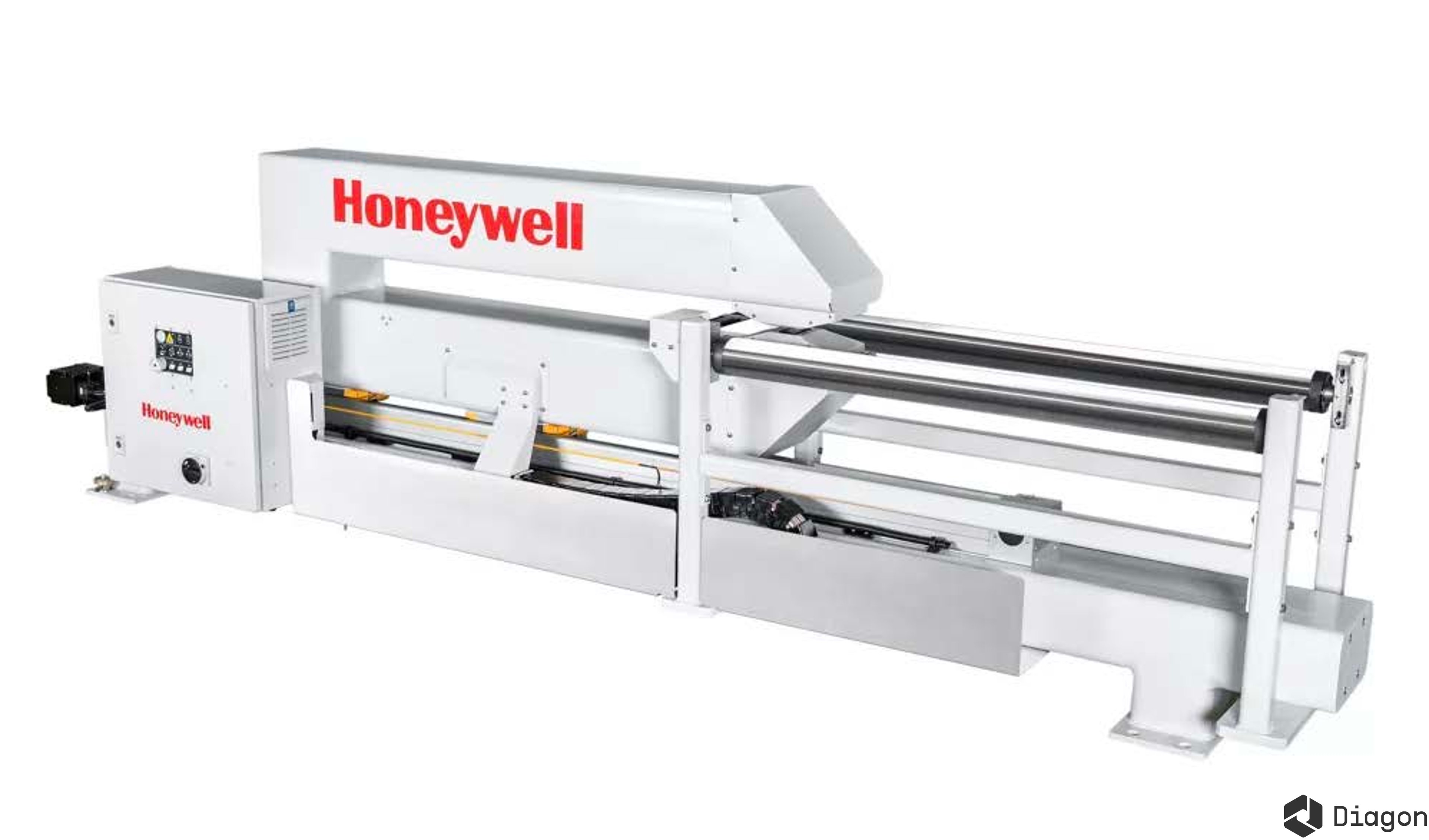

6056-02 LIB CAL SCANNER-1000MM delivers high-precision optical measurement capability for lithium-ion battery electrode manufacturing with real-time thickness monitoring across 1000 mm sheet widths.
Key Features

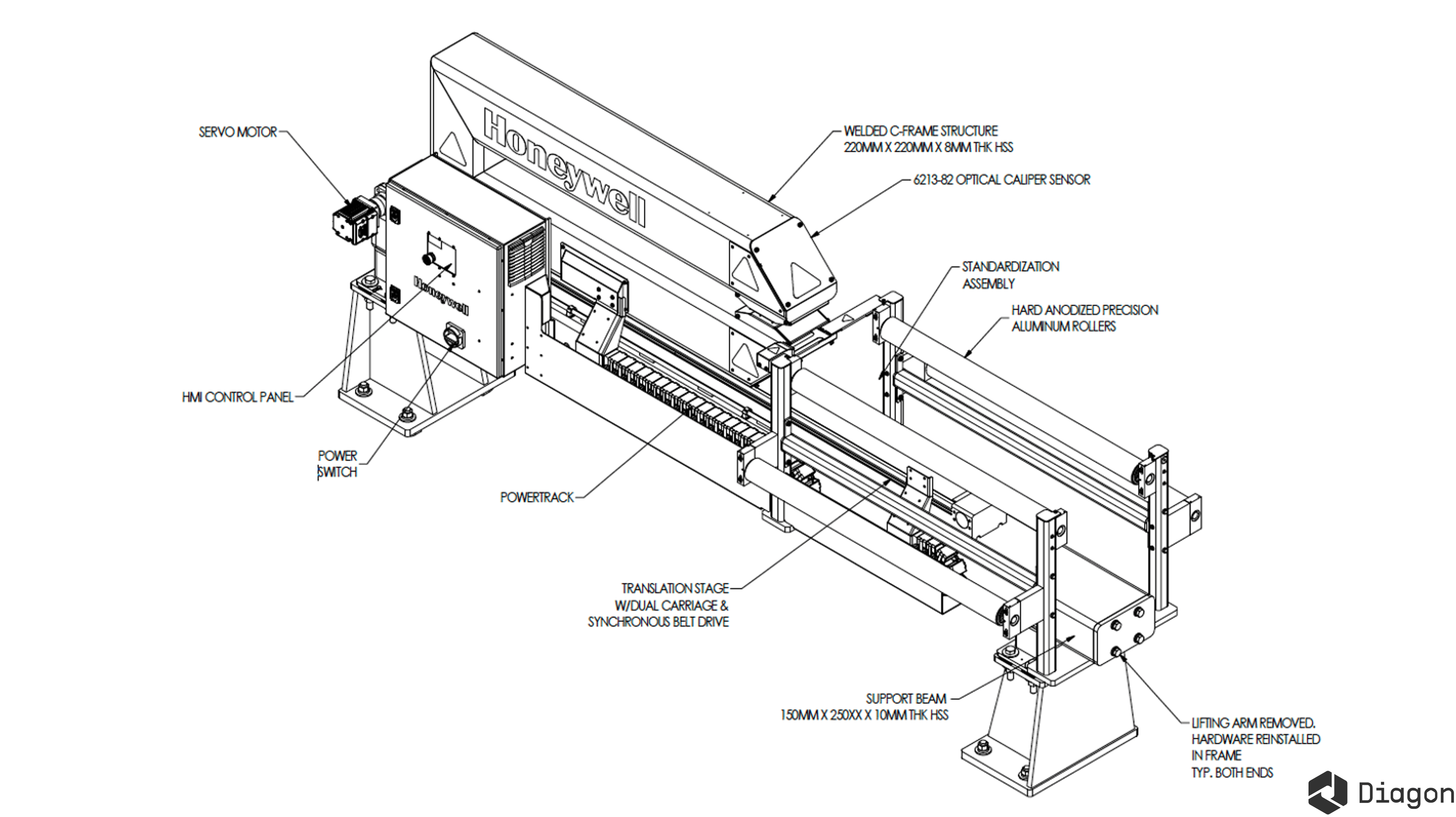

- 6213-82 optical caliper sensor system providing high-resolution thickness measurements for quality control applications
- Translation stage with dual carriage and synchronous belt drive enabling scan speeds from 50 to 300 mm/s
- Closed-loop control capability when integrated with calendering stack PLC systems
- Hard anodized precision aluminum rollers with vertical adjustment capability (±3.5 mm) for optimal material handling
- Welded C-frame structure (220 mm × 220 mm × 8 mm THK HSS) providing robust stability during high-precision scanning operations
- Integrated HMI control panel with comprehensive system interface
- Standardization assembly for accurate calibration and measurement traceability
- Bidirectional sheet flow capability for flexible integration into production processes
System is designed for seamless integration into battery manufacturing facilities with comprehensive documentation available upon request.
What's Included
- Optical caliper scanner with 1000mm measurement width
- Precision measurement sensor system with servo-driven carriage
- HMI control panel with interface software

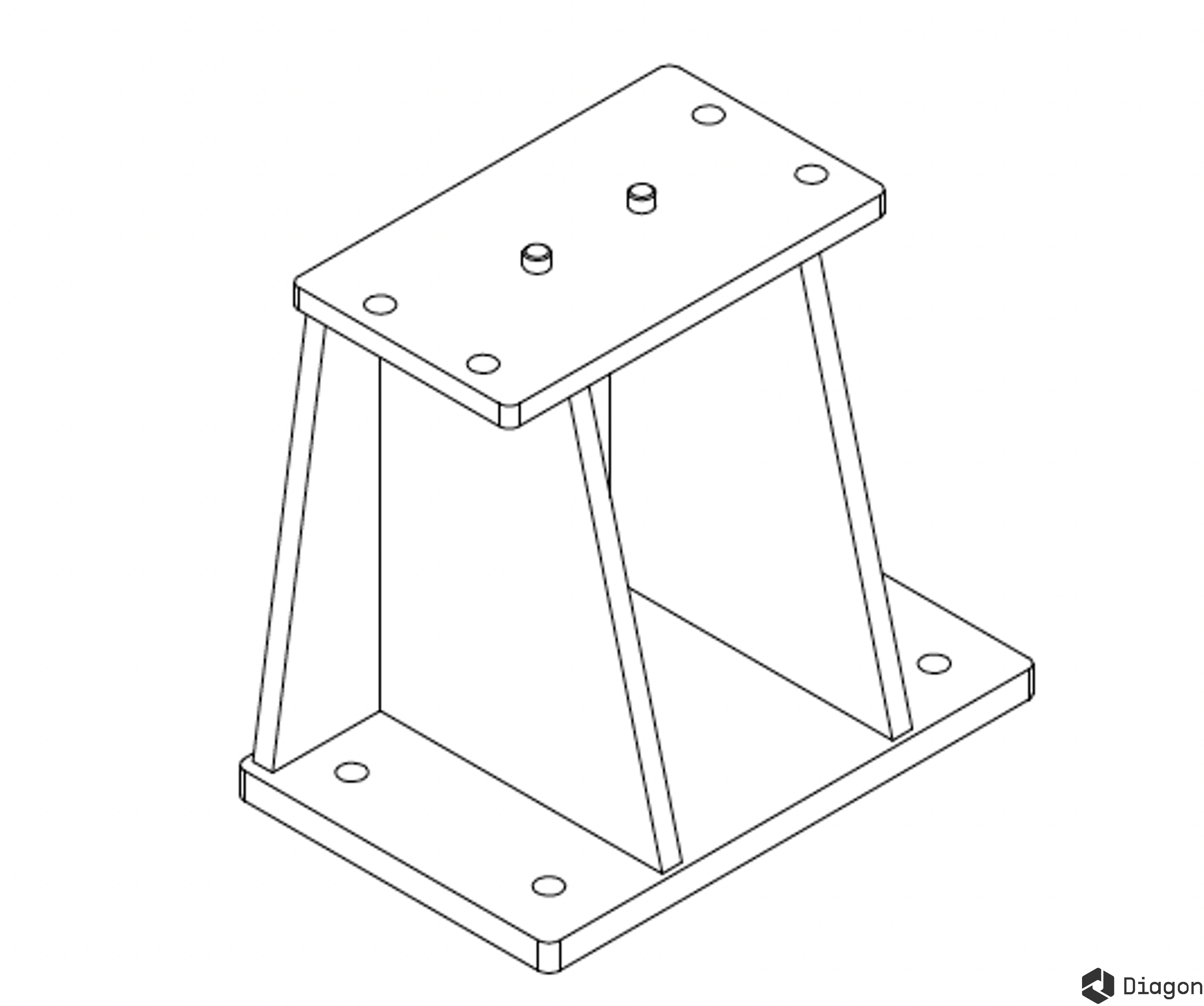

- 2x custom mounting pedestals to align foil with roller entry and scanner head
- A new custom mounting solution can be built, if fitment is an issue for specific project requirements
Additional Documentation (NDA Required)
- Detailed Technical Specifications
Key Technical Specifications
Maximum Sheet Width | 1000 mm | |
Measurement Range | 5 - 500 μm | |
Measurement Resolution | 0.1 μm | |
Measurement Gap | 10 mm | |
Measurement Spot Size | <1 mm | |
Repeatability (2σ) | <0.60 μm | |
Scan Speed Range | 50 - 300 mm/s [2 - 12 in/s] | |
Scan Stroke Length | 1325 mm | |
Throat to Sensor Distance | 1220 mm | |
Instrument Air Requirements | 2.7 - 4.1 bar [40 - 60 psi], 115 L/min [4.0 CFM] | |
Dry Air Consumption | 0.6 m³/h | |
Electrical Power | ~1000 W AC | |
Maximum Ambient Temperature | 50°C [122°F] | |
Power Requirements | 120-240 VAC, 15A, 50/60 Hz, Single Phase | |
System Weight (with pedestals) | 760 kg [1,672 lbs] | |
Overall Dimensions (L×W×H) | 3224.9 mm × 867.0 mm × 1033.6 mm |
Output Battery Specs
Form Factors
Prismatic
Pouch
Cylindrical
Chemical Composition
NCA: Nickel Cobalt Aluminum
NMC/NCM: Nickel Manganese Cobalt
LFP: Lithium Iron Phosphate
Machine Requirements
Control Standards
Honeywell
