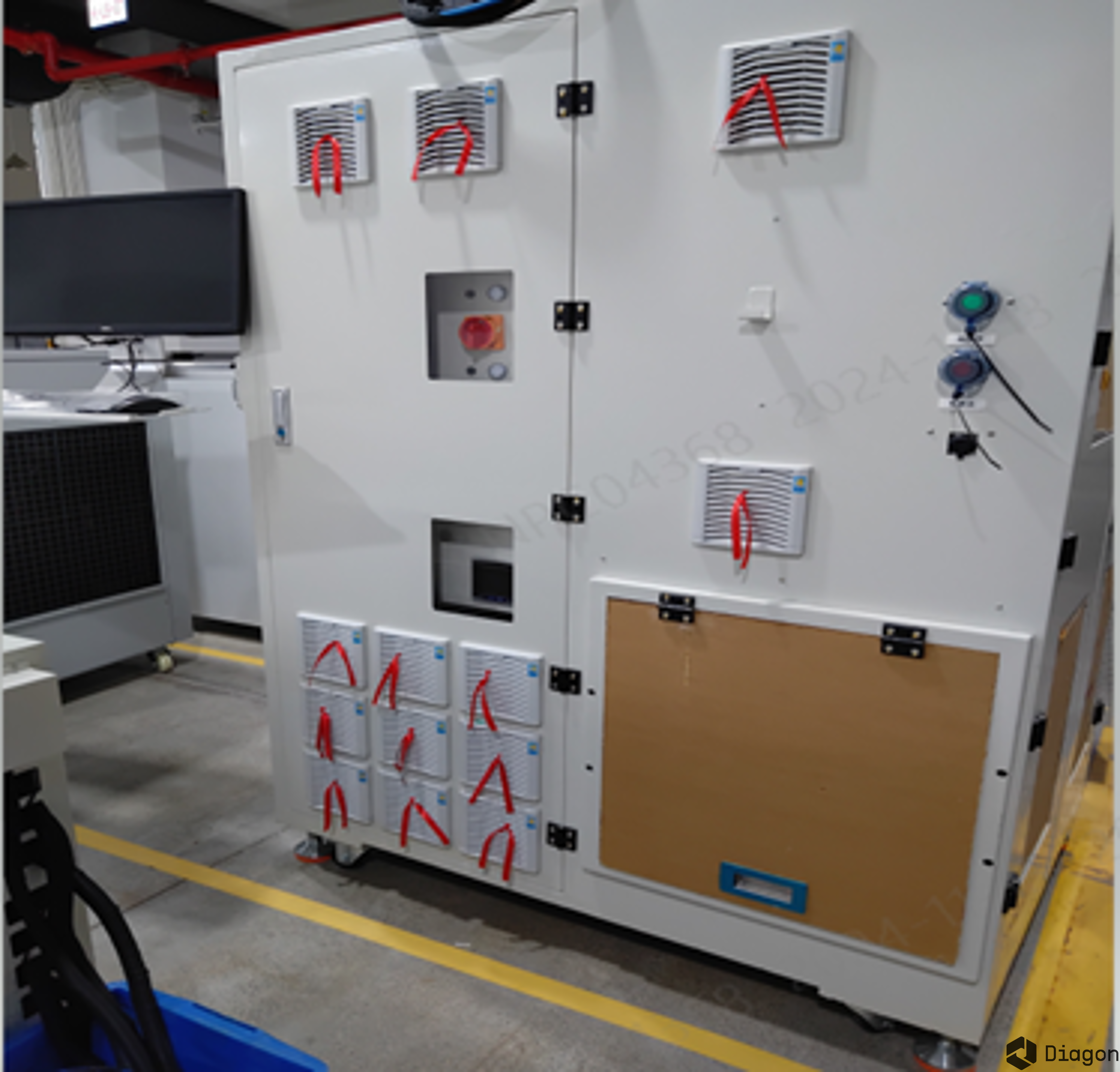

The Formation and Capacity Test Power Supply Cabinet is an advanced solution specifically engineered for battery formation production environments. This high-precision equipment offers exceptional control capabilities and measurement accuracy across multiple channels, making it ideal for battery manufacturing processes that demand reliability and precision.

Key Features

• Multi-channel fault phase flow sharing control technology: Ensures optimal performance even when individual channels experience issues, maintaining production consistency
• PWM control technology: Delivers precise power regulation for accurate battery formation results
• Battery pack bypass control system: Allows for selective channel operation, improving efficiency and flexibility
• Bypass module independent channel control: Provides granular control over each channel for customized testing protocols
• Parallel power supply current sharing: Distributes current evenly across channels for consistent battery performance

Key Technical Specifications

Compatibility and Standards

• Electrical Certification: GB. Optional conversion of this equipment to UL/CE standards - contact Diagon for details
• Control Systems: Standard Omron series. Optional control system migration (Siemens, Rockwell/Allen-Bradley, others) to match your existing infrastructure - contact Diagon for compatibility assessment

Serial Number: 11-60004
