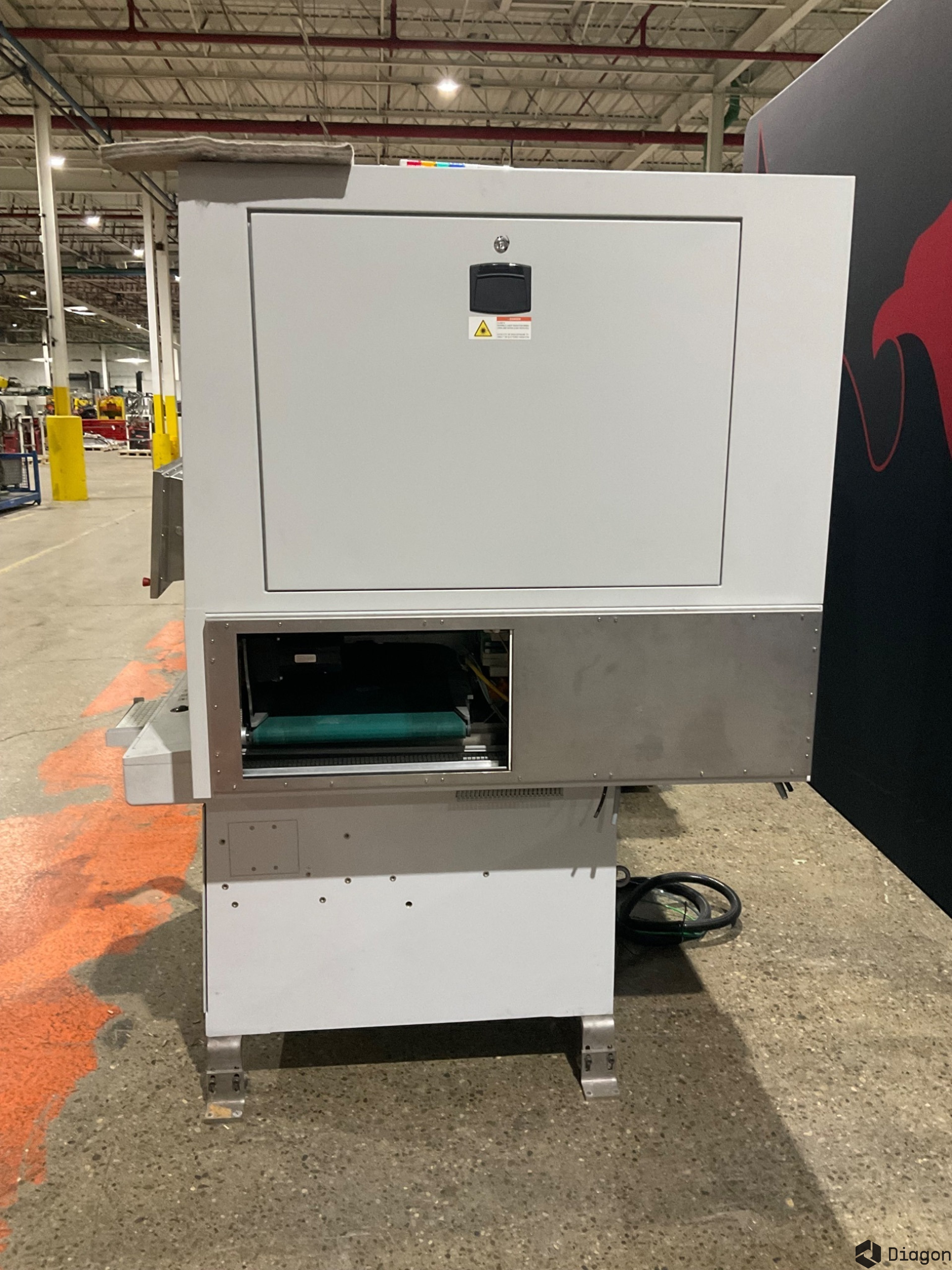

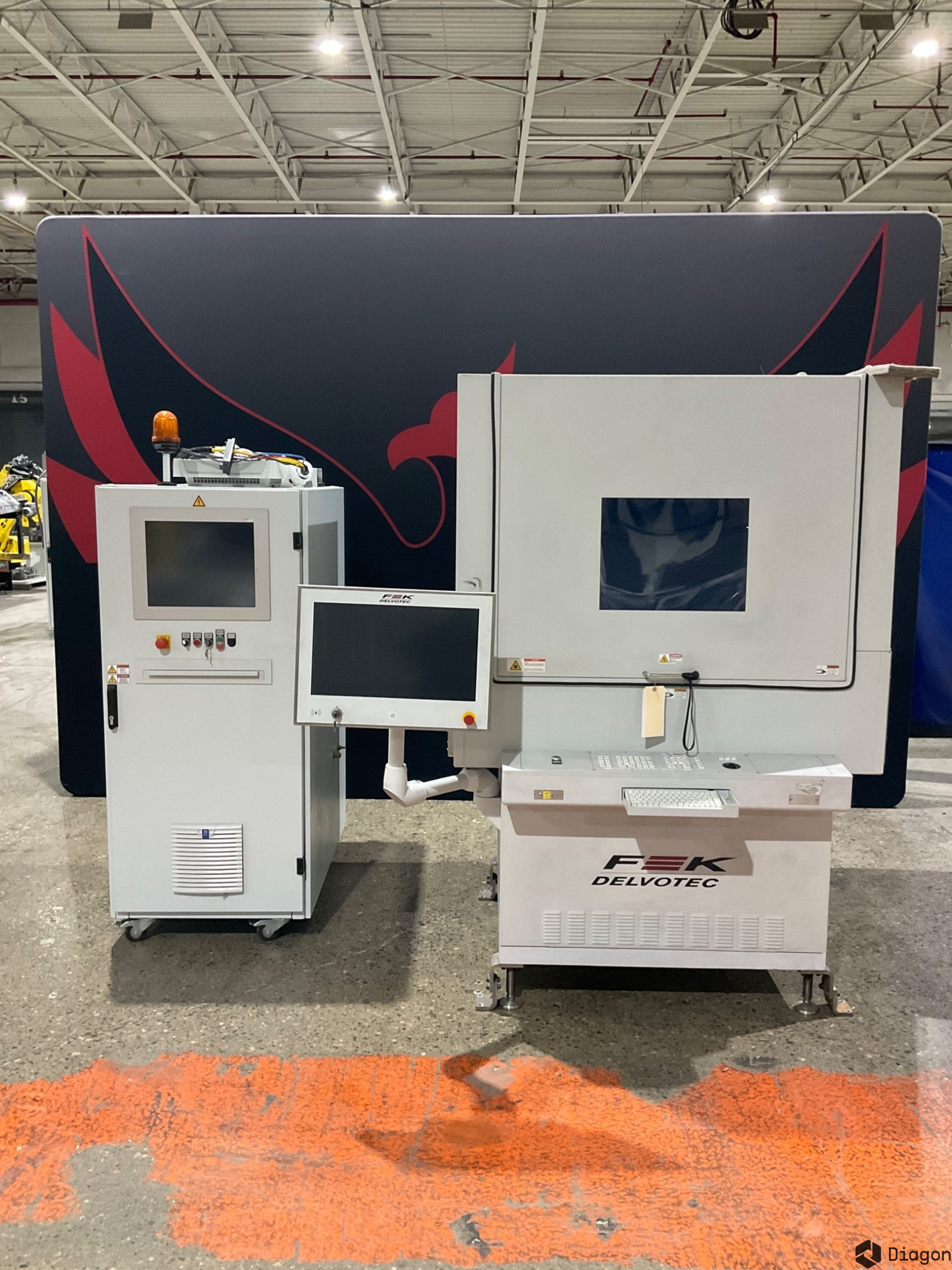

Laser Bonder - Welding and Wire Bonding SystemAvailable
Save
Share
F&K Delvotec
Germany
Condition: Used - Excellent
Scale: Production
Type: Assembly Equipment
Status: Ready-to-Ship
Ships From: United States
Product Description
F&K DELVOTEC M17LSB Laser Bonder combines precision laser welding with wire bonding technology for advanced microelectronics manufacturing, power modules, and battery assembly applications where conventional ultrasonic bonding reaches its technological limits.
Key Features
- Dual-process capability combining laser welding and wire bonding technologies in a single machine without conversion
- Low bonding force system using laser energy to weld aluminum, copper, or nickel ribbons with minimal surface quality requirements
- Advanced touch-down sensor system with image recognition allowing for XYZ position tolerances compared to conventional laser welding
- Large work envelope supporting components up to 300 x 300 mm for diverse production requirements
- Adjustable pulse energy and duration with high-precision microsecond control for optimized welding performance
- Automated fiducial recognition and calibration for rapid setup and consistent production quality
- Greater current-carrying capacity due to larger conductor cross-sections than possible with ultrasonic bonding
- Proven performance across multiple applications including power modules, battery assembly, OPTO/RF/HF components, BMS systems, PCB manufacturing, and automotive cell production
- Battery applications: Terminal tab welding, battery pack interconnects, busbar connections
System is engineered for seamless integration into both research and production environments, with comprehensive documentation available for implementation planning.
Additional Documentation (NDA Required)
- Detailed Technical Specifications
- Process Parameter Guidelines
- Integration Requirements
Key Technical Specifications
Laser Type | Pulsed laser (DPSS or fiber laser) | |
Wavelengths Supported | 1064 nm standard (near-infrared) | |
Optional Wavelengths | 532 nm (green), 355 nm (ultraviolet) | |
Laser Power | Up to 100 W (configuration dependent) | |
Pulse Duration | Microsecond range | |
Bonding Area (X/Y) | Up to 300 mm x 300 mm | |
Z-Axis Clearance | Approx. 80 mm (configurable) | |
Processing Speed | 1 to 3 bonds per second | |
Dwell Time | 100-300 ms per bond | |
Material Compatibility | Aluminum, copper, nickel ribbons and foils | |
Surface Requirements | Tolerant of surface variations and minimal contamination | |
Dimensions (Unit) | 80 x 77 x 82 cm | |
Dimensions (Controls) | 50 x 31 x 80 cm | |
Machine Weight | 999 lbs |
Output Battery Specs
Form Factors
Prismatic
Pouch
Cylindrical
